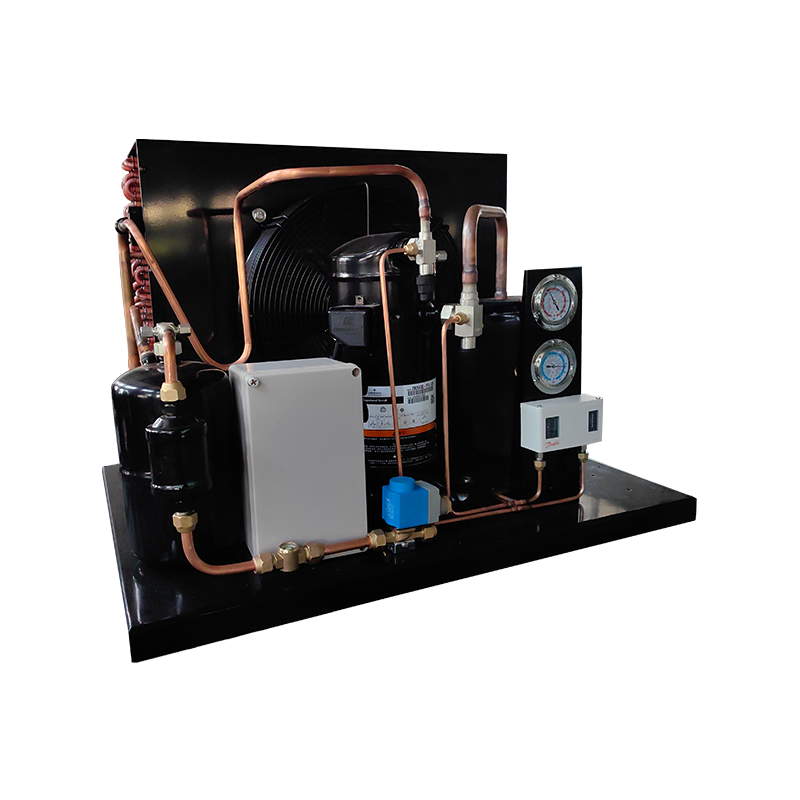

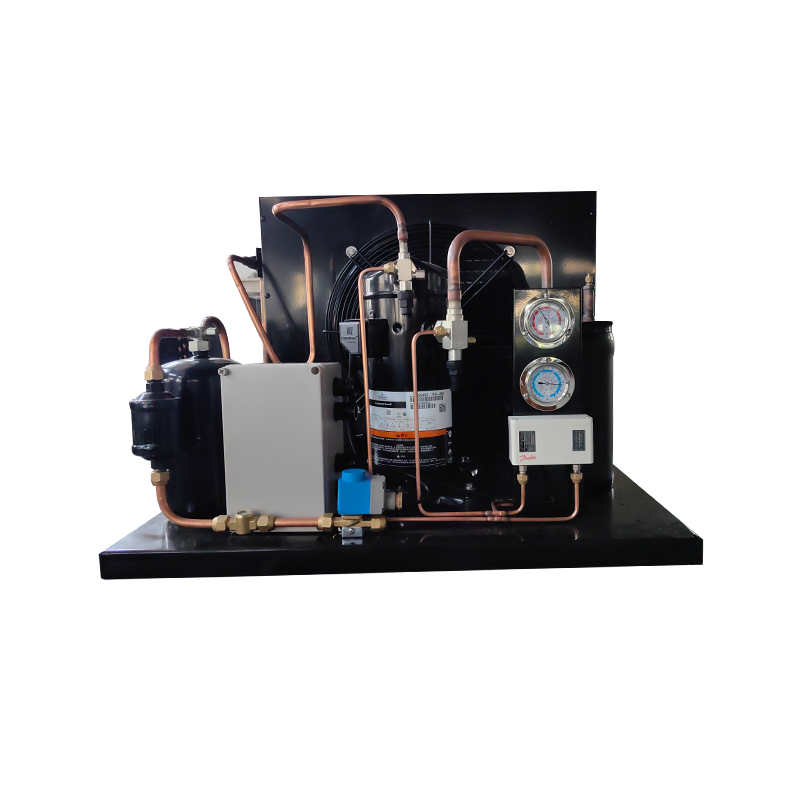

Copeland Scroll Compressor Open Type Conndensing Unit

Feature

1. Using the internationally renowned brand Copeland Scroll compressor, the product is efficient and reliable.

2. Using copper tubes and aluminum fin configuration, it has efficient heat exchange performance.

3. Low noise and high efficiency axial flow fan motor.

4. Use world-renowned brand refrigeration accessories to ensure the service life and reliability of the system.

5. Widely used.

CONTACT Download Catalog

Prev: Secop Compressor Series

Next: CDI series Chinese scroll compressor open pack units

Technical specification
About us
Get an inquiry

Air cooled Middle temperature units

Model			CDG15	CDG22	CDG33	CDG43	CDG48	CDG55
Temperature(℃)			-15℃ ~ +5 ℃
Refrigerant			R404A
Power supply			380V / 3P / 50Hz
Condenser	Fan Qty		1	1	2	2	2	2
	Voltage (V)		380	380	380	380	380	380
	Fan Dia. (mm)		1Xφ350	1Xφ400	2Xφ350	2Xφ400	2Xφ400	2Xφ400
Cooling Capacity & Input	Evap -5℃	Cap (W)	3820	5740	7840	9720	11450	13270
	Evap -5℃	Input (KW)	1.76	2.5	3.32	4.2	4.79	5.24
	Evap -10℃	Cap (W)	3070	4680	6370	7910	9310	11047
	Evap -10℃	Input (KW)	1.82	2.51	3.35	4.2	4.81	5.27
	Evap -15℃	Cap (W)	2430	3780	5120	6380	7510	9114
	Evap -15℃	Input (KW)	1.88	2.52	3.37	4.2	4.82	5.28
Pipe	Suction Pipe（mm）		19	19	19	19	19	19
Pipe	Liquid Pipe（mm）		10	10	12	12	12	12
Overall Dimension		L (mm)	780	780	1010	1120	1380	1380
		W (mm)	700	730	780	780	830	830
		H (mm)	750	780	720	880	860	910

Air cooled Low temperature units

Model			CDG15	CDG22	CDG28	CDG36	CDG43	CDG55
Temperature(℃)			-25℃ ~ -15 ℃
Refrigerant			R404A
Power supply			380V / 3P / 50Hz
Condenser	Fan Qty		1	1			2	2
	Voltage (V)		380	380	380	380	380	380
	Fan Dia. (mm)		1Xφ350	1Xφ400			2Xφ400	2Xφ400
Cooling Capacity & Input	Evap -20℃	Cap (W)	2330	3240	4120	5930	7230	8060
	Evap -20℃	Input (KW)	1.79	2.25	2.63	3.59	4.44	4.9
	Evap -25℃	Cap (W)	1880	2620	3340	4830	5910	6590
	Evap -25℃	Input (KW)	1.73	2.2	2.57	3.44	4.28	4.47
	Evap -30℃	Cap (W)	1500	2070	2610	3790	4780	5350
	Evap -30℃	Input (KW)	1.66	2.12	2.44	3.3	4.17	4.95
Pipe	Suction Pipe（mm）		19	19	19	19	19	19
Pipe	Liquid Pipe（mm）		10	10	10	10	10	10
Overall Dimension		L (mm)	780	780	1010	1120	1120	1380
		W (mm)	700	730	780	780	780	830
		H (mm)	750	780	720	880	880	910
