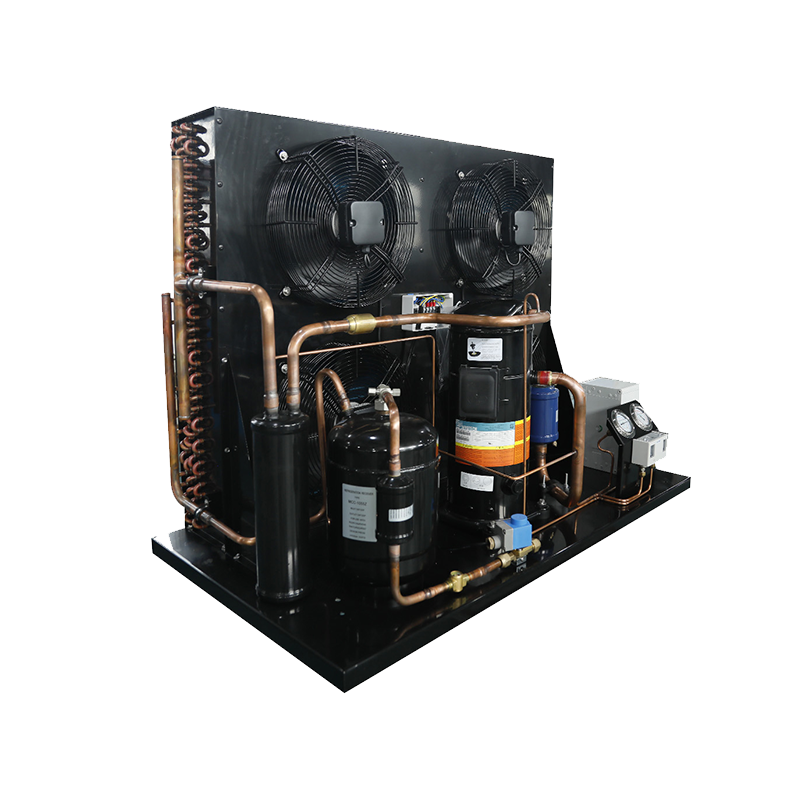

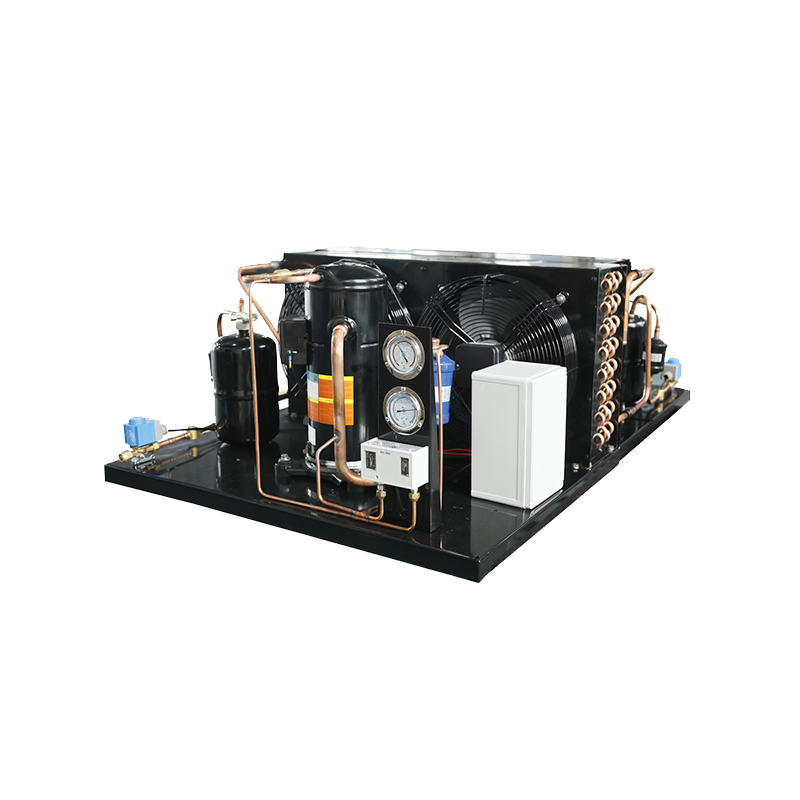

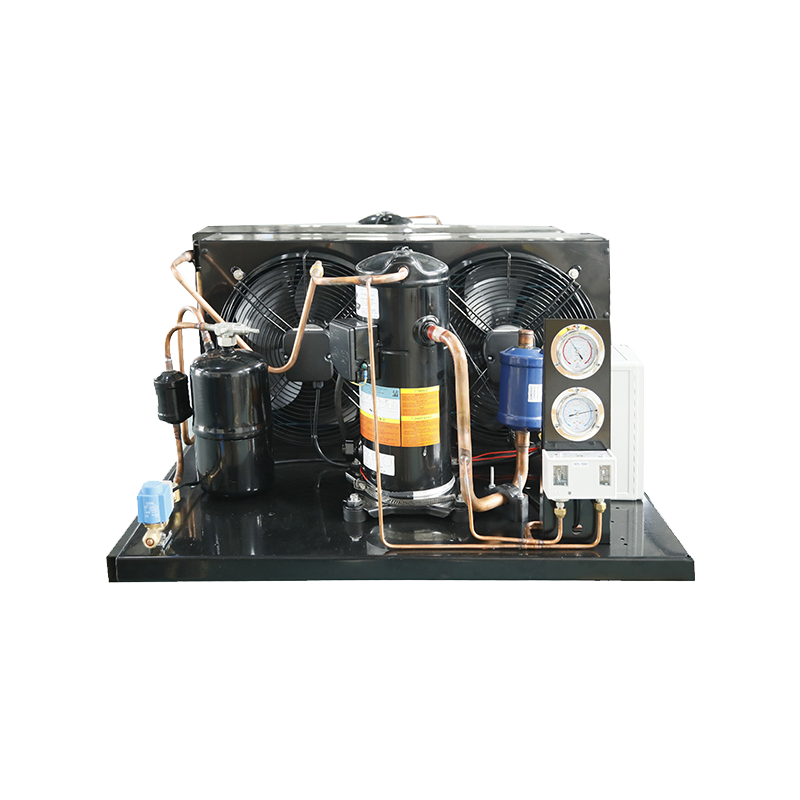

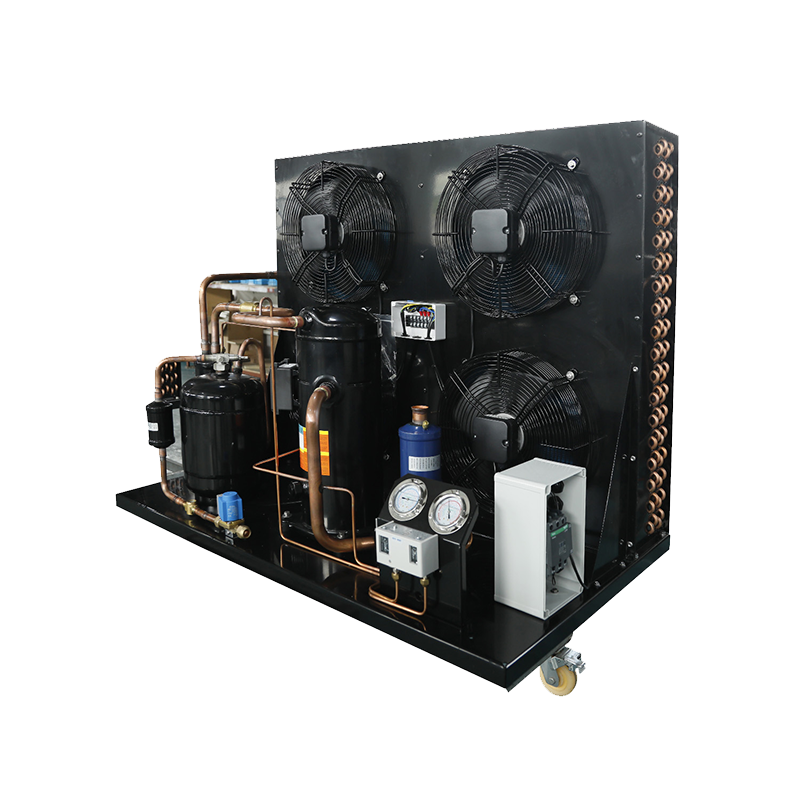

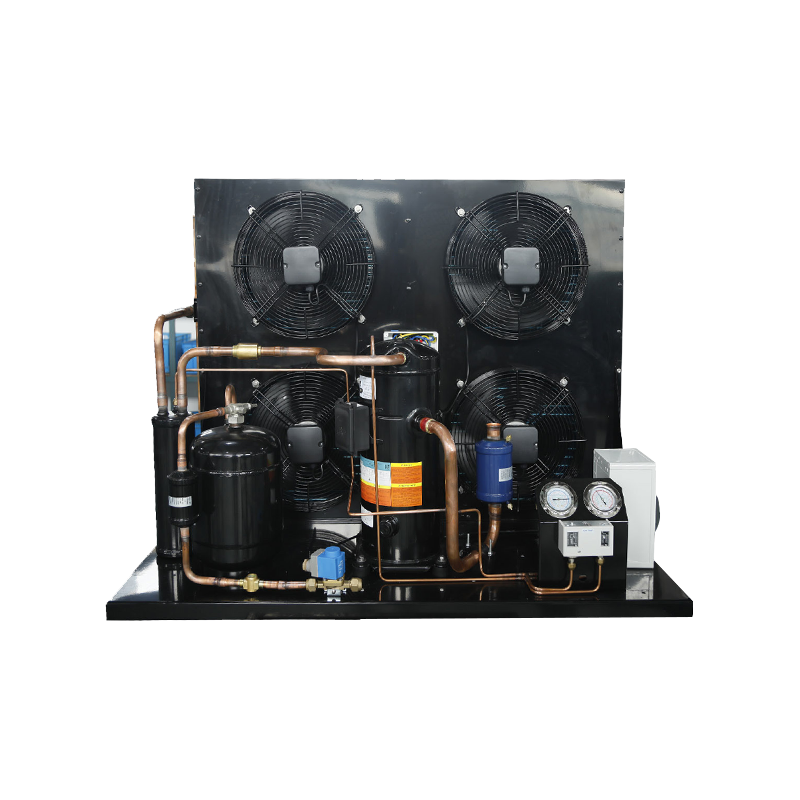

CDI series Chinese scroll compressor open pack units
  • CDI series Chinese scroll compressor open pack units
  • CDI series Chinese scroll compressor open pack units
  • CDI series Chinese scroll compressor open pack units
  • CDI series Chinese scroll compressor open pack units
  • CDI series Chinese scroll compressor open pack units

CDI series Chinese scroll compressor open pack units

Feature
Product Description
1. Use Invotech scroll compressor made in China, efficient, reliable and quality performance.
2. Using copper tubes and aluminum fin configuration, it has efficient heat exchange performance.
3. Low noise and high efficiency axial flow fan motor.
4. Use world-renowned brand refrigeration accessories to ensure the service life and reliability of the system.
5. Widely used.
CONTACT CATALOG PDF
  • Technical specification
  • About us
  • Get an inquiry
Air cooled Middle temperature units
Model CDI15 CDI22 CDI33 CDI43 CDI48 CDI55
Temperature(℃) -15℃ ~ +5 ℃
Refrigerant R404A
Power supply 380V / 3P / 50Hz
Condenser Fan Qty 1 1 2 2 2 2
Voltage (V) 380 380 380 380 380 380
Fan Dia. (mm) 1Xφ350 1Xφ400 2Xφ350 2Xφ400 2Xφ400 2Xφ400
Cooling Capacity & Input Evap -5℃ Cap (W) 3820 5740 7840 9720 11450 13270
Input (KW) 1.76 2.5 3.32 4.2 4.79 5.24
Evap -10℃ Cap (W) 3070 4680 6370 7910 9310 11047
Input (KW) 1.82 2.51 3.35 4.2 4.81 5.27
Evap -15℃ Cap (W) 2430 3780 5120 6380 7510 9114
Input (KW) 1.88 2.52 3.37 4.2 4.82 5.28
Pipe Suction Pipe（mm） 19 19 19 19 19 19
Liquid Pipe（mm） 10 10 12 12 12 12
Overall Dimension L (mm) 780 780 1010 1120 1380 1380
W (mm) 700 730 780 780 830 830
H (mm) 750 780 720 880 860 910

 Air cooled Low temperature units
Model CDI15 CDI22 CDI28 CDI36 CDI43 CDI55
Temperature(℃) -25℃ ~ -15 ℃
Refrigerant R404A
Power supply 380V / 3P / 50Hz
Condenser Fan Qty 1 1 2 2
Voltage (V) 380 380 380 380 380 380
Fan Dia. (mm) 1Xφ350 1Xφ400 2Xφ400 2Xφ400
Cooling Capacity & Input Evap -20℃ Cap (W) 2330 3240 4120 5930 7230 8060
Input (KW) 1.79 2.25 2.63 3.59 4.44 4.9
Evap -25℃ Cap (W) 1880 2620 3340 4830 5910 6590
Input (KW) 1.73 2.2 2.57 3.44 4.28 4.47
Evap -30℃ Cap (W) 1500 2070 2610 3790 4780 5350
Input (KW) 1.66 2.12 2.44 3.3 4.17 4.95
Pipe Suction Pipe（mm） 19 19 19 19 19 19
Liquid Pipe（mm） 10 10 10 10 10 10
Overall Dimension L (mm) 780 780 1010 1120 1120 1380
W (mm) 700 730 780 780 780 830
H (mm) 750 780 720 880 880 910
