Bitzer Compressor Open Type Condensing Units Supplier

Home / Product / Open Type Condensing Unit / Bitzer Compressor Open Type Condensing Units

Product Category

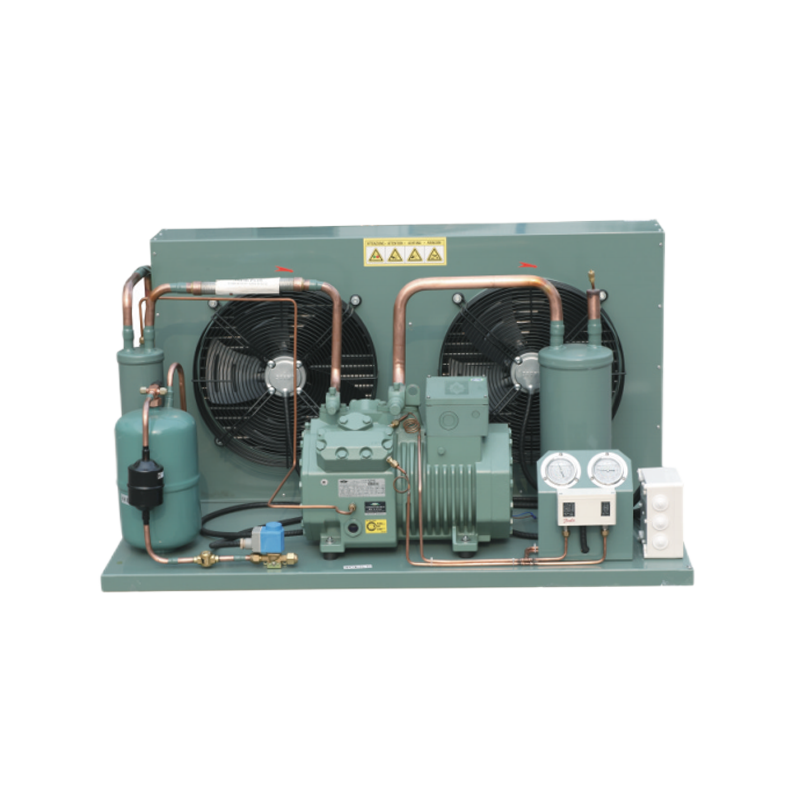

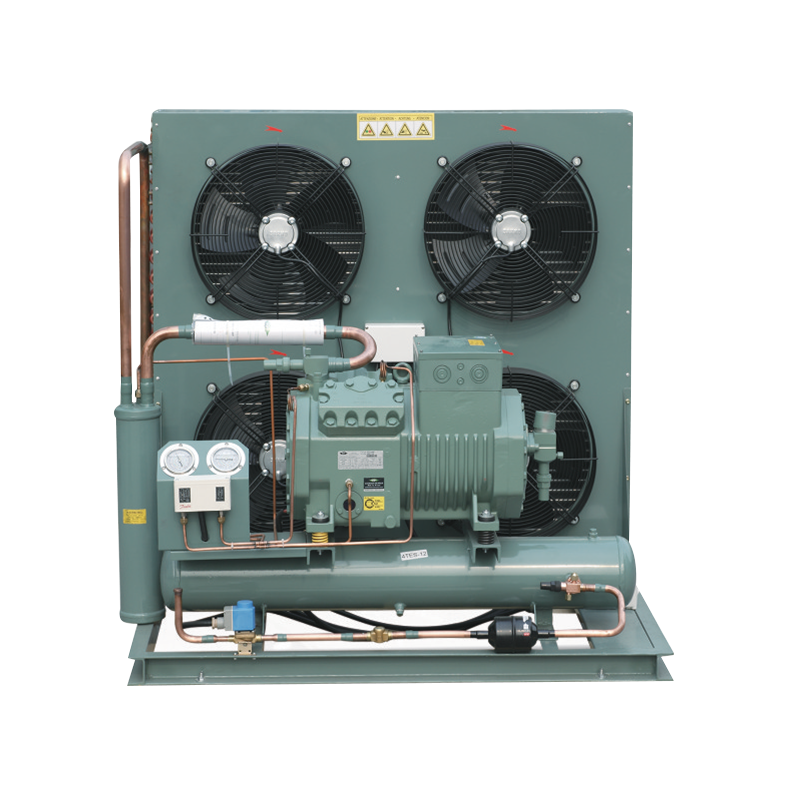

Bitzer Compressor Open Type Condensing Units
  • Bitzer Compressor Open Type Condensing Units
  • Bitzer Compressor Open Type Condensing Units

Bitzer Compressor Open Type Condensing Units

Feature
1.Products Characteristics
●Use BITZER semi-hermetic piston compressor.Renowned for reliability and commonly used in the industry.
●Has diverse functionality, uitable for low (L), medium (M), and high (H) back pressures, adapting to different working conditions.
●Adoption of famous brand and high-quality refrigeration accessories for improved reliability and performance.
●Can adapt to different refrigerants when replacing refrigerated oil, allowing for versatility in refrigerant choices.
●Ability to add more accessories based on specific requirements, providing customization options for the system.
These features collectively suggest a flexible and reliable refrigeration system designed for a variety of applications.

2.Main components
CDBOF02M-CDBOF2OM, CDBOF02L-CDBOF14LY
Standard configuration: Compressor, condenser, fan motor, liquid receiver, filter drier, sight glass, Solenoid valve,H/L P oil gauge, pressure controller, crankcase heater.
Optional accessories: Vibration absorber, oil separator, suction accumulator, suction filter drier.
CDBBF25M-CDBBF50M,CDBBF18LY-CDBBF44LY
Standard configuration: Compressor, oil heating, fan motor, condenser, liquid receiver, filter drier, sight glass, solenoid valve,H/L P oil gauge, pressure controller, vibration absorber, oil pressure protector.
CONTACT CATALOG PDF
  • Technical specification
  • About us
  • Get an inquiry
Bitzer  Motor Compressor Units Series(M/H Temperature)
Model CDBOF02M CDBOF03M CDBOF03M CDBOF03M CDBOF04M CDBOF05M CDBOF06M CDBOF07M CDBOF09M CDBOF10M CDBOF12M CDBOF15M CDBOF20M
Temperature(℃) -15℃~+5℃
Refrigerant R404A
Compressor Model 2GES-2Y 2FES-3Y 2EES-3Y 2DES-3Y 2CES-4Y 4FES-5Y 4EES-6Y 4DES-7Y 4CES-9Y 4VES-10Y 4TES-12Y 4PES-15Y 4NES-20Y
HP 2 3 3 3 4 5 6 7 9 10 12 15 20
Condenser Fan
Diameter
(mm)		 400 350 350 350 350 400 400 400 350 350 400 400 500
Air Flow
(m³/h)		 1*3900 2*3110 2*3110 2*3110 2*3110 2*3900 2*3900 2*3900 4*3110 4*3110 4*3900 4*3900 4*6900
Fan voltage 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz
Power of Fan(W) 1*190 2*145 2*145 2*145 2*145 2*190 2*190 2*190 4*145 4*145 4*190 4*190 4*380
Poles 4 4 4 4 4 4 4 4 4 4 4 4 4
KW 5.8 7.5 7.5 7.5 10.5 13.7 15.8 18.4 21.0 23.7 28.9 35.5 51.3
Cooling capacity(W) Evaporating Temperature -5℃ 400 350 350 350 350 400 400 400 350 350 400 400 500
-10℃ 1*3900 2*3110 2*3110 2*3110 2*3110 2*3900 2*3900 2*3900 4*3110 4*3110 4*3900 4*3900 4*6900
-25℃ 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz
S(Inch) 5/8" 5/8" 7/8" 7/8" 7/8" 7/8" 1-1/8" 1-1/8" 1-1/8" 1-1/8" 1-3/8" 1-5/8" 1-5/8"
D(Inch) 3/8" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 5/8" 5/8" 5/8" 7/8" 7/8"
Overall Dimension
L*W'H(mm)		 700*680*570 920*700*470 920*700*470 920*700*470 920*700*620 1030*800*620 1260*750*670 1260*750*770 1270*850*870 1270*850*970 1270*850*1170 1270*850*1420 1270*950*1370

Bitzer NO.2 Motor Compressor Units Series(Low Temperature)
Model CDBOF02L CDBOF02L CDBOF02L CDBOF03L CDBOF03L CDBOF04L CDBOF05L
Temperature/℃ -30℃~-15℃
Refrigerant R404A
Compressor Model 2FES-2Y 2EES-2Y 2DES-2Y 2CES-3Y 4FES-3Y 4EES-4Y 4DES-5Y
HP 2 2 2 3 3 4 5
Condenser Fan Diameter (mm) 400 400 400 350 350 350 400
Air Flow(m³/h) 1*3900 1*3900 1*3900 2*3110 2*3110 2*3110 2*3900
Fan voltage 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz
Power of Fan(W) 1*190 1*190 1*190 2*145 2*145 2*145 2*190
Poles 4 4 4 4 4 4 4
KW 5.8 5.8 5.8 7.5 7.5 10.5 13.7
Cooling capacity(W) Evaporating Temperature -25℃ 1910 2450 2990 3810 4120 5240 6260
-30℃ 1420 1820 2240 2890 3170 4020 4810
-35℃ 1000 1280 1600 2110 2380 3010 3600
-40℃ 650 830 1070 1450 1730 2170 2600
S(Inch) 5/8" 7/8" 7/8" 7/8" 7/8" 1-1/8" 1-1/8"
D(Inch) 3/8" 3/8" 3/8" 3/8" 3/8" 1/2" 1/2"
Overall Dimension
L*W'H(mm)		 700*680*570 700*680*570 700*680*570 920*700*470 920*700*470 920*700*620 1030*800*620


Model CDBOF06L CDBOF07L CDBOF09L CDBOF12L CDBOF14L CDBOF18L CDBOF23L
Temperature/℃ -30℃~-15℃
Refrigerant R404A
Compressor Model 4CES-6Y 4VES-7Y 4TES-9Y 4PES-12Y 4NES-14Y 4HE-18Y 4GE-23Y
HP 6 7 9 12 14 18 23
Condenser Fan Diameter (mm) 400 400 350 400 400 450 500
Air Flow(m³/h) 2*3900 2*3900 4*3110 4*3900 4*3900 4*5000 4*6900
Fan voltage 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz 380V/3PH/50Hz
Power of Fan(W) 2*190 2*190 4*145 4*190 4*190 4*250 4*380
Poles 4 4 4 4 4 4 4
KW 15.8 18.4 21.0 28.9 35.5 42.7 51.3
Cooling capacity(W) Evaporating Temperature -25℃ 7480 7190 9030 9830 12240 17720 21000
-30℃ 5690 5280 6740 7200 9140 13570 16290
-35℃ 4220 3710 4840 5040 6580 10070 12320
-40℃ 3010 2440 3300 3300 4510 7160 9010
S(Inch) 1-1/8" 1-1/8" 1-3/8" 1-3/8" 1-3/8" 1-5/8" 2-1/8"
D(Inch) 1/2" 1/2" 5/8" 5/8" 5/8" 7/8" 7/8"
Overall Dimension
L*W'H(mm)		 1260*750*670 1260*750*770 1270*850*870 1270*850*1170 1270*850*1420 1270*950*1370 1270*950*1370
