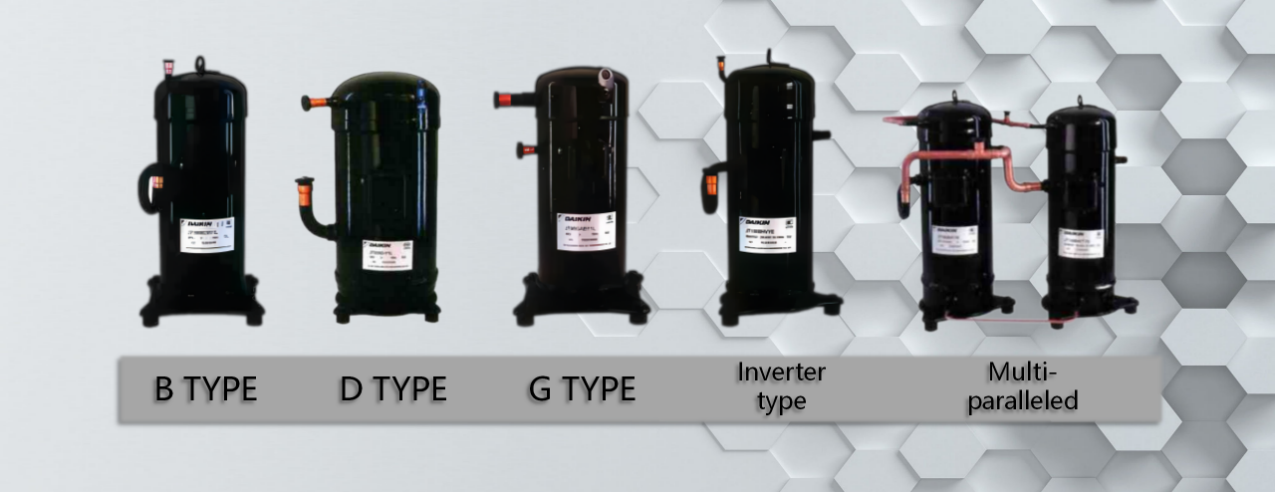

DAIKIN B/D/G/Inverter/Multi-paralleled Type Scroll Compressor
  • DAIKIN B/D/G/Inverter/Multi-paralleled Type Scroll Compressor

DAIKIN B/D/G/Inverter/Multi-paralleled Type Scroll Compressor

Feature
  • Provide high efficiency compressors by greater accurate machining. particular assemblingand oil sea technology.
  • Using un-contact scroll, we have accomplished low sound power levels and low vibration.
  • Scroll compressors have fewer moving parts, low reiteration impulsion and low sliding velocity.
CONTACT Download Catalog
  • Technical specification
  • About us
  • Get an inquiry
Refrigerant Typical Model Output       (HP) Power Source Nominal Capacity Input Current    (A) COP      (w/w) Displacement   （cm）
（KW） (BTU/U)
R407C JT90GBBV1L 3 1Φ 220V/50Hz 8.49 28980 2.73 12.7 3.11 45.8
JT90GBBY1L 3 3Φ 380V/50hz 8.49 28980 2.65 4.6 3.2 45.8
JT95GBBV1L 3 1Φ 220V/50Hz 9.16 31270 2.95 13.6 3.11 49.4
JT95GBBY1L 3 3Φ 380V/50hz 9.16 31270 2.86 4.9 3.2 49.4
JT125GBBY1L 4 3Φ 380V/50hz 11.8 40280 3.69 6.3 3.2 63.2
JT160GBBY1L 5 3Φ 380V/50hz 14.7 50180 4.6 7.95 3.2 79.2
JT170GBBY1L 5.5 3Φ 380V/50hz 15.7 53600 4.91 8.5 3.2 84
JT300DA-Y1L 10 3Φ 380V/50hz 29.9 102050 9.45 16.2 3.16 163
JT335DA-Y1L 12 3Φ 380V/50hz 34 116050 10.7 18.1 3.18 184.2
R410A JT90G-P8V1N 3 1Φ 220-230V/50Hz 8.54 29150 2.95 13.2 2.89 33.1
JT125G-P8V1 4 1Φ 220-240V/50Hz 11.8 40280 4.08 19.9 2.89 46
JT90G-P8Y1 3 3Φ 380-415V/50hz 8.54 29150 2.83 4.7 3.01 33.1
JT125G-P8Y1 4 3Φ 380-415V/50hz 11.8 40280 3.93 6.5 3 46
JT160G-P8Y1 5 3Φ 380-415V/50hz 14.9 50860 4.88 8.3 3.06 56.8
JT170G-P8Y1 5.5 3Φ 380-415V/50hz 15.91 54300 5.2 8.9 3.06 60.5
R22 JT125BCBY1L 4 3Φ 380v/50hz 11.9 40620 3.8 7 3.13 67
JT160BCBY1L 5 3Φ 380v/50hz 15 51200 4.66 8.6 3.22 83.1
JT90GABV1L 3 1Φ 220V/50Hz 8.41 28710 2.56 11.9 3.3 45.8
JT90GABY1L 3 3Φ 380v/50hz 8.41 28710 2.47 4.36 3.4 45.8
JT95GABV1L 3 1Φ 220V/50Hz 9.07 30960 2.75 12.8 3.3 49.4
JT95GABY1L 3 3Φ 380v/50hz 9.07 30960 2.67 4.62 3.4 49.4
JT125GABY1L 4 3Φ 380v/50hz 11.7 39940 3.44 6 3.4 63.2
JT160GABY1L 5 3Φ 380v/50hz 14.6 49830 4.3 7.5 3.4 79.2
JT170GABY1L 5.5 3Φ 380v/50hz 15.6 53250 4.59 8.1 3.4 84
JT212D-Y1L 7 3Φ 380v/50hz 21.5 73390 6.49 11.2 3.31 117.3
JT236D-Y1L 7.5 3Φ 380v/50hz 24 81920 7.2 12.3 3.33 131
JT265D-Y1L 8 3Φ 380v/50hz 26.7 91140 7.95 13.6 3.36 144.7
JT300D-Y1L 10 3Φ 380v/50hz 29.9 102050 8.85 15 3.38 163
JT315D-Y1L 11 3Φ 380v/50hz 31.1 106160 9.15 15.5 3.4 169.5
JT335D-Y1L 12 3Φ 380v/50hz 34 116050 9.98 17 3.41 184.2
JT212D-TY1L 7 3Φ 380v/50hz 21.5 73380 6.49 11.2 3.31 117.3
JT236D-TY1L 7.5 3Φ 380v/50hz 24 81920 7.2 12.3 3.33 131
JT265D-TY1L 8 3Φ 380v/50hz 26.7 91130 7.95 13.6 3.36 144.7
JT300D-TY1L 10 3Φ 380v/50hz 29.9 102050 8.85 15 3.38 163
JT335D-TY1L 12 3Φ 380v/50hz 34 116050 9.98 17 3.41 184.2
