CDH Series H Type Condenser

Feature

• H type special model condenser

• Adopt high efficiency heat exchange coil with aluminum fins, clean and dry inside copper tube.

• Aluminum fin punching is an extension flap of “L” row, so heat exchange effidency is very high after expansion.

• Overall shell make spraying treatment and corrosion resistance Support v/ith multi-flanging design have good vibration resistance.

• Axial fan motor can be chose by EBM or Chinese famous brand: High efficiency low noise, large air volume.

CONTACT Download Catalog

Prev: CDV Series V Type Condenser

Next: CDF Series Flat Type Condenser

Technical specification
About us
Get an inquiry

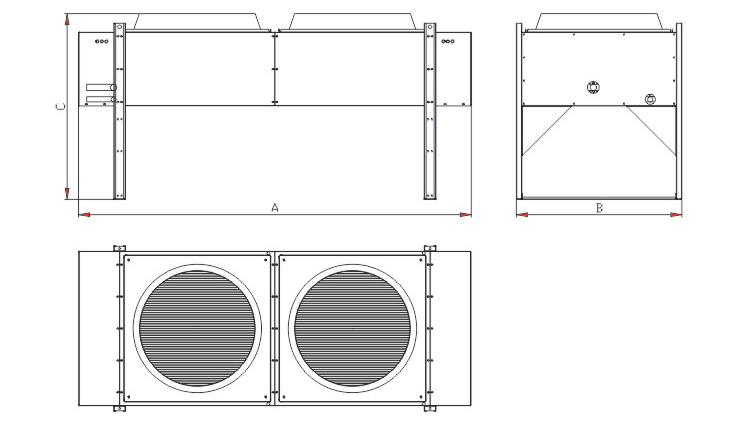

Model	Refrigeration Capacity	Cool Area	Overall Dimension A×B×C	Installation Dimension D×E	Fan Motor					Connection Plpe
	Refrigeration Capacity	Cool Area	Overall Dimension A×B×C	Installation Dimension D×E	Quantity	Diameter	Air Flow	power	Voltage	Inlet	Outlet
	kw	㎡	mm	mm	pcs	φmm	㎥/h	w	V	φmm	φmm
CDH-6302-110	80.19	110	2150x906x965	884x1700	2	630	29939	5.4	380	22	35
CDH-6303-166	120.13	166	3000x906x965	884x1700	3	630	45045	8.1	380	28	42
CDH-6304-222	161.96	222	3850x906x965	884x1700	4	630	60150	10.8	380	35	54
CDH-6305-278	198.16	278	4700x906x965	884x1700	5	630	75255	13.5	380	42	67
CDH-6306-331	240.26	331	2610x1206x1030	1182x2200	6	630	90090	16.2	380	22	35
CDH-630&443	323.93	443	3710x1206x1030	1182x2200	8	630	120300	21.6	380	2x28	2x42
CDH-8002-200	106.36	200	3000x1746x965	1724x1700	2	800	34169	3.2	380	35	54
CDH-8003-301	161.12	301	3850x1746x965	1724x1700	3	800	51390	4.8	380	35	54
CDH-800M03	214.36	403	4700x1746x965	1724x1700	4	800	68610	6.4	380	35	54
CDH-8006-602	322.21	602	3710x2346x1030	2322x1700	6	800	102779	9.6	380	2x35	2x54
CDH-8008-806	428.72	806	4810x2346x1030	2322x1700	8	800	137219	12.8	380	2x42	2x67

About Ningbo Ouyu Import & Export Co., Ltd.

Ningbo Ouyu Import & Export Co., Ltd. is the exporting branch of Briliant Refrigeration Equipment Co., Ltd. It is a manufacturer and factory specializing in the research, development, and design of large-scale refrigeration equipment, with more than 100 talented employees, including masters, researchers, engineering, and technical engineers.

As a professional OEM/ODM/OBM CDH Series H Type Condenser suppliers and CDH Series H Type Condenser company with more than 30 years, Ouyu has multiple modern industrial factories equipped with advanced production and processing equipment and complete manufacturing processes. We sell various brands of compressors, condensers, evaporators, condensing units, large and medium-sized parallel units as well as refrigeration accessories with good quality and competitive prices.

We have a complete production line and our products have been awarded ISO9001:2008 quality system certification, CE certification, National Industrial Product Manufacture Licence and Combined Refrigerated Agricultural Machinery Certificate.
