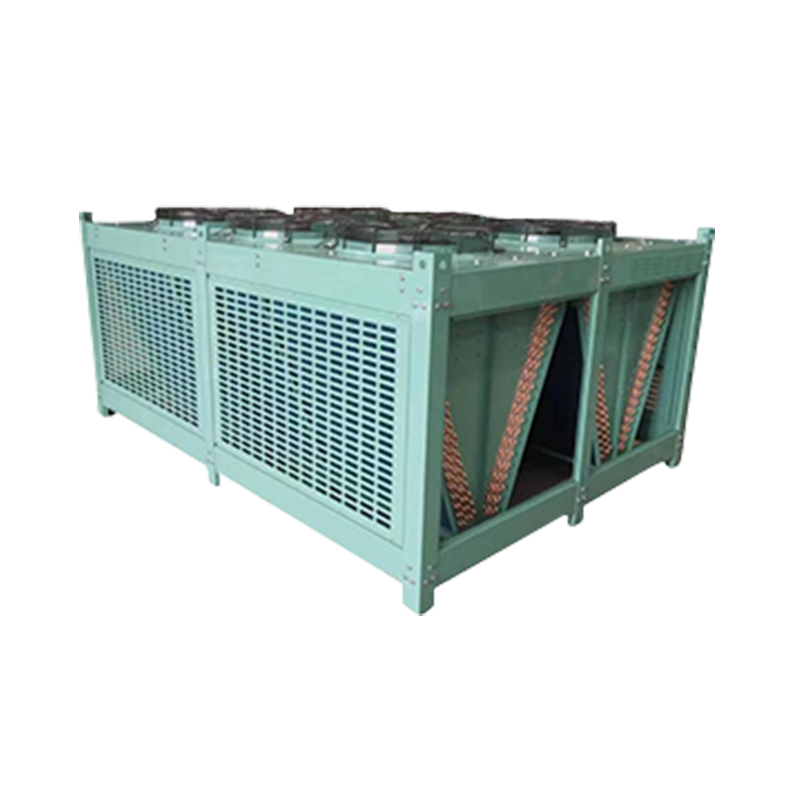

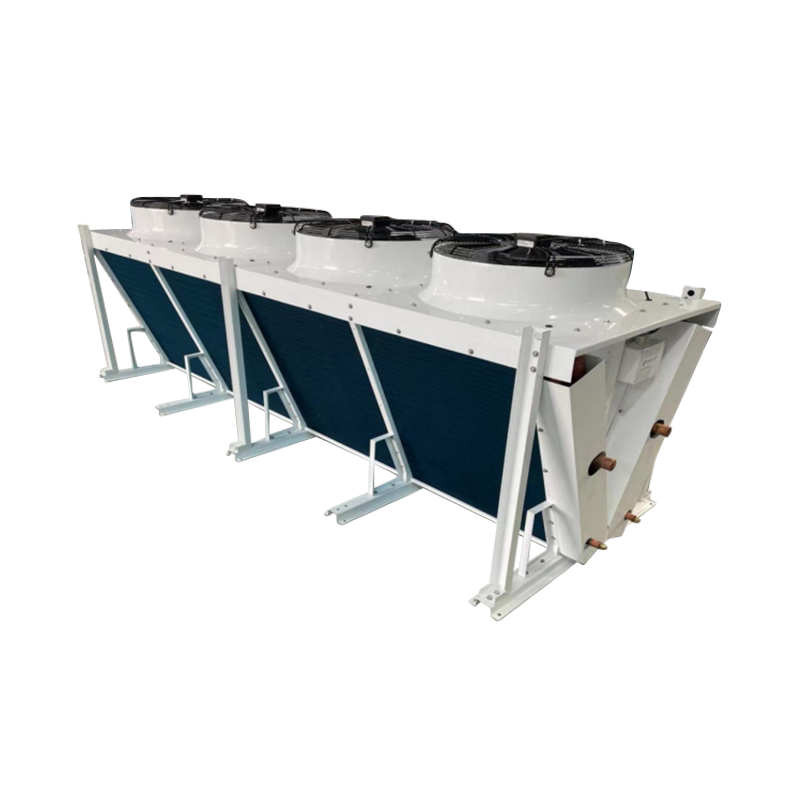

CDV Series V Type Condenser
  • CDV Series V Type Condenser
  • CDV Series V Type Condenser
  • CDV Series V Type Condenser

CDV Series V Type Condenser

Feature

• V-shaped special model top air outlet condenser, suitable for medium and large condensing unit operating conditions.

• Adopt high efficiency heat exchange coil with aluminum fins, clean and dry inside copper tube.
• Aluminum fin punching is an extension flap of "L" row, so heat exchange effidency is very high after expansion.
• Overall shell make spraying treatment and corrosion resistance Support with multi-flanging design have good vibration resistance.
• Axial fan motor can be chose by EBM or Chinese famous brand: High efficiency low noise, large air volume.

 Application scope: air conditioning systems, refrigeration equipment, chemical processes, power plants, distillation equipment, etc.

  • Technical specification
  • About us
  • Get an inquiry

Model

Refrigeration
Capacity

Cool Area

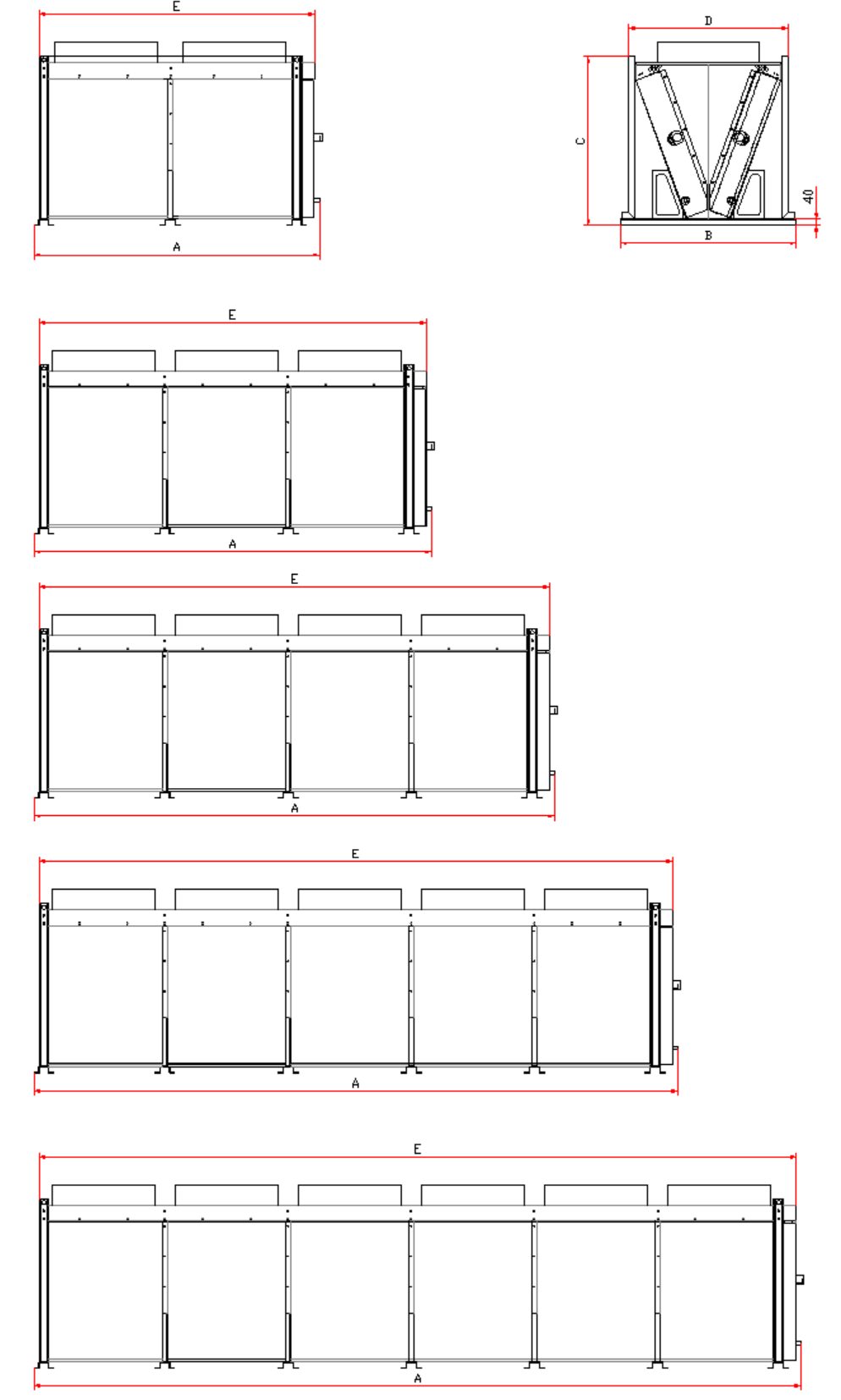

Overall
Dimension
A×B×C

Installation
Dimension
D×E

Fan Motor

Connection Plpe

Quantity

Diameter

Air Flow

power

Voltage

Inlet

Outlet



kw



mm

mm

pcs

φmm

/h

w

V

φmm

φmm

CDV-5002-123

36.9

123

1582×1000×775

1370×980

2

500

2×6500

420

380

22

25

CDV-5003-219

65.7

219

2011×1030×971

1970×1010

3

500

3×6500

420

380

19

28

CDV-5503-256

76.8

256

2311×1030×971

2130×1010

3

550

3×8400

550

380

19

28

CDV-6002-188

56.4

188

1784×1030×1055

1580×1010

2

600

2×11000

750

380

22

28

CDV-6303-386

115.8

386

2484×1100×1146

2280×1080

3

630

3×12500

800

380

22

35

CDV-6304-518

155.4

518

3254×1100×1146

3050×1080

4

630

4×12500

800

380

28

42

CDV-6305-650

195

650

4024×1100×1146

3820×1080

5

630

5×12500

800

380

28

42

CDV-8002-414

124.2

414

2270×1240×1280

2090×1200

2

800

2×16600

1250

380

35

54

CDV-8003-624

187.2

624

3320×1240×1280

3140×1200

3

800

3×16600

1250

380

35

54

CDV-8004-834

250.2

834

4370×1240×1280

4190×1200

4

800

4×16600

1250

380

54

76

CDV-8005-1044

313.2

1044

5420×1240×1280

5240×1200

5

800

5×16600

1250

380

54

76

CDV-8006-1254

376.2

1254

6470×1240×1280

6290×1200

6

800

6×16600

1250

380

54

76

CDW-6306-1000

300

1000

3381x2200x1245

3120x2160

6

630

73205

6.6

380

2X35

2X54

CDW-6306-1100

330

1100

3681x2200x1245

3420x2160

6

630

73205

6.6

380

2X35

2X54

CDW-6308-1300

390

1300

4291x2200x1245

4030x2160

8

630

97606

8.8

380

2X35

2X54

CDW-6308-1400

420

1400

4611x2200x1245

4350x2160

8

630

97606

8.8

380

2X35

2X54

CDW-8008-1500

450

1500

4791x2200x1245

4530x2160

8

800

159724

12.8

380

2X35

2X54

CDW-8008-1800

540

1800

5491x2200x1245

5230x2160

8

800

159724

12.8

380

2X35

2X54
