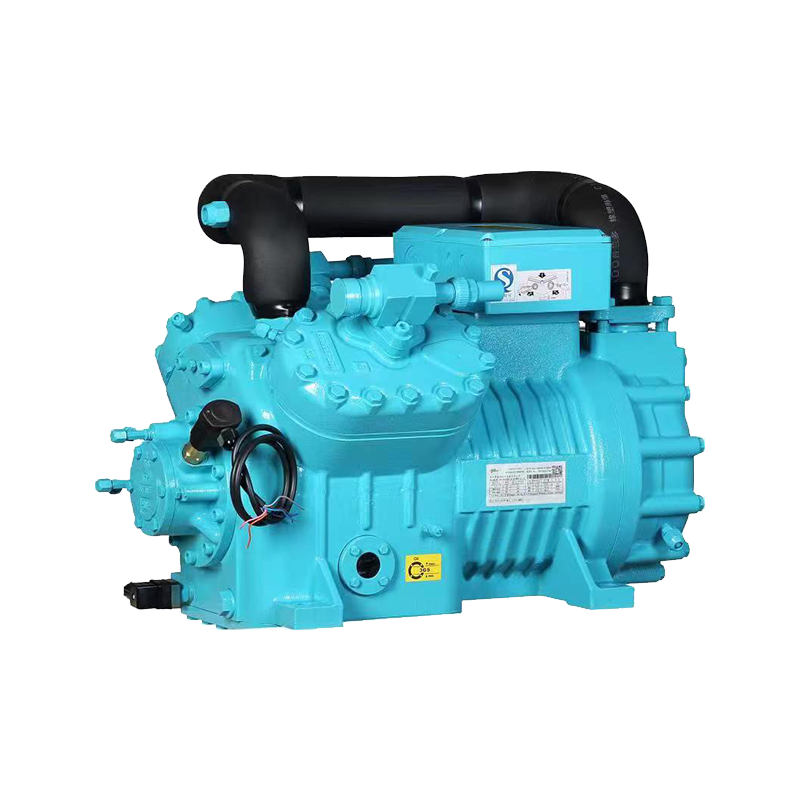

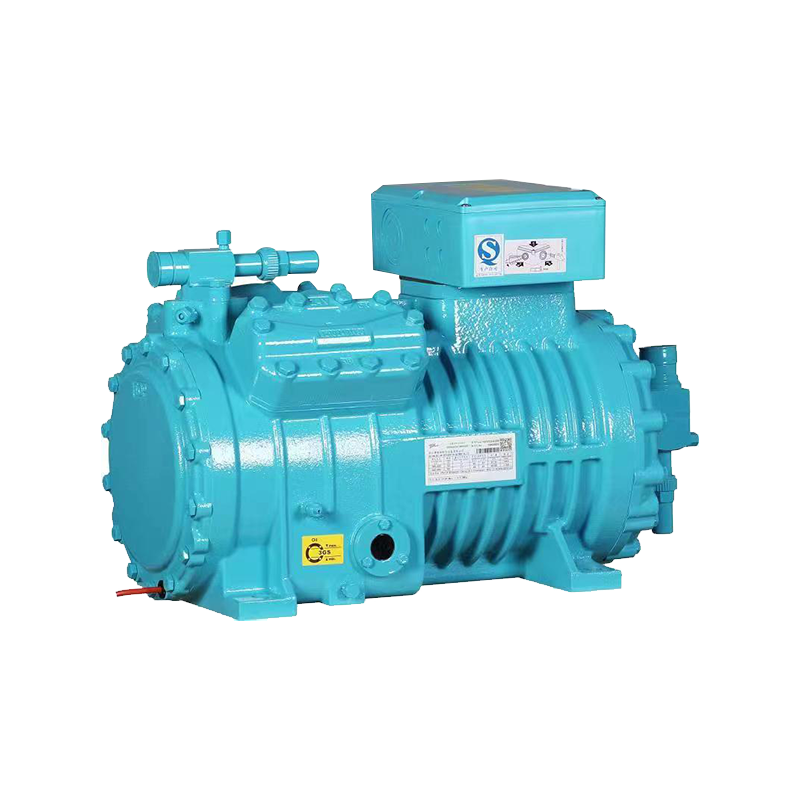

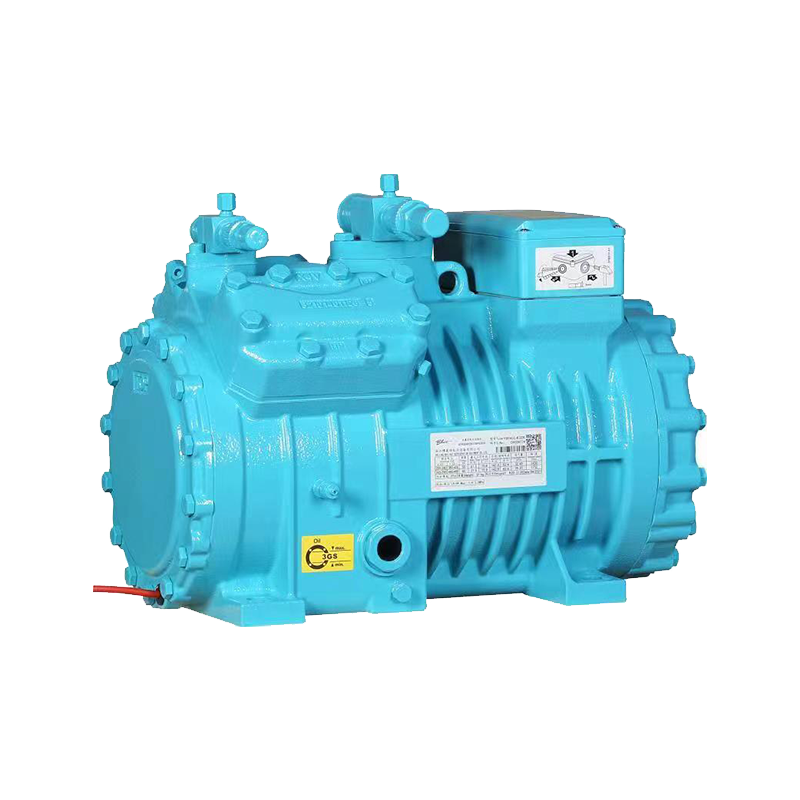

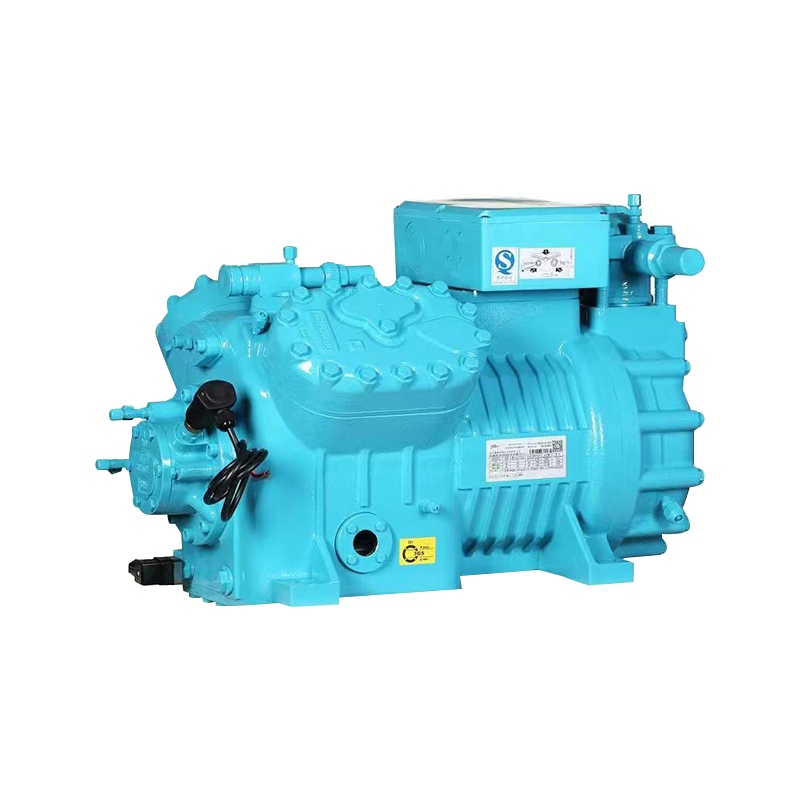

Briliant Semi-Hermetic Piston Refrigeration Compressor Supplier

Home / Product / Blait Semi-hermetic Compressor / Briliant Semi-Hermetic Piston Refrigeration Compressor
  • Technical specification
  • About us
  • Get an inquiry
Compressor Model Nominal Motor Power (HP/KW) Displacement (50Hz)m³/h Number of Cylinder x Diameter x Stroke mm Oil injection volume (L) Powersupply V/Φ/Hz Electricalparameter Crankcase Heater (220V) W Oilsupply method Weight (including freezingoil) Kg
Max.operating current A Starting current/rotor locked current. Operating current A
YBF2FC-2.2Z 2/1.5 9.54 2×φ46×33 1 △/Y    8.5/4.9 39/22.5 60 Centrifgal lubrcation 45
YBF2FC-3.2G 3/2.2 9.54 2×φ46×33 1   Directly start the motor 10.0/5.8 44.2/25.5 60 47
YBF2DC-2.2Z 2/1.5 13.42 2×φ50×39.3 1.5 11.9/6.9 53.7/30.7 100 68
YBF2DC-3.2G 3/2.2 13.42 2×φ50×39.3 1.5 13.5/7.8 64/37 100 71
YBF2CC-3.2Z 3/2.2 16.24 2×φ55×39.3 1.5 14.8/8.5 64/37 100 70
YBF2CC-4.2G 4/3.0 16.24 2×φ55×39.3 1.5 220~240△ 16.4/9.4 76.6/44.2 100 70
YBF4FC-3.2Z 3/2.2 18.05 4×φ41×39.3 2 380~420Y 15.9/9.2 76.6/44.2 100 81
YBF4FC-5.2G 5/3.7 18.05 4×φ41×39.3 2 /3~/50 18.7/10.8 107.7/62.2 100 85
YBF4EC-4.2Z 4/3.0 22.72 4×φ46×39.3 2 265~290△ 18.5/10.7 92.7/53.3 100 82
YBF4EC-6.2G 6/4.4 22.72 4×φ46×39.3 2 400~480Y 22.9/13.2 107.7/62.2 100 85
YBF4DC-5.2Z 5/3.7 26.84 4×φ50×39.3 2 /3~/60 23.4/13.5 107.7/62.2 100 85
YBF4DC-7.2G 7/5.1 26.84 4×φ50×39.3 2 27.5/15.9 142.8/82.4 100 88
YBF4CC-6.2Z 6/4.4 32.48 4×φ55×39.3 2 27.5/15.9 142.8/82.4 100 89
YBF4CC-9.2G 9/6.6 32.48 4×φ55×39.3 2 34.5/20.0 142.8/82.4 100 89
YBF4VCS-6.2Z 6/4.4 34.73 4×φ55×39.3 2.6 PW 14 39/68 120 117
YBF4VCS-10.2G 10/7.5 34.73 4×φ55×42 2.6 Split winding starting motor 21 59/99 120 127
YBF4TCS-8.2Z 8/5.5 41.33 4×φ60×42 2.6 17 49/81 120 122
YBF4TCS-12.2G 12/8.8 41.33 4×φ60×42 2.6 24 69/113 120 129
YBF4PCS-10.2Z 10/7.5 48.05 4×φ65×42 2.6 21 59/99 120 127
YBF4PCS-15.2G 15/10.5 48.05 4×φ65×42 2.6 31 81/132 120 135
YBF4NCS-12.2Z 12/8.8 56.25 4×φ70×42 2.6 380~420YY 24 69/113 120 129
YBF4NCS-20.2G 20/15 56.25 4×φ70×42 2.6 /3/50 37 97/158 120 138
YBF4H-15.2Z 15/10.5 73.6 4×φ70×55 4.5 400~480YY 31 81/132 120 Forced-lubrication 183
YBF4H-25.2G 25/18.5 73.6 4×φ70×55 4.5 /3/60 45 116/193 120 194
YBF4G-20.2Z 20/15 84.5 4×φ75×55 4.5 37 97/158 120 192
YBF4G-30.2G 30/22 84.5 4×φ75×55 4.5 53 135/220 120 206
YBF6H-25.2Z 25/18.5 110.5 6×φ70×55 4.75 45 116/193 120 224
YBF6H-35.2G 35/25.5 110.5 6×φ70×55 4.75 61 147/262 120 235
YBF6G-30.2Z 30/22 126.8 6×φ75×55 4.75 53 135/220 120 228
YBF6G-40.2G 40/30 126.8 6×φ75×55 4.75 78 180/323 120 238
YBF6F-40.2Z 40/30 151.6 6×φ82×55 4.75 78 180/323 120 238
YBF6F-50.2G 50/37 151.6 6×φ82×55 4.75 92 226/404 120 241


Compressor Model Nominal Motor Power (HP/KW) Number of Cylinder x Diameter x Stroke mm Displacement Oil injection volume (L) Powersupply V/Φ/Hz Electricalparameter Crankcase Heater (220V) W Oilsupply method Weight (including freezingoil) Kg
Low pressure Hight pressure Max.operating current A Starting current/rotor locked current. Operating current A
YBF4T-5.2DS 5/3.7 4×φ55/46×39.3 19.7 12.6 3 PW 14 39/68 120 Centrifgal lubrcation 136
YBF4N-8.2DS 8/5.5 4×φ70/55×42.0 28 17.9 3 Split winding starting motor 17 49/81 140 141
YBF4G-12.2DS 12/8.8 4×φ75/60×55.0 42.3 27 4.5 24 69/113 140 180
YBF6J-16.2DS 16/11.7 6×φ65/65×55.0 63.5 31.8 4.75 380~420YY 31 81/132 140 Forced-lubrication 209
YBF6H-20.2DS 20/15 6×φ70/70×55.0 73.6 36.9 4.75 /3~/50 37 97/158 140 220
YBF6G-25.2DS 25/15 6×φ75/75×55.0 84.5 42.3 4.75 440~480YY 45 116/193 140 233
YBF6F-30.2DS 30/22 6×φ82/82×55.0 101.1 50.5 4.75 /3~/60 53 135/220 140 234
