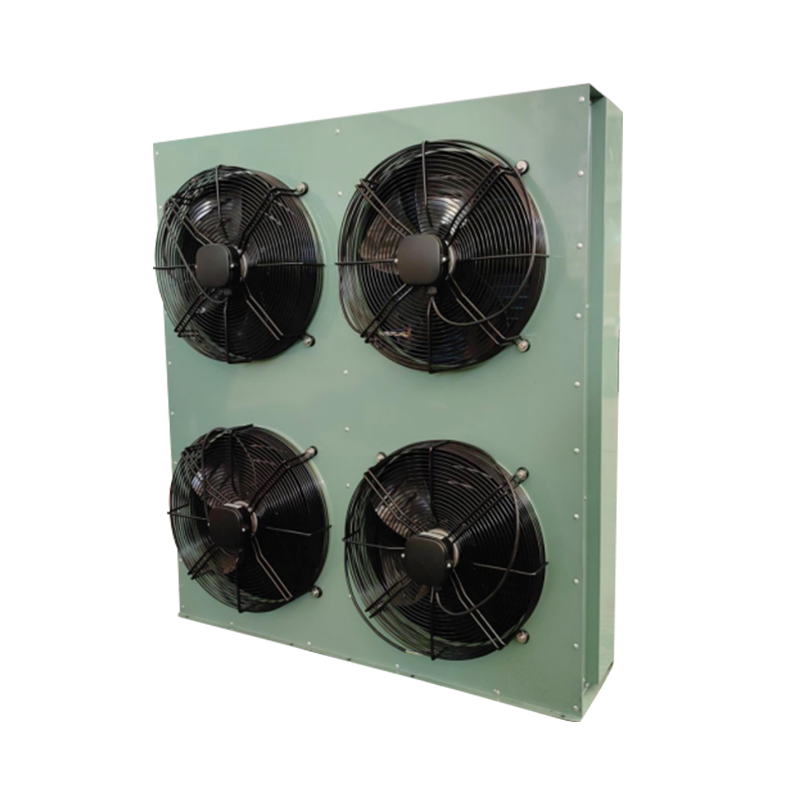

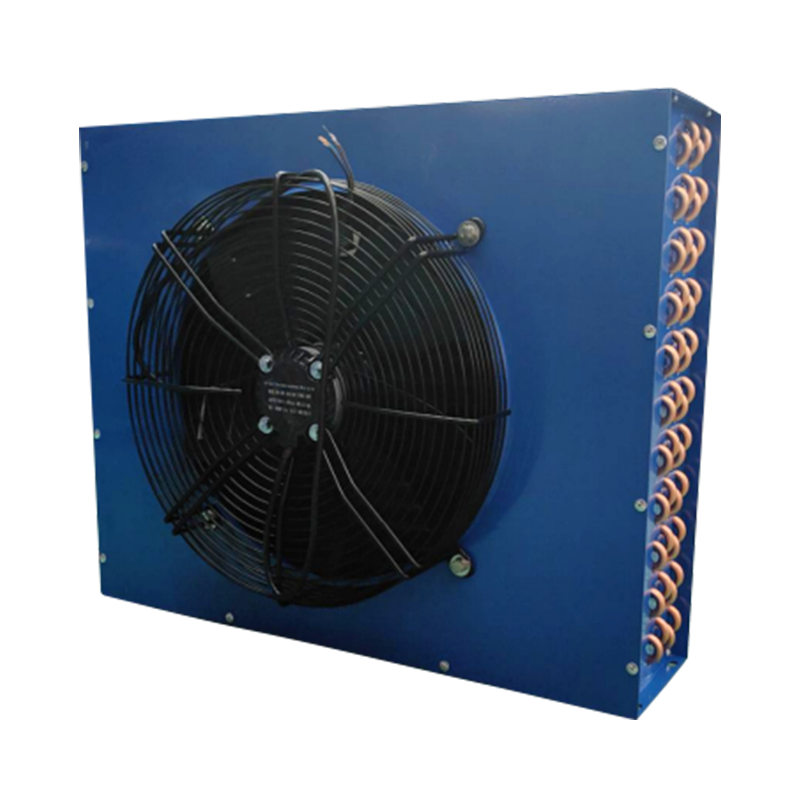

CDF Series Flat Type Condenser

Feature

• Conventional CDF type flat plate condenser suitable for applications.

• Adopt high efficiency heat exchange coil with aluminum fins, clean and dry inside copper tube.
• Aluminum fin punching is an extension flap of "L" row, so heat exchange effidency is very high after expansion.
• Overall shell make spraying treatment and corrosion resistance Support with multi-flanging design have good vibration resistance.
• Axial fan motor can be chose by EBM or Chinese famous brand: High efficiency low noise, large air volume.

Application scope: air conditioning systems, refrigeration equipment, chemical processes, power plants, distillation equipment, etc.

CONTACT Download Catalog

Prev: CDH Series H Type Condenser

Next: No next article

Technical specification
About us
Get an inquiry

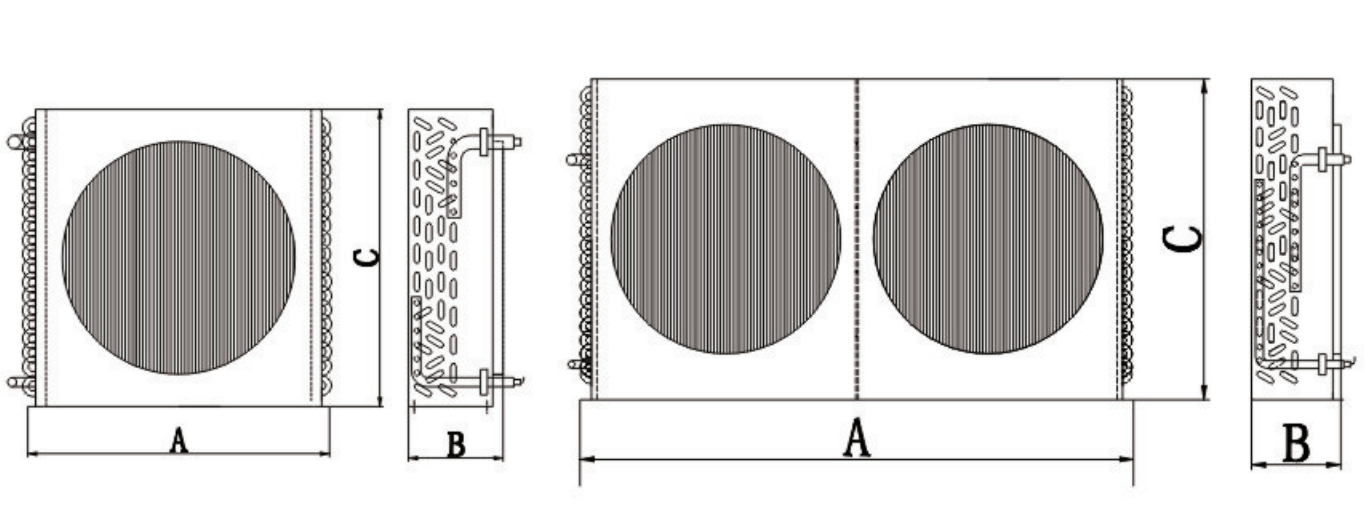

Model	Cooling Capacity (W)	Hear Transfer Area (m2)	Wreath Row	Fan motor				Connection pipe(mm)		Overall size(mm)
				Input (W)	Voltage (V)	Air flow (m3/h)	Diameter (mm)	Inlet (mm)	outlet (mm)	L×W×H

CDF-0.6/2.0	600	2	2×8	40	220	530	200	10	10	320×100×230
CDF-0.9/3.4	900	3.4	3×8	40	220	530	200	10	10	320×120×230
CDF-1.3/4.4	1300	4.4	3×10	50	220	730	250	10	10	370×120×280
				60	380	770
CDF-1.6/5.7	1600	5.7	4×10	50	220	730	250	10	10	370×120×280
				60	380	770
CDF-1.8/6.2	1800	6.2	3×12	85	220	1664	300	10	12	440×120×330
				75	380	1563
CDF-2.2/8.2	2200	8.2	4×12	85	220	1664	300	12	12	440×120×330
				75	380	1563
CDF-2.9/10	2900	10.0	3×16	140	220	2270	350	16	12	515×150×430
				140	380	2290
CDF-3.8/13.3	3800	13.3	4×16	140	220	2270	350	16	12	515×170×430
				140	380	2290
CDF-4.3/15	4300	15.0	4×18	140	220	2270	350	16	12	515×170×430
				140	380	2290
CDF-5.2/18	5200	18.0	3×16	2×85	220	3328	2×300	16	12	840×180×430
				2×75	380	3126
CDF-5.3/18.5	5300	18.5	4×20	180	220	3541	400	19	16	565×180×530
				180	380	3400
CDF-6.0/21	6000	21.0	4×20	180	220	3541	400	19	16	615×180×530
				180	380	3400
CDF-7.0/24.5	7000	24.5	5×20	180	220	3541	400	19	16	590×200×530
				180	380	3400
CDF-7.3/25	7300	25.0	4×16	2×140	220	4540	2×350	19	16	900×180×430
				2×140	380	4580
CDF-8.8/30	8800	30.0	3×23	2×180	220	7082	2×400	22	16	1000×180×615
				2×180	380	6800
CDF-10.2/35	10200	35.0	5×18	2×140	220	4540	2×350	19	16	900×200×480
				2×140	380	4580
CDF-10.8/39	10800	39.0	4×22	2×180	220	7082	2×400	22	16	1000×180×580
				2×180	380	6800
CDF-14.0/49	14000	49.0	5×22	2×180	220	7082	2×400	22	16	1000×200×580
				2×180	380	6800
CDF-15.2/53	15200	53.0	5×24	2×180	220	7082	2×400	22	16	1000×200×630
				2×180	380	6800
CDF-19.0/63	19000	63.0	6×24	2×180	220	7082	2×400	22	16	1000×220×630
				2×180	380	6800
CDF-20.3/70	20300	70.0	4×32	4×140	220	9080	4×350	22	19	1230×200×830
				4×140	380	9160
CDF-23.2/80	23200	80.0	4×36	4×140	220	9080	4×350	22	19	1230×200×930
				4×140	380	9160
CDF-24.2/88	24200	88.0	5×40	4×180	220	14164	4×400	25	19	1000×220×1030
				4×180	380	13600
CDF-28.5/100	28500	100.0	4×44	4×180	220	14164	4×400	25	22	1230×200×1130
				4×180	380	13600
CDF-29/105	29000	105.0	6×40	4×180	220	14164	4×400	25	22	1000×220×1030
				4×180	380	13600
CDF-37.8/130	37800	130.0	4×54	4×180	220	14164	4×400	25	22	1230×220×1380
				4×180	380	13600
CDF-43.5/150	43500	150.0	5×52	4×420	220	17180	4×450	25	22	1230×250×1330
				4×450	380	17344
CDF-53/180	53000	180.0	6×52	4×420	220	25680	4×500	28	25	1230×270×1330
				4×450	380	26280
CDF-64.0/220	64000	220.0	6×48	6×180	220	21246	6×400	32	25	1720×255×1230
				6×180	380	20400
CDF-78.0/260	78000	260.0	6×52	6×300	220	25680	6×450	32	25	1840×270×1330
				6×300	380	26280
CDF-92.8/320	92800	320.0	6×52	6×420	220	38520	6×500	38	28	2200×270×1330
				6×450	380	39420
