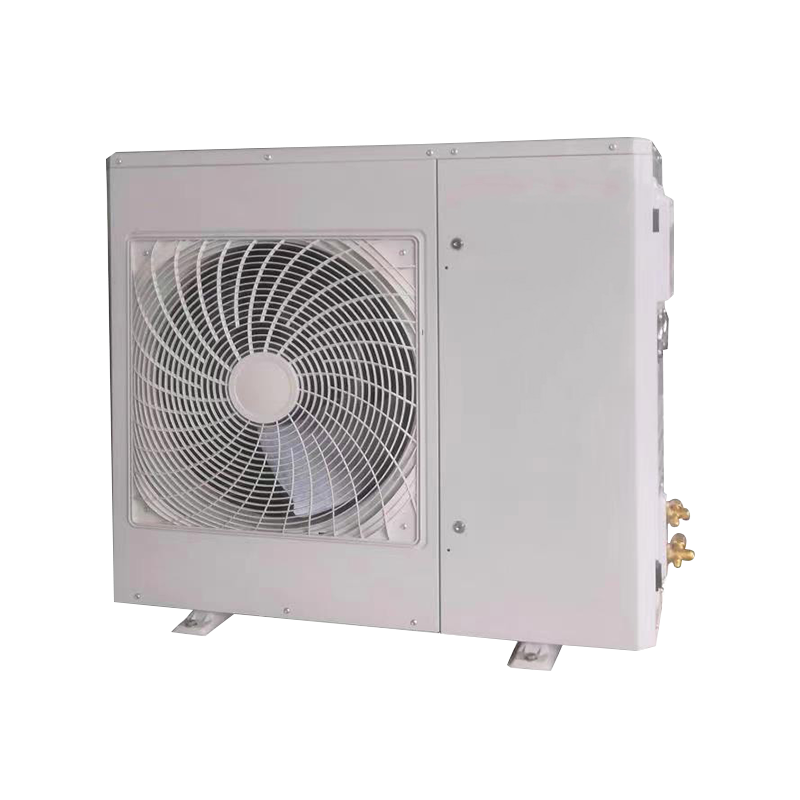

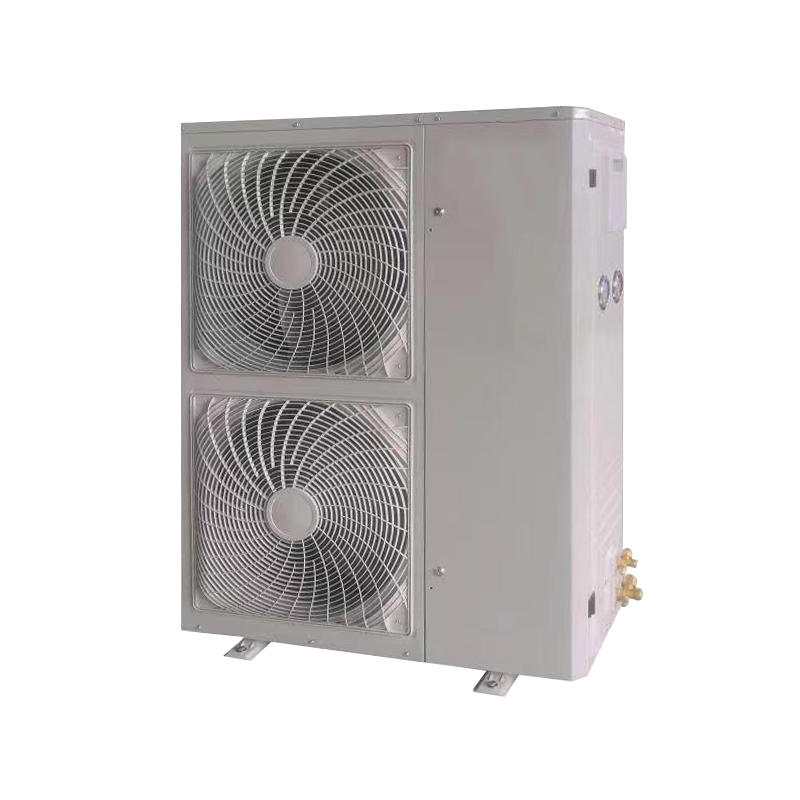

UCH Series HIGHLY Compressor Condensing Unit
  • UCH Series HIGHLY Compressor Condensing Unit
  • UCH Series HIGHLY Compressor Condensing Unit

UCH Series HIGHLY Compressor Condensing Unit

Feature
Advantages of Highly unit:
1.  0~30 degrees Celsius common storage temperature, no need to distinguish between medium and high temperature and low temperature
2.  low compressor noise,The test result is only 60 decibels noise at a distance of one meter
  • Technical specification
  • About us
  • Get an inquiry
 Model  UCH-1.5CY UCH-2HCY UCH-3HCY UCH-2HVY UCH-3.5HVY UCH-4HVY UCH-5HVY UCH-6.5HVY
 Compressor model(HIGHLY) DSH254CV DDH307LV DTH488LV DTH325CU3C9LU DTH488LC3 DTH590LC3 DTE752LC3 DTE911LC3
 Power supply 220V/1PH/50HZ 380V/3PH/50HZ
 COLD ROOM Temperature(℃)  -30℃~+5℃
 Refrigerant  R404A
Condenser
inner grooved copper tube
Heat Exchange Area 20㎡ 20㎡ 30㎡ 22㎡ 32㎡ 39㎡ 56㎡ 61㎡
Fan Qty *Dia (mm)         1×¢350 1×¢350 1×¢400 1×φ480 1×φ480 2×φ480 2×φ480 2×φ480
input(W) 1×94W 1×94W 1×120W 1×65W 1×65W 2×65W 2×65W 2×65W
Air Flow(m³/h) 2410 2410 3290 4250 4250 8500 8500 8500
Fan voltage   220V/1PH/50Hz    6Pole
Compressor Capacity Evaporating Tempe     -5℃ Cooling capacity(W) 2923 3703 6276 6276 6077 7609 9699 11789
Input(KW) 1.48 1.62 2.64 2.64 2.67 3.73 4.77 5.75
Evaporating Tempe    -10℃ Cooling capacity(W) 2425 3072 5206 5206 5041 6270 7991 9713
Input(KW) 1.43 1.56 2.54 2.54 2.58 3.61 4.62 5.57
Evaporating Tempe    -15℃ Cooling capacity(W) 1990 2522 4272 4272 4137 5111 6514 7918
Input(KW) 1.37 1.5 2.44 2.44 2.48 3.49 4.46 5.39
Evaporating Tempe    -25℃ Cooling capacity(W) 1291 1635 2771 2771 2683 3292 4196 5101
Input(KW) 1.26 1.38 2.24 2.24 2.27 3.24 4.15 5.01
Evaporating Tempe    -35℃  Cooling capacity(W) 787 997 1400 1400 1636 2070 2638 3206
Input(KW) 1.16 1.27 2.1 2.1 2.09 3.01 3.85 4.65
Evaporating Tempe    -40℃ Cooling capacity(W) 596 755 1280 1280 1240 1655 2110 2565
Input(KW) 1.12 1.22 1.99 1.99 1.65 2.91 3.72 4.49
Suction inlet(mm) 1/2“ 1/2“ 5/8“ 1/2“ 5/8“ 3/4“ 3/4“ 3/4“
Liquid Dia (mm) 3/8“ 3/8“ 3/8“ 3/8“ 3/8“ 1/2“ 1/2“ 1/2“
Overall Dimension L*W*H (mm) 950×355×850 950×355×850 950×355×850 950×355×850 950×355×850 950×355×1250 950×355×1250 950×355×1250
Installation Size(mm) 580×383 580×383 580×383 580×383 580×383 580×383 580×383 580×383
Test condition :Subcooling temp 8.3K Suction line overheat temp.Condensing Temp.  50℃
