OUYUCOOL Type A Copeland/Danfoss Compresspor Condersing Unit Supplier

Home / Product / Condensing Unit / OUYUCOOL Type A Copeland/Danfoss Compresspor Condersing Unit

Product Category

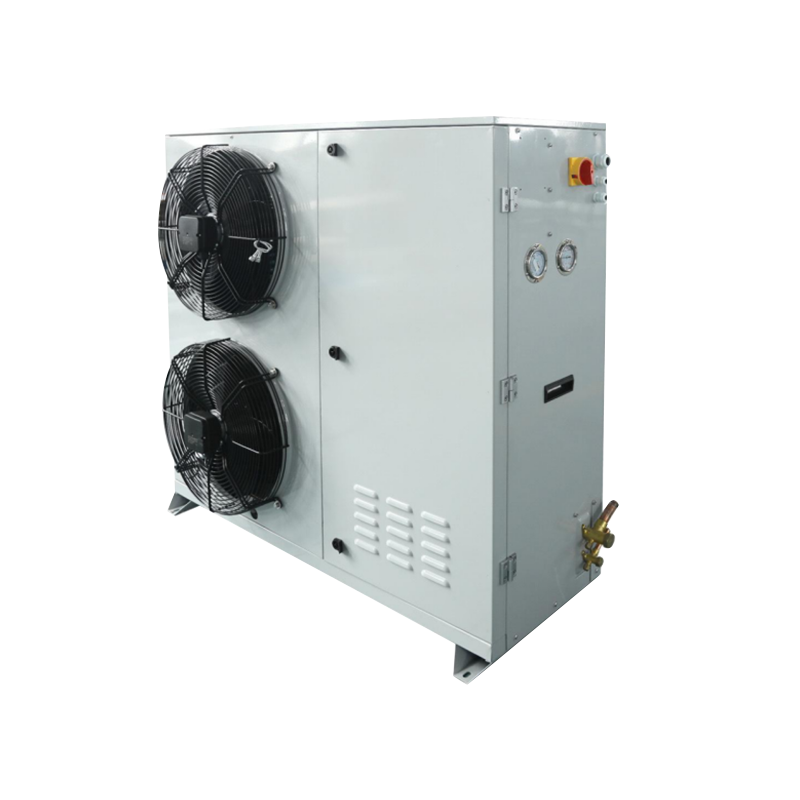

OUYUCOOL Type A Copeland/Danfoss Compresspor Condersing Unit
  • OUYUCOOL Type A Copeland/Danfoss Compresspor Condersing Unit
  • OUYUCOOL Type A Copeland/Danfoss Compresspor Condersing Unit

OUYUCOOL Type A Copeland/Danfoss Compresspor Condersing Unit

Feature
The box-type unit is an integral outdoor air-cooling unit with a compact structure and beautiful appearance.
Refrigeration compressors from international brands are used, including Bitzer's ZB, ZSI, ZFI, ZF, Danfoss, Invac, etc. Excellent performance and reliability.
Air outlet mode: According to the air outlet mode, it can be divided into two types: top air outlet and side air outlet.
Style classification: According to different designs and specifications, it is divided into three types: A, B and C.
Excellent cooling performance:
The condenser of the L-shaped box unit uses high-efficiency copper tubes, which has excellent heat transfer effect and reduces air resistance.
Durable:
The sheet metal is made of steel plate and spray-coated, which makes it strong and durable and has excellent anti-corrosion performance. The overall structure is compact, easy to install, and does not require a specific installation space.
Convenient maintenance and inspection:
Types B and C are designed to be openable for easy maintenance and inspection. The inlet and outlet pipe interfaces adopt welded joints or threaded connections, providing more flexibility in choice.
Widely applicable:
Suitable for various industries, including high, medium and low temperature warehouses, display cabinets, industrial equipment, hotels, kitchens, electronic chemicals, etc.
CONTACT CATALOG PDF
  • Technical specification
  • About us
  • Get an inquiry
UC Series Condensing Units with Danfoss compressor
Model UCD02MZA UCD03MZA UCD04MZA UCD05MZA UCD06MZA UCD07MZA UCD08MZA UCD09MZA UCD10MZA
Room Temperature(℃) -18℃ ~ +5℃
Refrigerant R404A/R448A/R449A
Power Supply 380V/3P/50HZ
Danfooss Compressor Model MLZ015T4 MLZ021T4 MLZ030T4 MLZ038T4 MLZ045T4 MLZ048T4 MLZ058T4 MLZ066T4 MLZ076T4
HP 2 3 4 5 6 7 8 9 10
Condenser Fan Fan Qty 1 X Φ450 1 X Φ450 2 X Φ450 2 X Φ450 2 X Φ450 2 X Φ450 2 X Φ450 2 X Φ500 2 X Φ500
Fan voltage 220V/1P/50HZ  6poles
Condenser Heat exchange area (m2) 20.75 29.75 37.75 44.5 54.6 58.5 71.4 75.75 83.5
Condensing Capacity (kw) 5.4 7.74 9.82 11.57 14.2 15.21 18.56 19.7 21.71
Fin space (mm) 2 2 2 2 2 2 2 2 2
Evap   -5℃ Cooling capacity (w) 3788.82 5358.28 8076.22 9608.82 11717.6 12842.8 14899.2 17295.1 19535.8
Input (kw) 1.9 2.5 3.6 4.3 5.1 5.57 5.96 6.76 7.66
Evap  -10℃ Cooling capacity (w) 3069.08 4387.31 6573.69 7849.24 9516.67 10446.9 12057.1 13997.1 16092.3
Input (kw) 1.85 2.48 3.5 4.21 5.02 5.48 5.96 6.56 7.46
Evap -15℃ Cooling capacity (w) 2443.43 3557.96 5297.17 6351.56 7645.54 8383.71 9596.21 11184.1 13201.7
Input (kw) 1.82 2.45 3.45 4.18 4.95 5.42 5.96 6.56 7.46
Evap  -20℃ Cooling capacity (w) 1895.38 2847.92 4216.59 5081.83 6056.68 6610.55 7458.33 8804.69 10767
Input (kw) 1.8 2.42 3.4 4.15 4.9 5.35 5.96 6.46 7.36
Evap -25℃ Cooling capacity (w) 1406.5 2231.97 3304.79 4006.1 4711.29 5086.68 5600.78 6788.06 8665.01
Input (kw) 1.75 2.4 3.37 4.1 4.87 5.3 5.86 6.46 7.36
Pipe Gas (inch) 3/4" 7/8" 5/8"
Liquid (inch) 3/8" 1/2" 1
Dimension (mm) 1370×650×870 1370×650×1370 1370×650×1570

UC Series Condensing Units with Copeland compressor
Model UCG02MZA UCG03MZA UCG04MZA UCG05MZA UCG06MZA UCG07MZA UCG08MZA UCG09MZA UCG10MZA
Room Temperature(℃)   -15℃ ~ 0℃
Refrigerant R404A/R448A/R449A
Power Supply 380V/3P/50HZ
Copeland Compressor Model ZB15KQE ZB21KQE ZB29KQE ZB38KQE ZB45KQE ZB48KQE ZB58KQE ZB66KQE ZB76KQE
HP 2 3 4 5 6 7 8 9 10
Condenser Fan Fan Qty 1 X Φ450 1 X Φ450 2 X Φ450 2 X Φ450 2 X Φ450 2 X Φ450 2 X Φ450 2 X Φ500 2 X Φ500
Fan voltage 220V/1P/50HZ  6poles
Condenser Heat exchange area (m2) 20.75 29.75 37.75 44.5 54.6 58.5 71.4 75.75 83.5
Condensing Capacity (kw) 5.4 7.74 9.82 11.57 14.2 15.21 18.56 19.7 21.71
Fin space (mm) 2 2 2 2 2 2 2 2 2
Evap     -0℃ Cooling capacity (w) 4300 6550 8900 11200 13100 14400 17500 19450 23250
Input (kw) 1.97 2.79 3.7 4.67 5.29 5.82 7.1 7.92 9.26
Evap     -5℃ Cooling capacity (w) 3600 5550 7450 9400 11000 12050 14600 16350 19500
Input (kw) 2.03 2.81 3.73 4.7 5.32 5.86 7.09 7.9 9.21
Evap   -10℃ Cooling capacity (w) 2950 4550 6200 7800 9150 10050 1200 13650 16200
Input (kw) 2.1 2.82 3.74 4.72 5.35 4.9 7.08 7.88 9.16
Evap   -15℃ Cooling capacity (w) 2400 3750 5100 6450 7550 8300 9650 11250 13250
Input (kw) 2.18 2.83 3.75 4.74 5.36 5.9 7.12 7.85 9.12
Pipe Gas (inch) 3/4" 7/8" 5/8"
Liquid (inch) 3/8" 1/2" 1
Dimension (mm) 1370×650×870 1370×650×1370


Model UCG02LZA UCG03LZA UCG04LZA UCG05LZA UCG06LZA UCG07LZA
Room Temperature(℃) -20℃ ~ -15℃
Refrigerant R404A
Power Supply 380V/3P/50HZ
Copeland Compressor Model ZSI06KQE ZSI09KQE ZSI11KQE ZSI15KQE ZSI18KQE ZSI21KQE
HP 2 3 4 5 6 7
Condenser Fan Fan Qty 1 X Φ450 1 X Φ450 2 X Φ400 2 X Φ400 2 X Φ400 2 X Φ400
Fan voltage 220V/1P/50HZ  6poles
Condenser Heat exchange area (m2) 21 30.3 37.2 45.5 54 59.2
Condensing Capacity (kw) 5.6 8 9.9 12.1 14.4 15.7
Fin space (mm) 2 2 2 2 2 2
Evap    -20℃ Cooling capacity (w) 2330 3240 4120 5930 7230 8060
Input (kw) 1.79 2.25 2.63 3.59 4.44 4.9
Evap    -25℃ Cooling capacity (w) 1880 2620 3340 4830 5910 6590
Input (kw) 1.73 2.2 2.57 3.44 4.28 4.74
Evap    -30℃ Cooling capacity (w) 1500 2070 2610 3790 4780 5350
Input (kw) 1.66 2.12 2.44 3.3 4.17 4.59
Pipe Gas (inch) 3/4" 7/8"
Liquid (inch) 3/8" 1/2"
Dimension (mm) 1370×650×870 1370×650×1370
