Advantages of Highly unit:
1. 0~30 degrees Celsius common storage temperature, no need to distinguish between medium and high temperature and low temperature
2. low compressor noise,The test result is only 60 decibels noise at a distance of one meter
3.R290 refrigerant low temperature inverter unit

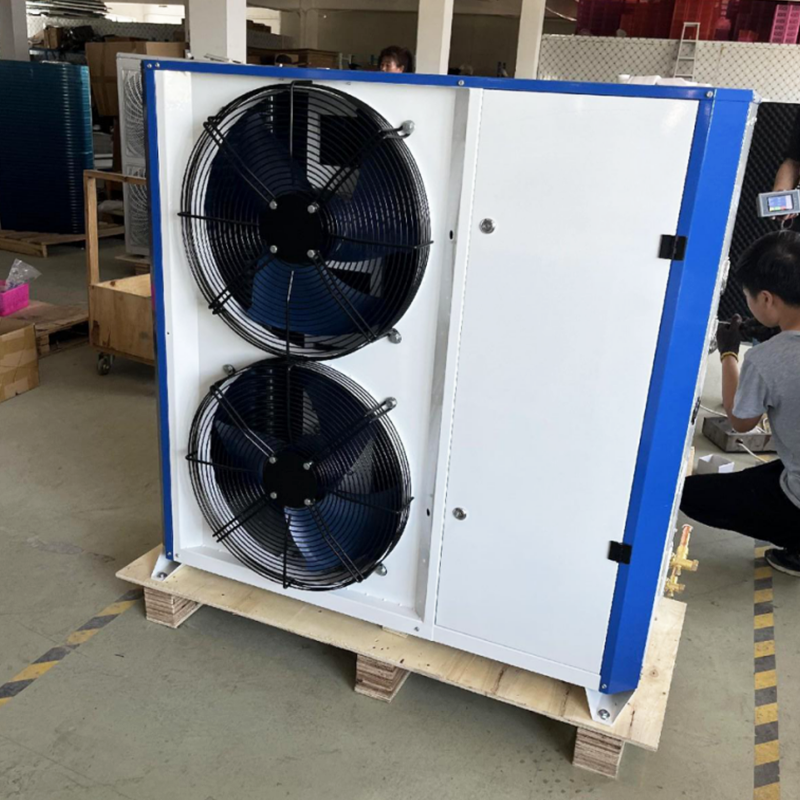

Inverter Low-temperature Condensing Unit(R404A)
| Model | UCILX-2H | UCILX-3H | UCILX-4H | UCILX-5H | UCILX-6H | UCILX-9H | ||
| Compressor Model | DTH254LDP | DTH307LDP | DTH356LDP | DTH420LDP | DTH550LDP | DTE752LKTQ | ||
| Compressor Operating Frequency | 30-85Hz | |||||||
| RangeApplicable Evaporation Temperature | +0～-40℃ | |||||||
| Unit Horsepower (PH) | 2 | 3 | 4 | 5 | 6 | 9 | ||
| Refrigerant | R404 | |||||||
| Power Supply | 1N-220V 50Hz | 3N-380V 50Hz | ||||||
| Fan（DC） | Fan Form | DC | DC | DC | DC | AC | AC | |
| Fan Blade Diameter | Ф480*1 | Ф480*1 | Ф480*2 | Ф480*2 | Ф500*2 | Ф500*2 | ||
| Number | 1 | 1 | 1 | 2 | 2 | 2 | ||
| Air volume | 1*6000 | 1*6000 | 1*6000 | 2*6000 | 2*7200 | 2*7200 | ||
| Air outlet method | Lateral outflow | |||||||
| Capacity (85Hz） |
Evaporating Tempe -5℃ | Cooling capacity(W) | 5534 | 6569 | 7535 | 8827 | 13885 | 17537 |
| Input(kW) | 2.21 | 2.65 | 3.05 | 3.65 | 5.75 | 7.02 | ||
| running current（A） | 9.64 | 11.56 | 13.31 | 15.93 | 11.42 | 13.9 | ||
| Evaporating Tempe -15℃ | Cooling capacity(W) | 3728 | 4375 | 4989 | 5942 | 9326 | 15123 | |
| Input(kW) | 1.98 | 2 | 2.73 | 3.25 | 4.66 | 6.77 | ||
| running current（A） | 8.64 | 8.73 | 11.92 | 14.18 | 9.26 | 13.45 | ||
| Evaporating Tempe -25℃ | Cooling capacity(W) | 2435 | 2857 | 3217 | 3796 | 6795 | 7826 | |
| Input(kW) | 1.72 | 2.06 | 2.4 | 2.85 | 3.32 | 6.02 | ||
| running current（A） | 7.51 | 8.99 | 10.47 | 12.44 | 6.59 | 11.96 | ||
| Evaporating Tempe -35℃ | Cooling capacity(W) | 1528 | 1831 | 2048 | 2336 | 4463 | 6132 | |
| Input(kW) | 1.47 | 1.77 | 2.03 | 2.45 | 4.12 | 5.61 | ||
| running current（A） | 6.41 | 7.23 | 8.86 | 10.69 | 8.19 | 11.14 | ||
| Interface pipe diameter | Outlet pipe | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 | 5/8“ | |
| Suction pipe | 5/8 | 5/8 | 3/4 | 3/4 | 3/4 | 7/8“ | ||
| Refrigeration Oil | 68HES-H | |||||||
| overall dimension: L*W*H(mm*mm*mm) | Package size | 1330*577*812 | 1330*577*812 | 1330*577*812 | 1330*577*1342 | 1330*577*1342 | 1330*577*1342 | |
| Unit size | 1277*510*667 | 1277*510*667 | 1277*510*667 | 1277*510*1196 | 1277*510*1196 | 1277*510*1196 | ||

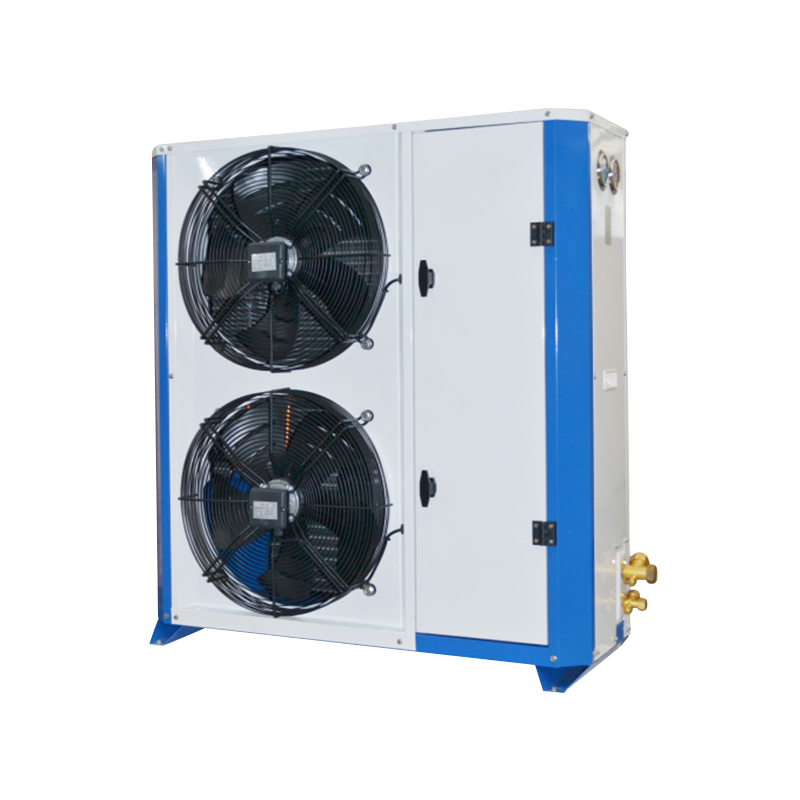

Inverter Low-temperature Condensing Unit R290
| Unit Model | UCILZ-02S | UCIZ-03S | UCIZ-04S | UCIZ-05S | UCIZ-07S | UCIZ-09S | ||
| Compressor Model | SONYO | C-7RVN113L0B | C-7RVN153L0B | C-8RZ420L4BAL | C-8RZ486L4AAL | C-9RZ580L4AAL | C-9RZ700L4AAL | |
| Compressor Operating Frequency Range | 30-85Hz | |||||||
| Applicable Evaporation Temperature | +0～-40℃ | |||||||
| Unit Horsepower (PH) | 2 | 3 | 4 | 5 | 7 | 9 | ||
| Refrigerant | R290 | |||||||
| Power Supply | 1N-220V 50Hz | 3N-380V 50Hz | ||||||
| Fan | Fan Form | DC | DC | DC | DC | AC | AC | |
| Fan Blade Diameter | Ф480*1 | Ф480*1 | Ф480*1 | Ф480*2 | Ф500*2 | Ф500*2 | ||
| Number | 1 | 1 | 1 | 2 | 2 | 2 | ||
| Air volume | 1*6000 | 1*6000 | 1*6000 | 2*6000 | 2*7200 | 2*7200 | ||
| Air outlet method | Lateral outflow | |||||||
| compressor capacity (30Hz） |
Evaporating Tempe -5℃ | Cooling capacity(W) | 1446.4 | 1747.2 | 2028.8 | 2393.6 | 3014.4 | 4441.6 |
| Input(kW) | 0.746 | 0.896 | 1.037 | 1.234 | 1.53 | 2.163 | ||
| running current（A） | 3.48 | 4.18 | 4.84 | 5.75 | 3.03 | 4.29 | ||
| Evaporating Tempe -15℃ | Cooling capacity(W) | 960.8 | 1160.8 | 1348 | 1590.4 | 2151.2 | 3068 | |
| Input(kW) | 0.665 | 0.798 | 0.924 | 1.099 | 1.454 | 2.011 | ||
| running current（A） | 3.1 | 3.72 | 4.31 | 5.12 | 2.88 | 3.99 | ||
| Evaporating Tempe -25℃ | Cooling capacity(W) | 614.4 | 741.6 | 861.6 | 1016 | 1468 | 2053.6 | |
| Input(kW) | 0.581 | 0.698 | 0.807 | 0.961 | 1.359 | 1.849 | ||
| running current（A） | 2.71 | 3.25 | 3.76 | 4.48 | 2.69 | 3.67 | ||
| Evaporating Tempe -35℃ | Cooling capacity(W) | 372 | 449.6 | 522.4 | 616 | 976.8 | 1470.4 | |
| Input(kW) | 0.396 | 0.496 | 0.539 | 0.681 | 1.118 | 1.673 | ||
| running current（A） | 1.84 | 2.31 | 2.51 | 3.17 | 2.22 | 3.32 | ||
| compressor capacity (50Hz） |
Evaporating Tempe -5℃ | Cooling capacity(W) | 2503.2 | 3024 | 3511.2 | 4143.2 | 5517.6 | 7875.2 |
| Input(kW) | 1.319 | 1.583 | 1.832 | 2.18 | 2.862 | 3.951 | ||
| running current（A） | 6.15 | 7.36 | 8.49 | 10.17 | 5.68 | 7.84 | ||
| Evaporating Tempe -15℃ | Cooling capacity(W) | 1664 | 2009.6 | 2333.6 | 2753.6 | 3947.2 | 5460.8 | |
| Input(kW) | 1.176 | 1.411 | 1.633 | 1.943 | 2.726 | 3.673 | ||
| running current（A） | 5.48 | 6.58 | 7.62 | 9.06 | 5.41 | 7.29 | ||
| Evaporating Tempe -25℃ | Cooling capacity(W) | 1063.2 | 1284 | 1491.2 | 1759.2 | 2495.2 | 3656 | |
| Input(kW) | 1.028 | 1.234 | 1.428 | 1.699 | 2.38 | 3.377 | ||
| running current（A） | 4.79 | 5.75 | 6.66 | 7.92 | 4.72 | 6.7 | ||
| Evaporating Tempe -35℃ | Cooling capacity(W) | 644.8 | 778.4 | 904 | 1066.4 | 1769.6 | 2524.8 | |
| Input(kW) | 0.777 | 0.861 | 0.987 | 1.103 | 1.757 | 2.446 | ||
| running current（A） | 3.62 | 4.01 | 4.6 | 5.14 | 3.48 | 4.85 | ||
| compressor capacity (70Hz） |
Evaporating Tempe -5℃ | Cooling capacity(W) | 4126.4 | 4984.8 | 5788 | 6829.6 | 9702.4 | 12827.2 |
| Input(kW) | 2.19 | 2.628 | 3.042 | 3.62 | 5.149 | 6.8 | ||
| running current（A） | 10.22 | 12.26 | 14.19 | 16.89 | 10.22 | 13.5 | ||
| Evaporating Tempe -15℃ | Cooling capacity(W) | 2743.2 | 3313.6 | 3847.2 | 4539.2 | 6526.4 | 8840 | |
| Input(kW) | 1.952 | 2.343 | 2.712 | 3.227 | 4.49 | 6.307 | ||
| running current（A） | 9.1 | 10.93 | 12.65 | 15.09 | 8.91 | 12.52 | ||
| Evaporating Tempe -25℃ | Cooling capacity(W) | 1752 | 2116 | 2456.8 | 2899.2 | 4780 | 6079.2 | |
| Input(kW) | 1.707 | 2.049 | 2.371 | 2.822 | 4.15 | 5.682 | ||
| running current（A） | 7.96 | 9.56 | 11.06 | 13.16 | 8.24 | 11.28 | ||
| Evaporating Tempe -35℃ | Cooling capacity(W) | 1062.4 | 1283.2 | 1490.4 | 1758.4 | 3431.2 | 4661.6 | |
| Input(kW) | 1.256 | 1.547 | 1.722 | 2.014 | 3.927 | 5.26 | ||
| running current（A） | 5.86 | 7.21 | 8.03 | 9.39 | 7.79 | 10.44 | ||
| compressor capacity (85Hz） |
Evaporating Tempe -5℃ | Cooling capacity(W) | 4427.2 | 5255.2 | 6028 | 7061.6 | 11108 | 14029.6 |
| Input(kW) | 2.21 | 2.65 | 3.05 | 3.65 | 5.75 | 7.02 | ||
| running current（A） | 9.64 | 11.56 | 13.31 | 15.93 | 11.42 | 13.9 | ||
| Evaporating Tempe -15℃ | Cooling capacity(W) | 2982.4 | 3500 | 3991.2 | 4753.6 | 7460.8 | 12098.4 | |
| Input(kW) | 1.98 | 2 | 2.73 | 3.25 | 4.66 | 6.77 | ||
| running current（A） | 8.64 | 8.73 | 11.92 | 14.18 | 9.26 | 13.45 | ||
| Evaporating Tempe -25℃ | Cooling capacity(W) | 1948 | 2285.6 | 2573.6 | 3036.8 | 5436 | 6260.8 | |
| Input(kW) | 1.72 | 2.06 | 2.4 | 2.85 | 4.32 | 6.02 | ||
| running current（A） | 7.51 | 8.99 | 10.47 | 12.44 | 6.59 | 11.96 | ||
| Evaporating Tempe -35℃ | Cooling capacity(W) | 1222.4 | 1464.8 | 1638.4 | 1868.8 | 3570.4 | 4905.6 | |
| Input(kW) | 1.47 | 1.77 | 2.03 | 2.45 | 4.12 | 5.61 | ||
| running current（A） | 6.41 | 7.23 | 8.86 | 10.69 | 8.19 | 11.14 | ||
| Interface pipe diameter | Outlet pipe interface | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 | 5/8“ | |
| Suction pipe interface | 5/8 | 5/8 | 3/4 | 3/4 | 3/4 | 7/8“ | ||
| overall dimension: L*W*H(mm*mm*mm) | Package size | 1330*577*812 | 1330*577*812 | 1330*577*812 | 1330*577*1342 | 1330*577*1342 | 1330*577*1342 | |
| Unit size | 1277*510*667 | 1277*510*667 | 1277*510*667 | 1277*510*1196 | 1277*510*1196 | 1277*510*1196 | ||
Test conditions; Condensation temperature=50 ℃;

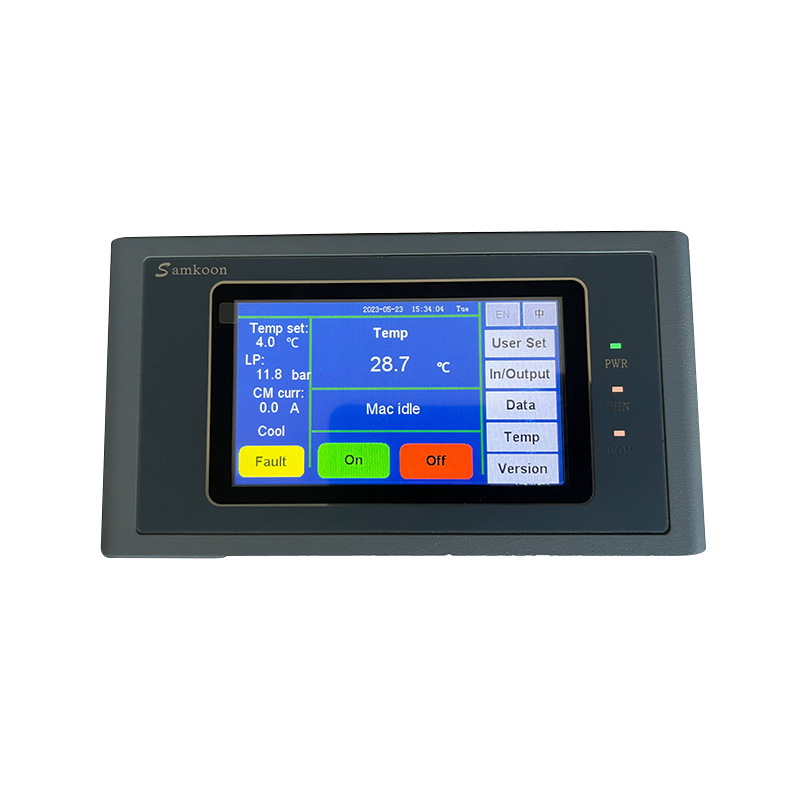

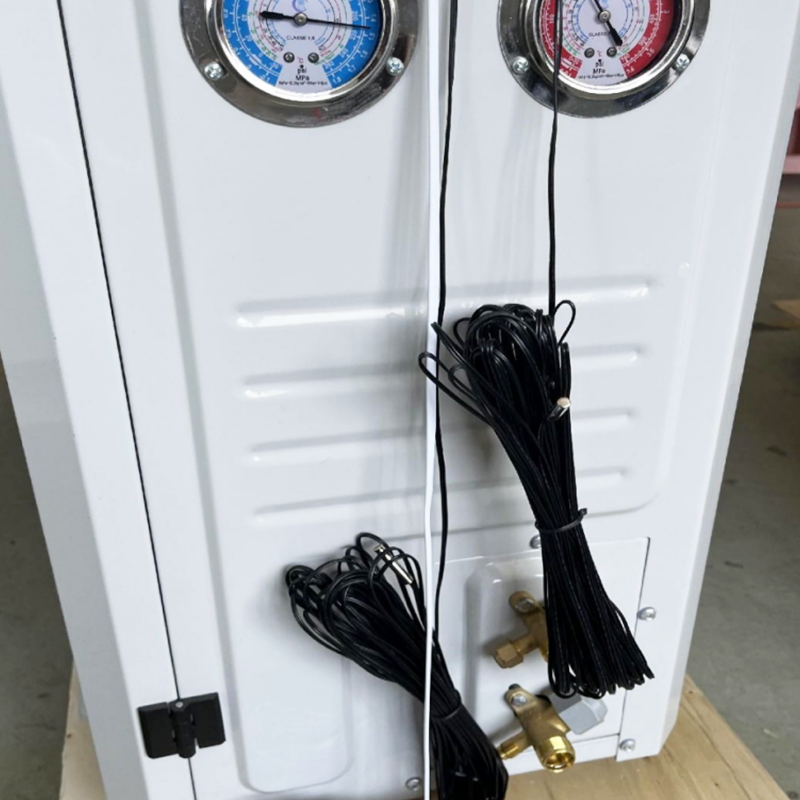

This unit has added a control scheme for indoor units, so there is no need to install another control box. It adopts a 4.3 inch industrial touch screen, high and low pressure sensors, and pressure gauges are connected with hoses. The liquid reservoir is equipped with a ball valve or angle valve, and electronic expansion valves are used for throttling;
Ningbo Ouyu Import & Export Co., Ltd. is the exporting branch of Briliant Refrigeration Equipment Co., Ltd. It is a manufacturer and factory specializing in the research, development, and design of large-scale refrigeration equipment, with more than 100 talented employees, including masters, researchers, engineering, and technical engineers.
As a professional OEM/ODM/OBM Inverter Low-temperature R290/R404A Condensing Unit suppliers and Inverter Low-temperature R290/R404A Condensing Unit company with more than 30 years, Ouyu has multiple modern industrial factories equipped with advanced production and processing equipment and complete manufacturing processes. We sell various brands of compressors, condensers, evaporators, condensing units, large and medium-sized parallel units as well as refrigeration accessories with good quality and competitive prices.
We have a complete production line and our products have been awarded ISO9001:2008 quality system certification, CE certification, National Industrial Product Manufacture Licence and Combined Refrigerated Agricultural Machinery Certificate.
