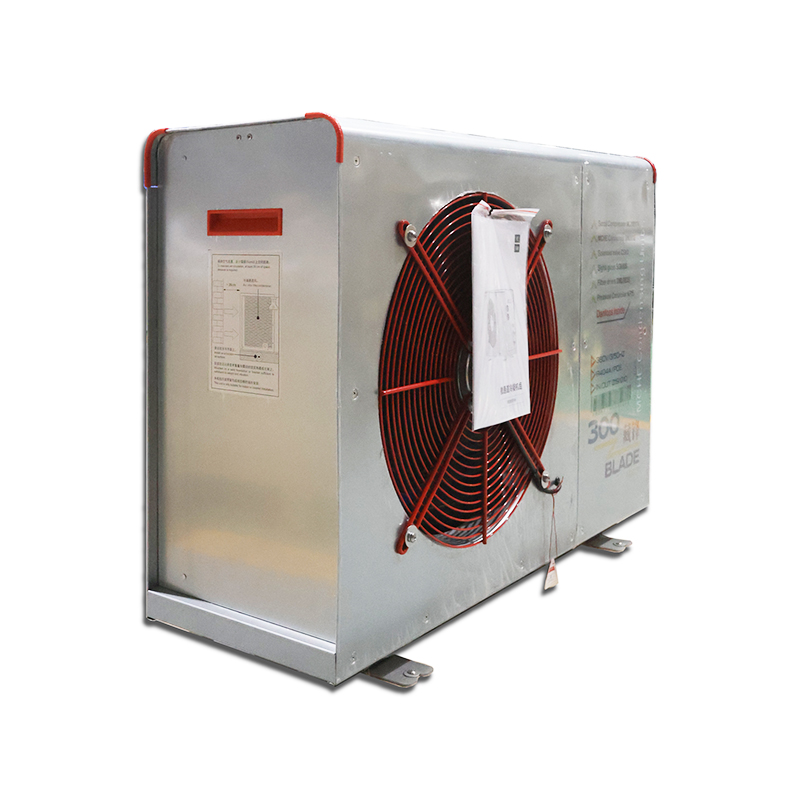

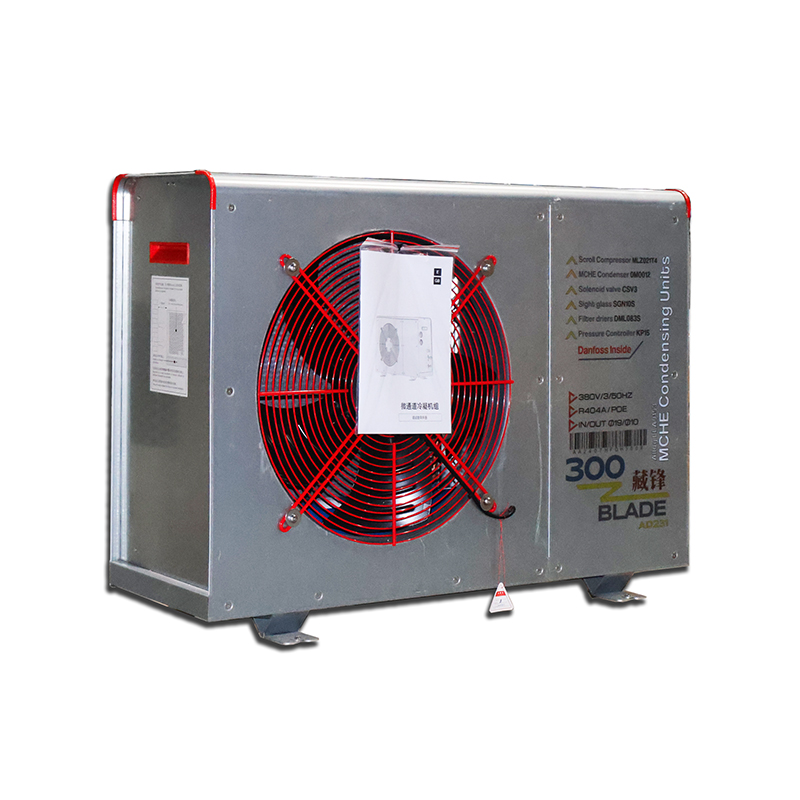

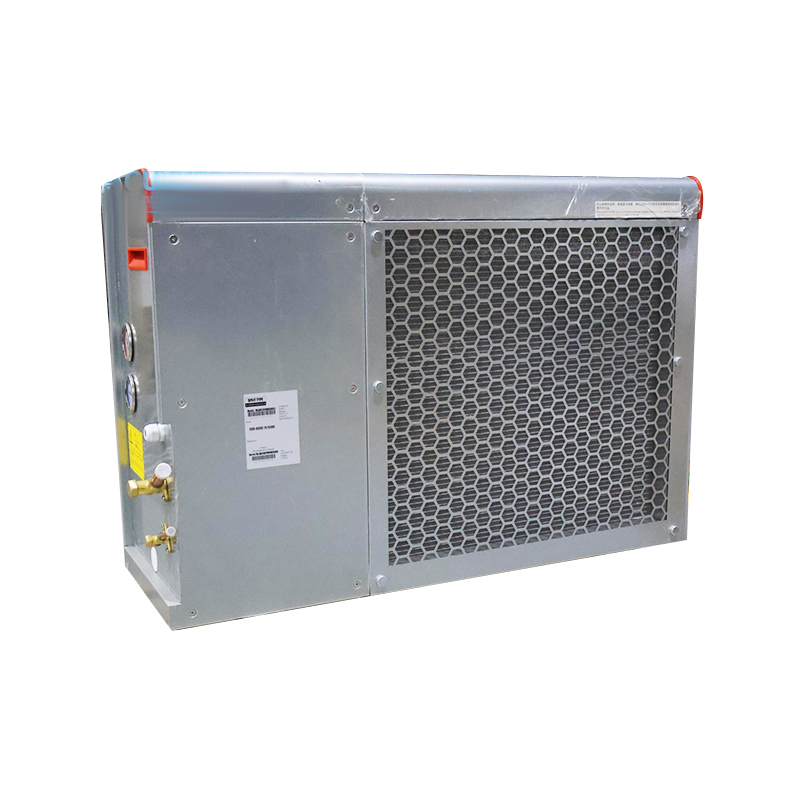

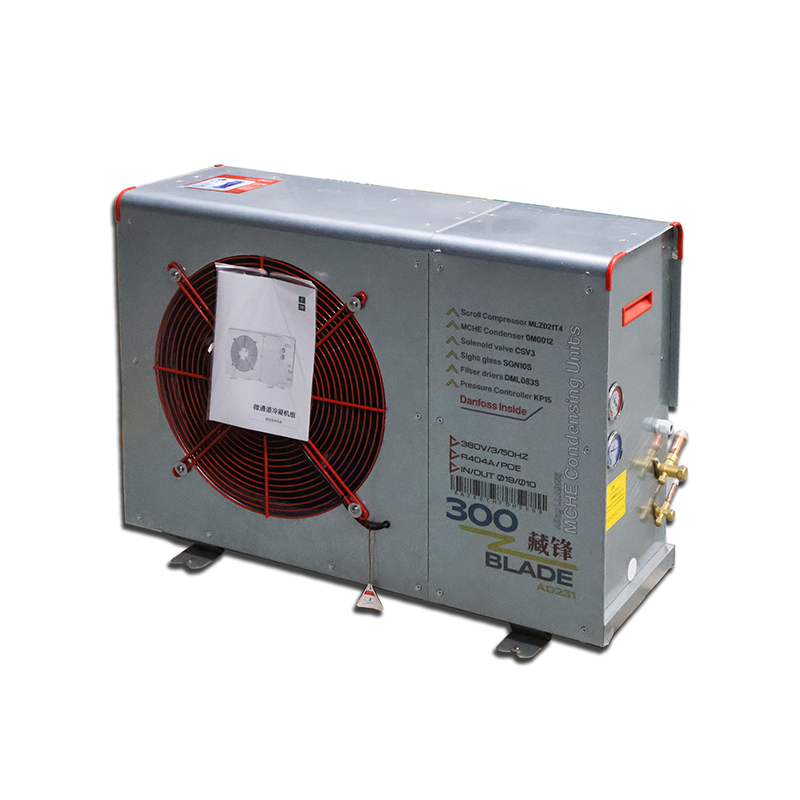

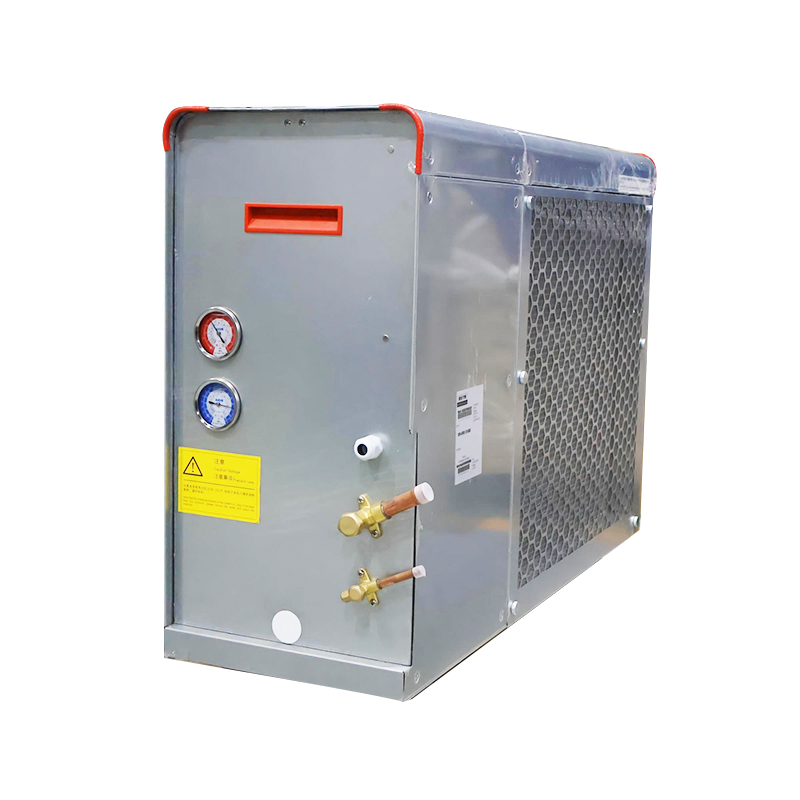

Danfoss Microchannel Condensing Units

Feature

Danfoss key components(Danfoss compressor, Danfoss Microchannel condenser, Danfoss solenoid valve, Danfoss pressure controller, Danfoss filter drier, Danfoss sight glass)
Danfoss Microchannel condensing units is a product that has always pursued low cost and high energy efficiency in the refrigeration field. It is a small-sized compact heat exchanger with high heat transfer coefficient, small refrigerant charge, corrosion resistance, environmental protection and noise reduction.
Suitable for various refrigerants such as R404A, R507A, R22, etc.

Product Description
1. The latest long-lasting alloy LLA9153 developed by Danfoss is used, which is corrosion-resistant.
2. The microchannel condenser is used to achieve a larger heat exchange area and higher heat exchange efficiency.
3. All accessories use Danfoss valves. Quality assurance.
4. The unit has passed the inspection of Danfoss official ADC test center. The test report can be provided.

CONTACT Download Catalog

Prev: BK Series Monoblock Condensing Unit

Next: Inverter Low-temperature R290/R404A Condensing Unit

Technical specification
About us
Get an inquiry

Medium and high temperature unit parameters

Model	Compressor Model	House Power	Capacity(KW)		Fan Motor			connection		Net weight（kg）
Model	Compressor Model	House Power	High Temp.	mid. Temp.	Dimension	Speed	Input Power(W)	In	Out	Net weight（kg）
MCD02MZ	MLZ015T4	2HP	3.32	1.18	φ500×1	930	248	3/4	1/2”	72.5
MCD03MZ	MLZ021T4	3HP	4.55	1.97	φ500×1	930	248	3/4	1/2"	72.5
MCD04MZ	MLZ030T4	4HP	6.82	2.94	φ550×1	895	366	3/4	1/2”	87
MCD05MZ	MLZ038T4	5HP	8.15	3.58	φ550×1	895	366	3/4	1/2"	87
MCD06MZ	MLZ045T4	6HP	9.88	4.16	φ630×1	903	420	7/8"	1/2"	101
MCD07MZ	MLZ048T4	7HP	10.85	4.44	φ630×1	903	420	7/8"	1/2”	101
MCD08MZ	MLZ058T4	8HP	12.52	4.78	Φ450×2	1372	251×2	1-1/8	5/8	115
MCD10MZ	MLZ076T4	10HP	16.7	7.89	φ500×2	1372	449×2	1-1/8	5/8	115

Hgh temperature evaporation temperature -10℃ ,condensation temperature 45℃ ,superheat 10K

Medium temperature evaporation temperature-28℃ ,condensatlon temperature 45℃ ,superheat 10K,with spray coolng

Low temperature unit parameters

Model	Compressor Model	House Power	High Temp.	Fan Motor			connection		Net weight（kg）
Model	Compressor Model	House Power	High Temp.	Dimension	Speed	Input Power（W）	Connection	Out	Net weight（kg）
MCD04LZ	LLZ013T4	4HP	4.26	φ550×1	895	366	3/4”	1/2”	88
MCD05LZ	LLZ015T4	5HP	5.09	φ550×1	895	366	3/4”	1/2”	88
MCD06LZ	LLZ018T4	6HP	6.07	φ630×1	903	420	7/8”	1/2”	89
MCD08LZ	LLZ024T4	8HP	7.62	φ450×2	1372	251*2	1-1/8”	5/8”	115
MCD10LZ	LLZ034T4	10HP	10.23	φ500×2	1332	449*2	1-1/8”	5/8”	120

Low temperature:evaporation temperature -33℃ ,condensation temperature 45℃ ,superheat 10K
