Mitsubishi Fixed Speed Compressor Supplier

Home / Product / Air Conditioner Compressor / Mitsubishi Fixed Speed Compressor

Product Category

Mitsubishi Fixed Speed Compressor
  • Mitsubishi Fixed Speed Compressor
  • Mitsubishi Fixed Speed Compressor

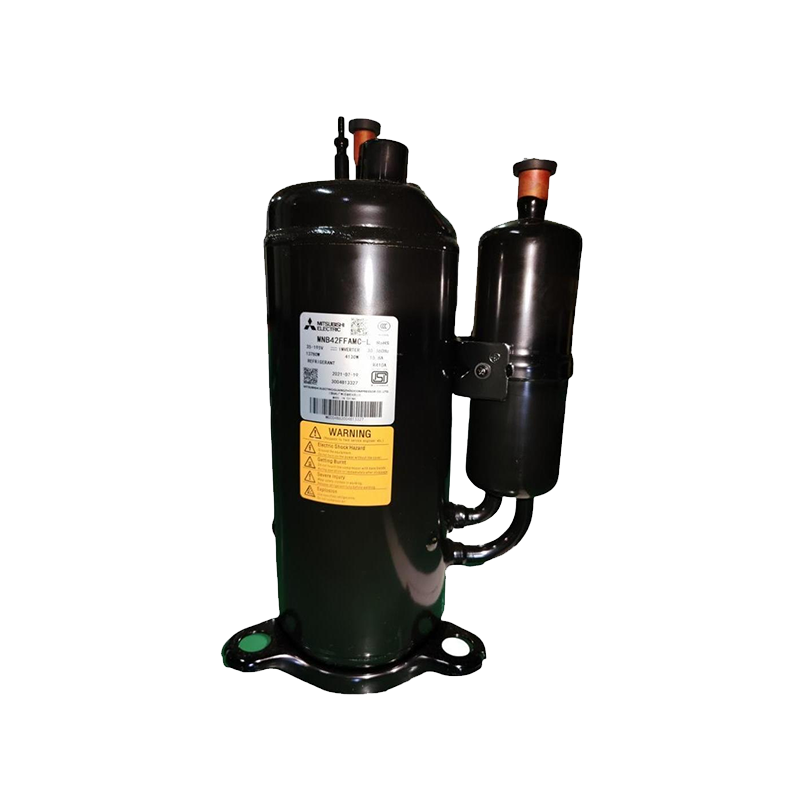

Mitsubishi Fixed Speed Compressor

Feature
Can reduce friction loss, improve work efficiency
Reduce noise range, decrease noise volume
Equipped with Mitsubishi Electric's innovative technology, capable of dual channel supercharging injection
Low vibration noise, high reliability
Application field: VRFChiller commercial multi air conditioner
CONTACT Download Catalog
  • Technical specification
  • About us
  • Get an inquiry
Series Model Displ. Capacity Power  COP Capacitor Dimension(A) Dimension(B)
cm3/rev w Btu/h w w/w μF/V mm mm
K KN083VAMMC 8.3 2,010 6,858 695 2.89 25/380 268.2 234.8
KN092VEHMC 9.2 2,260 7,711 795 2.84 25/400 263.2 234.8
KN104VGMMC 10.4 2,520 8,598 880 2.86 25/400 264.7 239.3
R RN125VHFMC 12.5 3,100 10,577 1,030 3.01
30/400
264.9
240.8
RN135VHEMC
13.5
3,340
11,396
1,120
2.98
30/400
287.5
260.5
RN145VHEMC
14.5
3,610
12,317
1,210
2.98
30/400
287.5
260.5
RN196VHEMC
19.6
4,800
16,378
1,680
2.86
40/400
287.5
260.5
RN199VHRMC
19.9
4,770
16,275
1,620
2.94
45/400
294.8
278
RN211VHFMC
21.1
5,230
17,845
1,730
3.02
50/400
294.8
260.5
RN222VHFMC
22.2
5,470
18,664
1,810
3.02
50/400
294.8
260.5
T
TN220VQEMC
22
5,380
18,357
1,840
2.92
50/400
336.1
279.8
L
LN28VBRMC
28.4
7,050
24,055
2,310
3.05
60/390
381.8
340.9
LN30VBRMC
30.2
7,680
26,204
2,470
3.11
60/420
381.8
340.9
LN32VBRMC
32.8
8,320
28,388
2,680
3.1
60/420
381.8
340.9
LN38VBRMC
38
9,700
32,980
3,160
3.07
60/420
381.8
340.9
LN42VBRMC
42.8
10,530
35,907
3,510
3
60/420
381.8
340.9

Series Model Displ. Capacity Power COP fRange Dimension(A) Dimension(B)
cm3/rev w Btu/h w w/w rps mm mm
K KNB073FCKMC 7.3 2,250 7,677 690 3.26 15-115 213 234.5
KNB092FADMC 9.2 2,925 9,980 850 3.44 15-115 235.9 248.5
KNB120FACMC 12 3,545 12,096 1,120 3.17 15-115 242.2 252.3
S SNB140FCAMC 14 4,380 14,945 1,300 3.37 10-120 254.2 271.5
SNB150FGAMC 15 4,620 15,763 1,420 3.25 10-130 259.2 283
SNB172FNQMC 17.2 5,430 18,425 1,770 3.07 10-130 255.7 279.5
SNB200FGMMC 20 6,220 21,223 1,840 3.38 10-120 259.2 283
SNB220FBGMC 22 6,840 23,338 2,060 3.32 10-120 287.5 283
SYB280FARMC 28 8,900 30,367 2,650 3.36 15-120 332.4 306.6
T TNB220FFEMC 22 6,940 23,679 2,150 3.23 10-110 267.1 317.5
TNB306FPNMC 30.6 9,880 33,711 3,010 3.28 10-120 294.8 273
M MNB33FEBMC 33.8 10,830 36,952 3,260 3.32 10-120 374 344
MNB40FEQMC 40 12,900 44,015 3,960 3.26 10-120 374 356
MNK42FDMMC-L 42.1 13,000 44,356 4,280 3.04 10-120 390 344
MNB42FCKMC 42.1 13,780 47,017 4,040 3.41 10-120 390 344
L LNB42FSCMC 42.9 13,980 47,700 4,240 3.3 10-120 376.8 353.4
LNB53FDKMC 53.7 16,835 57,441 5,480 3.07 10-120 421.3 407.4
LNB65FAGMC 65.2 19,760 67,421 6,460 3.06 10-120 421.3 423.8
LNB80FAMMC 80.6 23,155 79,005 8,185 2.83 10-130 421.3 423.8
