GMCC Rotary Compressor For Air Conditioner Supplier

Home / Product / Air Conditioner Compressor / GMCC Rotary Compressor For Air Conditioner

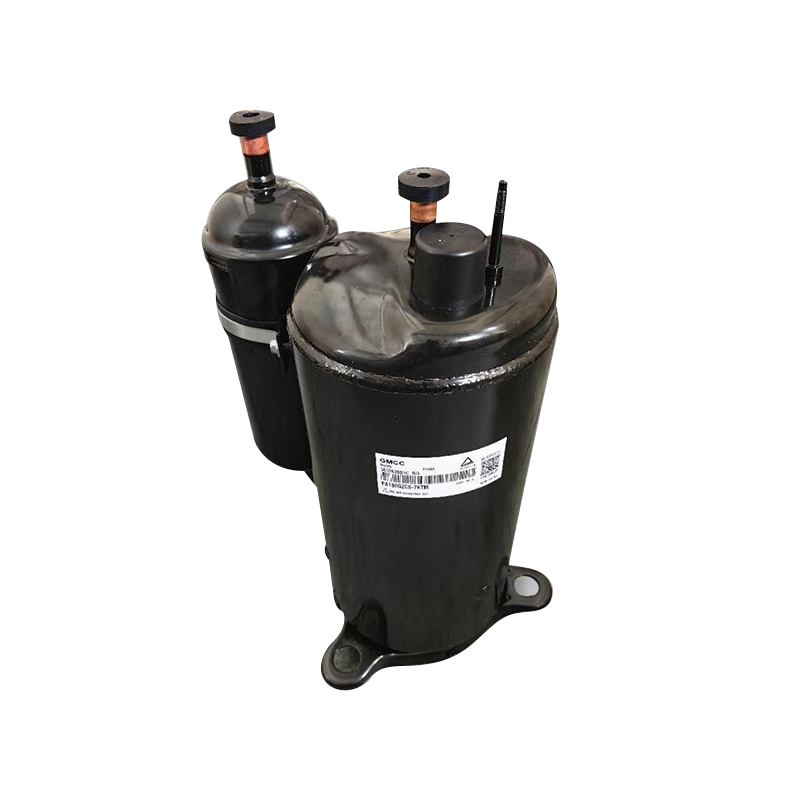

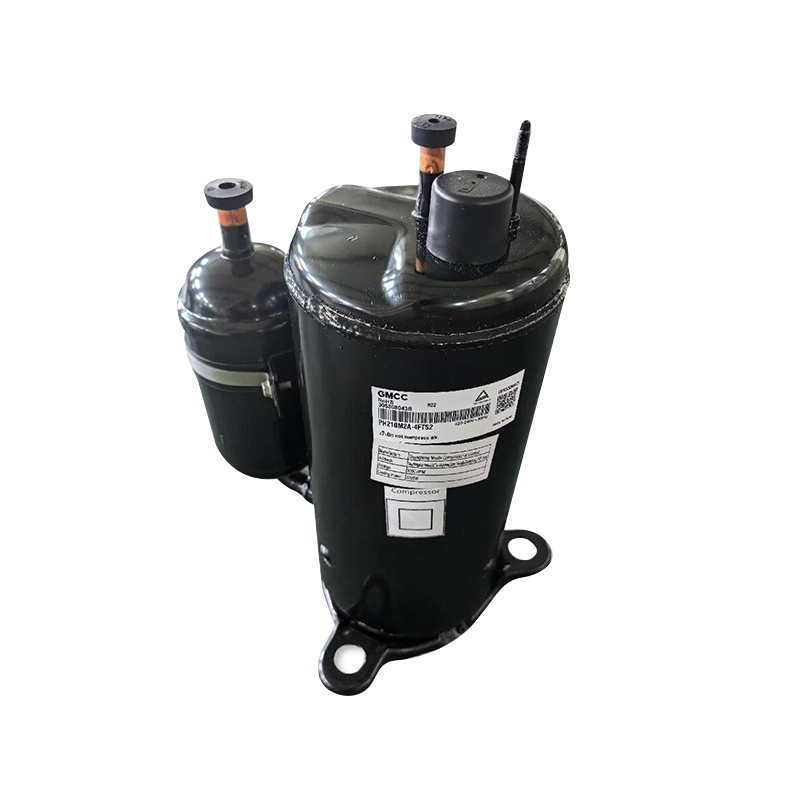

GMCC Rotary Compressor For Air Conditioner
  • GMCC Rotary Compressor For Air Conditioner
  • GMCC Rotary Compressor For Air Conditioner

GMCC Rotary Compressor For Air Conditioner

Feature
1. Increase heating capacity by 85% in an ambient temperature of -15 ° C and achieve a 50C air outlet;
2. Fast cooling and heating, reducing time by half;
3. Efficient operation of differential jet without clearance and high APF energy efficiency;
4. 2x capacity, half speed operation, achieving high capacity while avoiding high-frequency noise issues
  • Technical specification
  • About us
  • Get an inquiry
Series Typical Model  Displ.    (cm3 /rev) Cooling Capacity Power   (W) COP  (W/W) Capacitor      ( µ  F/V) Compresspr Height   (mm) Discharge Pipe ID  (mm) Suction Pipe ID  (mm)
(W) (Btu/h)
SK ASK75D43UEZ 7.5  2225 7592 582 3.82  - 238 8.1 9.8
ASK89D53UEZ 8.9  2670 9110 688 3.88  - 258 8.1 9.8
SN ASN98D22UFZA 9.7  2920 9963 745 3.92  - 250 8.1 12.9
ASN98D32UFZ 9.7  2920 9963 740 3.95  - 250 8.1 12.9
ASN108D22UFZ 10.8  3260 11123 832 3.92  - 250 8.1 12.9
ASN108D32UFZ 10.8  3260 11123 825 3.95  - 250 8.1 12.9
ASN133D42UFZ 13.3  4000 13648 1000 4.00  - 260 8.1 12.9
ASN140D21UFZ 14.0  4225 14416 1085 3.90  - 262 8.1 12.9
SF ASF235D28UMT 23.5  7100 24225 1810 3.92  - 333 8.1 16.2


TN ATN110D42UFZ 11.0  3285 11208 825 3.98  - 250 8.1 12.9
ATN130D42UFZ 13.1  3905 13324 975 4.00  - 250 8.1 12.9
ATN130D30UFZ 13.1  3900 13307 1005 3.88  - 250 8.1 12.9
ATN150D30UFZA 14.9  4500 15354 1155 3.90  - 270 8.1 12.9
ATN150D42UFZ 14.9  4480 15286 1120 4.00  - 280 8.1 12.9
TF ATF200D22UMT 20.1  6075 20728 1710 3.55  - 333 9.8 16.2
ATF235D22UMT 23.5  7135 24345 1955 3.65  - 333 9.8 16.2
ATF235D43UMT 23.5  7140 24362 1940 3.68  - 333 9.8 16.2
ATF250D22UMT 25.1  7645 26085 2080 3.68  - 333 9.8 16.2
ATF310D43UMT 30.8  9490 32380 2600 3.65  - 333 9.8 16.2
ATF400D64UMV 39.8  12285 41916 3365 3.65  - 365 9.8 16.2
ATF400D66UMV 39.8  12285 41916 3235 3.80  - 365 9.8 16.2
TQ ATQ360D1UMU 36.3  11200 38214 3040 3.68  - 406 9.8 16.2
ATQ420D1UMU 41.5  12960 44220 3485 3.72  - 406 9.8 16.2
ATQ420D2UMU 41.5  12960 44220 3430 3.78  - 406 9.8 16.2
ATQ420D1UNU1 41.9  13040 44492 3435 3.80  - 406 9.8 22.2
ATQ580D66UNT 57.9  18750 63975 4910 3.82  - 430 12.9 22.2
