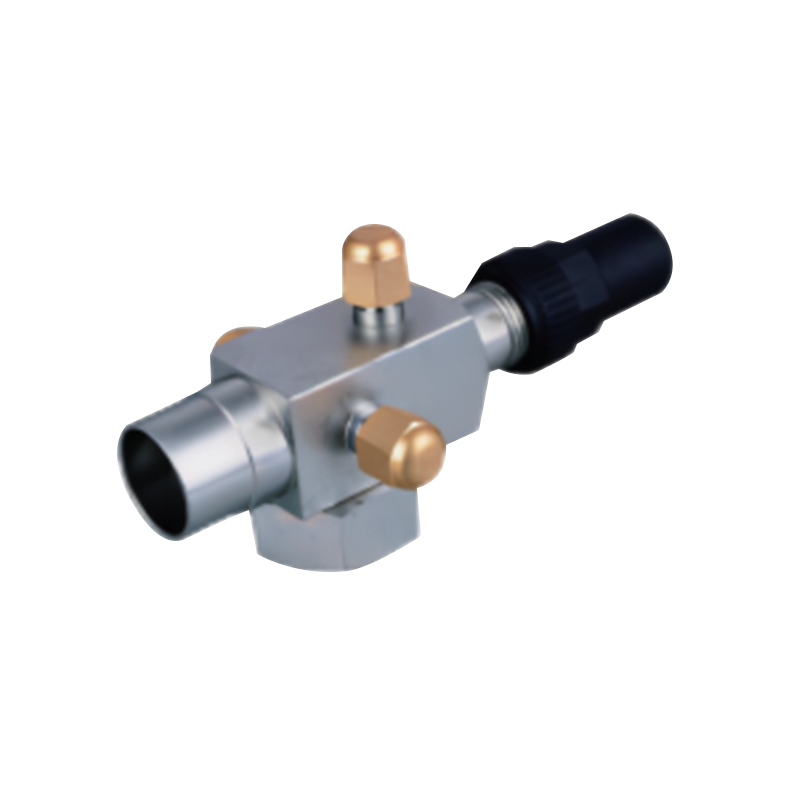

Welding Rotary Lock Three-way Valve

Feature

Note:
1.The maximum working air pressure:4.5Mpa,hydraulic pressure:6.8Mpa;

2.Suitable medium:R22、R502、R407c、R410a、R134a、R404a、R600a etc.refrigerants andother refrigerating oil;

3.Suitable temperature:-40°~140°4.The valve series are on the CE and UL list: CE1282

CONTACT Download Catalog

Prev: Welding Rotary Lock Joint Valve

Next: Magnetic Check Valve

Technical specification
About us
Get an inquiry

Mode 1	“□”, mm × mm	Rotalock Connection	ODS		I mm	H mm	J mm	L mm
			mm	inch.
WRVO1	□20	3/4"-16UNF SW22	6	——	8	20	33	104
WRV02			——	1/4"
WRV03			10	——			35	106
WRV04			——	3/8"
WRV05			12	——
WRV06			——	1/2"
WRV07	□20	1"-14UNF SW30	6	——	12	22	32.5	104
WRV08			——	114
WRV09			10	——			34.5	106
WBV10			——	3/8"
WBV11			12	——
WRV12			——	1/2"
WRV13			16	5/8"
WRV14			19	——			37.5	109
WRV15			——	3/4"
WRV16	□22	1-1/4"-12UNF SW36	12	——	13.5	22	34	107
WRV17			——	1/2
WRV18			16	5/8"			36	109
WRV19			19	——			39	112
WRV20			——	3/4"
WRV21	□30		19	——	19	28	49.5	142
WRV22			——	3/4"
WRV23			22	7/8"
WRV24			28	——			52.5	145
WRV25			——	1-1/8"
WBV26		1-3/4"-12UNF SW50	19	——			49.5	142
WBV27			——	3/4"
WRV28			22	7/8"
WRV29			28	——			52.5	145
WRV30			——	1-1/8"
WBV31	□36		28	——	27	31	59	185
WBV32			——	1-1/81
WRV33			35	1-3/81			61	187
WBV34			42	——			65	191
WBV35			——	1-5/8"
WBV36	□50	2-1/4"-12UNF SW65	35	1-3/8"	35	43	72.5	201
WBV37			42	——			74.5	203
WRV38			——	1-5/8'
WBV39			54	2-1/8"			76.5	205

About Ningbo Ouyu Import & Export Co., Ltd.

Ningbo Ouyu Import & Export Co., Ltd. is the exporting branch of Briliant Refrigeration Equipment Co., Ltd. It is a manufacturer and factory specializing in the research, development, and design of large-scale refrigeration equipment, with more than 100 talented employees, including masters, researchers, engineering, and technical engineers.

As a professional OEM/ODM/OBM Welding Rotary Lock Three-way Valve suppliers and Welding Rotary Lock Three-way Valve company with more than 30 years, Ouyu has multiple modern industrial factories equipped with advanced production and processing equipment and complete manufacturing processes. We sell various brands of compressors, condensers, evaporators, condensing units, large and medium-sized parallel units as well as refrigeration accessories with good quality and competitive prices.

We have a complete production line and our products have been awarded ISO9001:2008 quality system certification, CE certification, National Industrial Product Manufacture Licence and Combined Refrigerated Agricultural Machinery Certificate.
