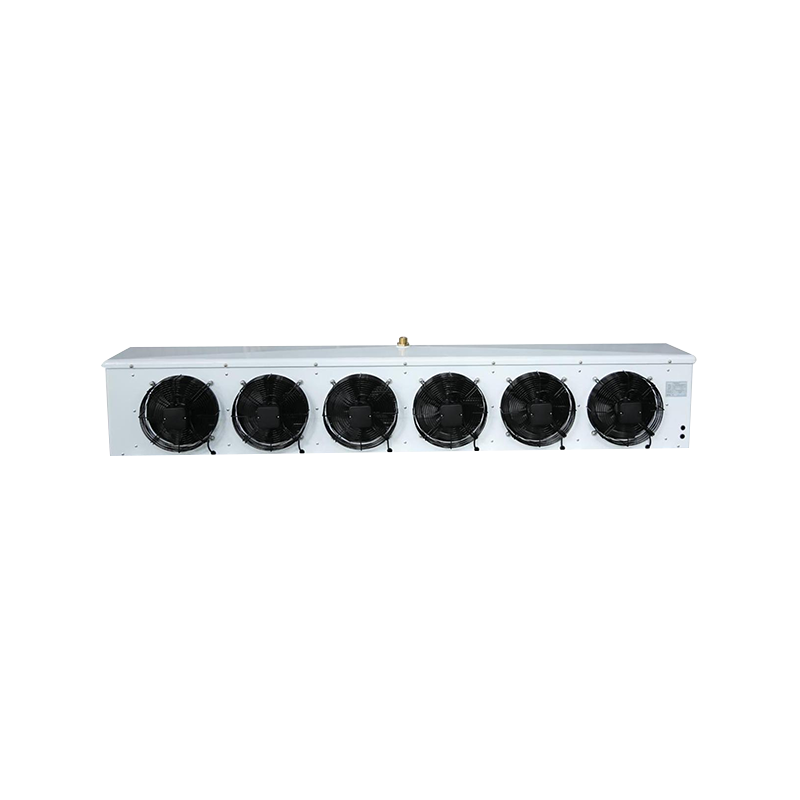

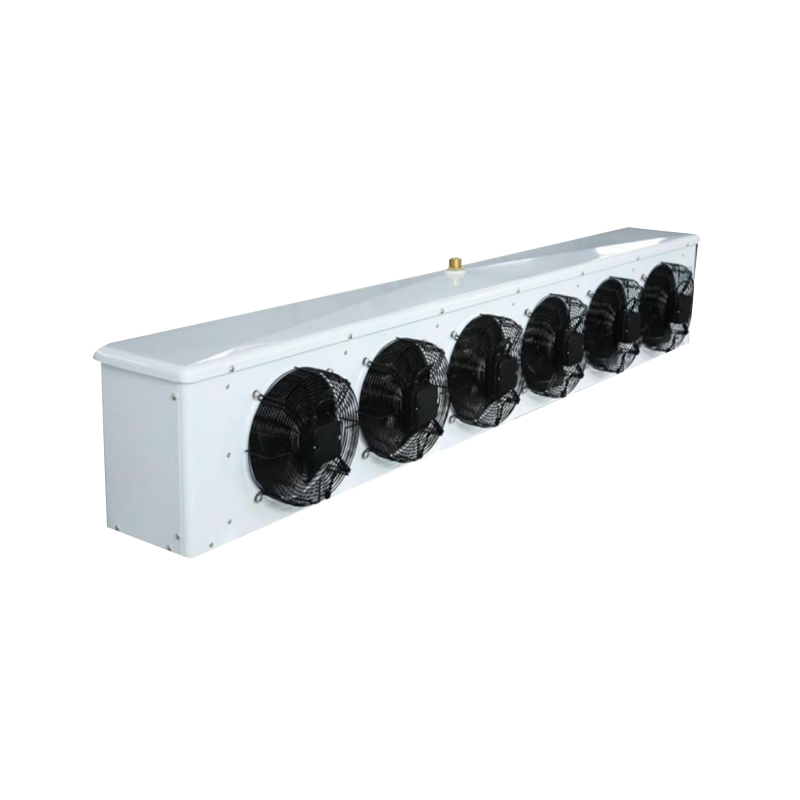

UCEA Series Evaporator
  • UCEA Series Evaporator
  • UCEA Series Evaporator

UCEA Series Evaporator

Feature
High efficiency is achieved through uniform separation and optimized temperature differences.
Features:
1. It has sufficient cooling capacity and sufficient heat exchange area to show the performance.
The system is safer and more reliable.
2. Easy to maintain, reducing downtime and service complexity.
3. Aluminum shell, lightweight structure.
4. The greater the air volume, the faster the cooling speed, the faster the reaction speed, and the more effective temperature control.
Junction box type: Junction box fish-shaped design.
  • Technical specification
  • About us
  • Get an inquiry
Fin spacing 4 mm, with heater Rt≥0ºC
Model Capacity
(kw)
Surface Tube Volume (dm3) N.W Connection
(0 mm)
te = -8°C te = -25°C (m2) (kg) inlet outlet
DT1 =8K DT1=7K
UCEA 2501 09 4D 1.45 1 8.3 1.4 12.1 12 16
UCEA  2502 174D 2.98 2.09 16.7 2.8 20.9 12 19
UCEA  2503 26 4D 4.52 3.18 25.1 4.2 29.5 12 22
UCEA  2504 35 4D 5.62 3.71 33.5 5.6 38.3 12 22
UCEA  2506 52 4D 9.14 6.48 50.2 8.5 55.8 15 28
UCEA  3001 12 4D 1.79 1.55 11.1 1.9 14.7 12 19
UCEA  3002 23 4D 4.65 3.57 22.3 3.8 25.5 12 22
UCEA  3003 35 4D 7.2 5.37 33.5 5.6 36.1 12 22
UCEA 3004 46 4D 9.5 6.7 44.6 7.5 46.8 15 28
UCEA  3006 69 4D 14.06 9.69 67 11.3 68.3 15 28
UCEA  4001 20 4D 4.61 3.7 19.9 3.4 23.6 12 19
UCEA  4002 40 4D 9.99 7.43 39 6.6 42.3 12 22
UCEA  4003 54 4D 13.41 9.39 52.1 8.8 57.3 15 28
UCEA  4004 81 4D 20.1 15.01 78.1 13.2 80.4 15 35
UCEA  4501 31 4D 7.93 6.31 29.7 5 30.9 12 22
UCEA  4502 61 4D 15.89 11.03 59.5 10 56.5 15 28
UCEA  4503 92 4D 24.7 18.4 89.3 15 82 15 35
UCEA  5001 39 4D 10.47 8.35 37.8 6.4 51.9 15 28
UCEA  5001 58 4D 13.66 10.46 56.6 9.5 61.4 15 28
UCEA  5002 81 4D 21.1 14.45 78.1 13.2 95.5 22 35
UCEA  5002 121 4D 25.57 16.74 117.2 19.7 114.9 22 35
UCEA  5003 122 4D 33.7 24.76 119.7 20.1 139.5 28 42
UCEA  5003 183 4D 40.54 27.26 179.5 30.2 168.9 28 42

Fin spacing 6 mm, with heater Rt>-18°C
Model Capacity
(kw)
Surface Tube Volume (dm3) N.W Connection
(0 mm)
te = -8°C te = -25°C (m2) (kg) inlet outlet
DT1 =8K DT1=7K
UCEA 2501 06 6D 1.29 0.9 5.7 1.4 11.8 12 16
UCEA 2502 11 6D 2.64 1.87 11.5 2.8 20.2 12 19
UCEA 2503 17 6D 3.99 2.85 17.3 4.2 28.5 12 22
UCEA 2504 23 6D 5.06 3.39 23 5.6 37.1 12 22
UCEA 2506 35 6D 8.04 5.72 34.5 8.5 53.8 15 28
UCEA 3001 08 6D 1.39 1.23 7.6 1.9 14.2 12 19
UCEA 3002 15 6D 3.78 2.92 15.3 3.8 24.6 12 22
UCEA 3003 23 6D 6.09 4.56 23 5.6 34.9 12 22
UCEA 3004 31 6D 8.16 5.83 30.7 7.5 45.2 15 28
UCEA 3006 46 6D 12.16 8.52 46.1 11.3 65.6 15 28
UCEA 4001 13 6D 3.62 2.96 13.7 3.4 22.8 12 19
UCEA 4002 27 6D 8.47 6.36 26.8 6.6 40.9 12 22
UCEA 4003 36 6D 11.63 8.25 35.8 8.8 55.3 15 28
UCEA 4004 54 6D 17 12.82 53.7 13.2 77.5 15 35
UCEA 4501 20 6D 6.59 5.17 20.4 5 29.7 12 22
UCEA 4502 41 6D 13.67 9.66 40.9 10 54.2 15 28
UCEA 4503 61 6D 20.81 15.61 61.4 15 78.6 15 35
UCEA 5001 26 6D 8.72 6.93 26 6.4 50.5 15 28
UCEA 5001 39 6D 11.9 9.15 39 9.5 59.3 15 28
UCEA 5002 54 6D 18.29 12.76 53.7 13.2 92.6 22 35
UCEA 5002 81 6D 23.25 15.51 80.6 19.7 110.5 22 35
UCEA 5003 82 6D 28.55 21.16 82.3 20.1 134.9 28 42
UCEA 5003 122 6D 36.53 24.97 123.5 30.2 162.2 28 42


Fin spacing 9 mm, with heater Rt>-25°C
Model Capacity
(kw)
Surface Tube Volume (dm3) N.W Connection
(0 mm)
te = -8°C te = -25°C (m2) (kg) inlet outlet
DT1 =8K DT1=7K
UCEA 2501 04 9D 1.08 0.77 4 1.4 11.4 12 16
UCEA 2502 08 9D 2.2 1.58 8 2.8 19.4 12 19
UCEA 2503 12 9D 3.32 2.4 12 4.2 27.4 12 22
UCEA 2504 169D 4.31 2.96 16.1 5.6 35.5 12 22
UCEA 2506 24 9D 6.69 4.85 24.1 8.5 51.4 15 28
UCEA 3001 06 9D 1.06 0.95 5.3 1.9 13.7 12 19
UCEA 3002 10 9D 2.94 2.3 10.7 3.8 23.6 12 22
UCEA 3003 16 9D 5 3.7 16 5.6 33.3 12 22
UCEA 3004 21 9D 6.76 4.91 21.4 7.5 43.1 15 28
UCEA 3006 31 9D 10.14 7.29 32.1 11.3 62.5 15 28
UCEA 4001 09 9D 2.77 2.3 9.6 3.4 21.9 12 19
UCEA 4002 189D 6.93 5.21 18.7 6.6 39 12 22
UCEA 4003 24 9D 9.7 6.97 25 8.8 52.9 15 28
UCEA 4004 36 9D 13.91 10.47 37.5 13.2 73.8 15 35
UCEA 4501 149D 5.19 4.03 14.3 5 28.3 12 22
UCEA 4502 28 9D 11.36 8.12 28.5 10 51.4 15 28
UCEA 4503 41 9D 16.98 12.79 42.8 15 74.4 15 35
UCEA 5001 179D 6.99 5.4 18.1 6.4 48.7 15 28
UCEA 5001 26 9D 10.03 7.62 27.2 9.5 56.6 15 28
UCEA 5002 36 9D 15.28 10.81 37.5 13.2 88.8 22 35
UCEA 5002 54 9D 20.33 13.81 56.2 19.7 104.9 22 35
UCEA 5003 54 9D 23.36 17.44 57.4 20.1 129.3 28 42
UCEA 5003 82 9D 31.61 21.95 86.1 30.2 153.7 28 42
