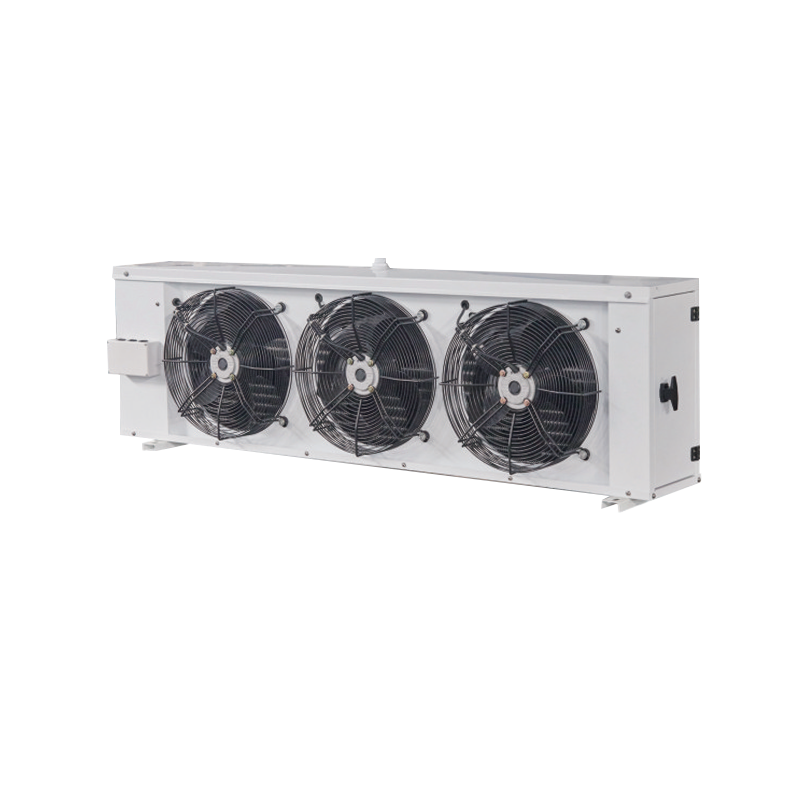

UC Series Evaporator (Air Cooler)
  • UC Series Evaporator (Air Cooler)

UC Series Evaporator (Air Cooler)

Feature
Evaporator Characteristics:
Tube and Fin Design:
Material: High-efficiency aluminum fins and copper tube.
Tube Diameter: Options for φ9.52mm or φ14mm.
Series Classification:
UCL Series: For fresh storage (temperature range: -5 to +5℃).
UCD Series: For refrigerated storage (temperature range: -15 to -20℃).
UCJ Series: For freezer rooms (temperature <-25℃).
Design Elements:
End Plate Design: Two sides end plate and water drain plate designed in an open type for maintenance convenience.
Shell Design: Front shell with inner concave design for aesthetics, overall shell with multi-folded design for high strength and less vibration.
Optimized Copper Pipeline:
Redesigned copper pipeline for high heat exchange efficiency.
Axial Fan Motor:
Type: Assembling axial fan motor with high efficiency and low energy consumption.
Suitability: Designed to operate efficiently in complex environments.
CONTACT CATALOG PDF
  • Technical specification
  • About us
  • Get an inquiry
UCL Type Air Cooler Specification
Model Capacity Area Tube
Volume		 Piping Size Fan Motor Elctric Defrost Overall Size（mm） Installation Size
te=0℃ te=-8℃ Quantity Diameter power Voltage Air Flow Coil Water tray
DT1=10K DT1=8K Liquid Gas A B C D E
w w mm mm pcs mm w v ㎥/h kw kw
UCL-2.0/10 2000 1428 10 1.77 φ12 φ16 1 φ350 1X190 380 1X3100 1*0.5 1*0.5 765 430 480 355 540
UCL-3.0/15 3000 2142 15 3.04 φ12 φ16 2 φ350 2X190 380 2X3100 1*0.9 1*0.9 1165 430 480 355 940
UCL-5.0/25 5000 3800 25 4.46 φ12 φ16 3 φ350 3X190 380 3X3100 1*1.2 1*1.2 1165 430 480 355 940
UCL-8.0/40 8000 6150 40 5.95 φ16 φ25 2 φ400 2X227 380 2X4000 2*1.3 1*1.3 1590 530 560 445 1255
UCL-11.2/55 11200 8600 55 7.93 φ16 φ25 2 φ400 2X227 380 2X4000 2*1.3 1*1.3 1590 530 560 445 1255
UCL-16.2/80 16200 12450 80 11.74 φ19 φ38 2 φ500 2X448 380 2X6500 2*1.3 1*1.3 1890 590 660 505 1555
UCL-21.3/105 21300 16350 105 14.67 φ19 φ38 2 φ500 2X448 380 2X6500 2*1.5 1*1.5 1890 590 660 505 1555
UCL-25.0/125 25000 19200 125 19.1 φ19 φ38 3 φ500 3X448 380 3X6500 2*1.9 1*1.9 2370 590 660 505 2035
UCL-32.6/160 32600 25000 160 22.98 φ19 φ38 3 φ500 3X448 380 3X6500 2*2.4 1*2.4 2790 590 660 505 2455
UCL-37.6/185 37600 28900 185 26.68 φ25 φ50 4 φ500 4X448 380 4X6500 2*2.6 1*2.6 3190 590 660 505 2855
UCL-42.7/210 42700 32800 210 30.37 φ25 φ50 4 φ500 4X448 380 4X6500 2*2.8 1*2.8 3590 590 660 505 3255
UCL-52.9/260 52900 40690 260 37.35 φ25 φ50 4 φ550 4X670 380 4X8500 3*2.6 1*2.6 3190 710 760 625 2855
UCL-66.0/330 66000 50700 330 46.59 φ25 φ50 4 φ550 4X670 380 4X8500 4*2.6 1*2.6 3390 710 760 625 3055
UCL-82.0/410 82000 63000 410 56.7 φ25 φ50 4 φ600 4X820 380 4X12000 4*2.8 1*2.8 3590 710 860 625 3255
UCL-94.0/470 94000 72300 470 69.54 φ28 φ50 3 φ710 3X1862 380 3X16200 5*2.4 1*2.4 3090 810 960 755 2755
UCL-116/580 116000 89230 580 85.57 φ28 φ50 3 φ710 3X1862 380 3X16200 5*2.6 1*2.6 3390 860 960 805 3055

UCD Type Air Cooler Specification
Model Capacity Area Tube
Volume		 Piping Size Fan Motor Elctric Defrost Overall Size（mm） Installation Size
te=0℃ te=-8℃ Quantity Diameter power Voltage Air Flow Coil Water tray
DT1=10K DT1=8K Liquid Gas A B C D E
w w mm mm pcs mm w v ㎥/h kw kw
UCD-1.3/7 1690 1300 7 1.77 φ12 φ16 1 φ350 1X190 380 1X3100 2*0.5 1*0.5 765 430 480 355 540
UCD-2.2/12 2860 2200 12 3.04 φ12 φ16 2 φ350 2X190 380 2X3100 2*0.9 1*0.9 1165 430 480 355 940
UCD-2.8/15 3640 2800 15 3.04 φ12 φ16 2 φ350 2X190 380 2X3100 2*0.9 1*0.9 1165 430 480 355 940
UCD-3.7/22 4810 3700 22 4.46 φ12 φ16 3 φ350 3X190 380 3X3100 2*1.2 1*1.2 1610 430 480 355 1385
UCD-5.6/30 7280 5600 30 5.95 φ16 φ25 2 φ400 2X227 380 2X4000 2*1.5 1*1.5 1590 530 560 445 1255
UCD-7.5/40 9750 7500 40 7.93 φ16 φ25 2 φ400 2X227 380 2X4000 2*1.5 1*1.5 1590 530 560 445 1255
UCD-11.2/60 14560 11200 60 11.74 φ19 φ38 2 φ500 2X448 380 2X6500 5*1.3 1*1.3 1890 590 660 505 1555
UCD-14.9/80 19370 14900 80 14.67 φ19 φ38 2 φ500 2X448 380 2X6500 5*1.5 1*1.5 1890 590 660 505 1555
UCD-18.7/100 24310 18700 100 19.1 φ19 φ38 3 φ500 3X448 380 3X6500 5*1.9 1*1.9 2370 590 660 505 2035
UCD-22.4/120 29120 22400 120 22.98 φ19 φ38 3 φ500 3X448 380 3X6500 5*2.4 1*2.4 2790 590 660 505 2455
UCD-26.2/140 34060 26200 140 26.68 φ25 φ50 4 φ500 4X448 380 4X6500 5*2.6 1*2.6 3190 590 660 505 2855
UCD-30.0/160 39000 30000 160 30.37 φ25 φ50 4 φ500 4X448 380 4X6500 5*2.8 1*2.8 3590 590 660 505 3255
UCD-37.4/200 48620 37400 200 37.35 φ25 φ50 4 φ550 4X670 380 4X8500 6*2.6 1*2.6 3190 710 760 625 2855
UCD-46.2/250 60060 46200 250 46.59 φ25 φ50 4 φ550 4X670 380 4X8500 8*2.6 1*2.6 3390 710 760 625 3055
UCD-57.3/310 74490 57300 310 56.7 φ25 φ50 4 φ600 4X820 380 4X12000 8*2.8 1*2.8 3590 710 860 625 3255
UCD-66.6/360 86580 66600 360 69.54 φ28 φ50 3 φ710 3X1862 380 3X16200 11*2.4 1*2.4 3090 810 960 755 2755
UCD-81.4/450 10580 81400 450 85.57 φ28 φ50 3 φ710 3X1862 380 3X16200 11*2.6 1*2.6 3390 860 960 805 3055
