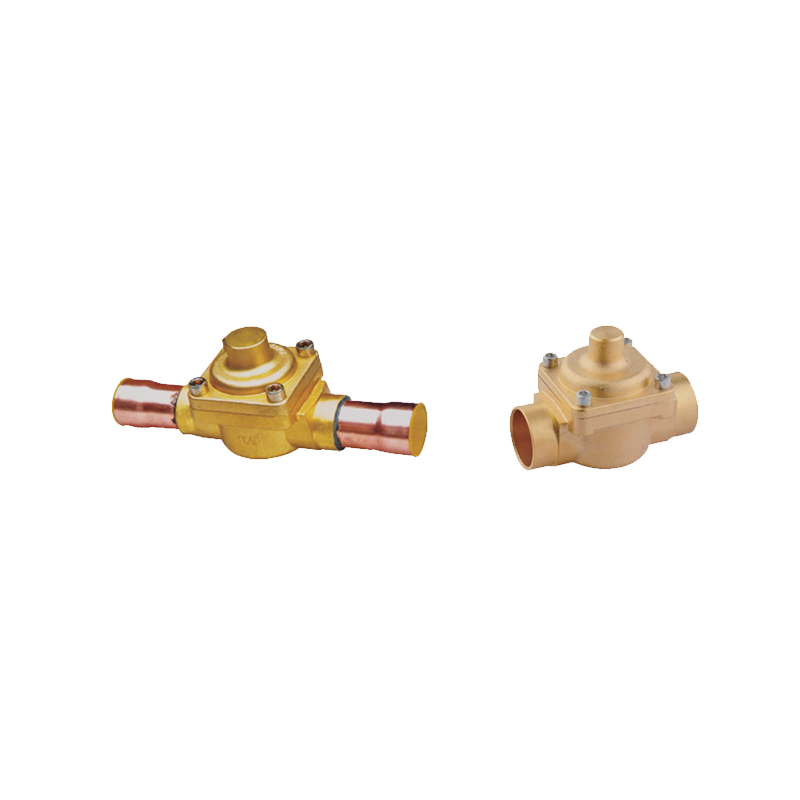

ONE-WAY Stop Valve
  • ONE-WAY Stop Valve

ONE-WAY Stop Valve

Feature

Technical data:
1、The working pressure:3.0mpa,hydraulic pressure:6.5mpa,adjustment pressure:A:1.5MPa-1.8MPa,B:2.8MPa-3.1MPa;

2、Suitable medium:R22、R502、R407c、R143a、R410aect. refrigerant and other refrigerating oil;

3、Suitable hydraulic medium temperature :-50℃+150℃℃

  • Technical specification
  • About us
  • Get an inquiry
Model ODS A B C D F
inch. mm
J3B/22 7/8" 22 96 28 10 M10 100
J3B/25 1" 25 96 28 10 100
J3B/28 1-1/8" 28 96 28 10 100
J3B/35 1-3/8" 34.96 100 34 13 116
J3B/42 1-5/8" 41.36 120 37 10 141
J3B/54 2-1/8" 54 139 42 10 174
