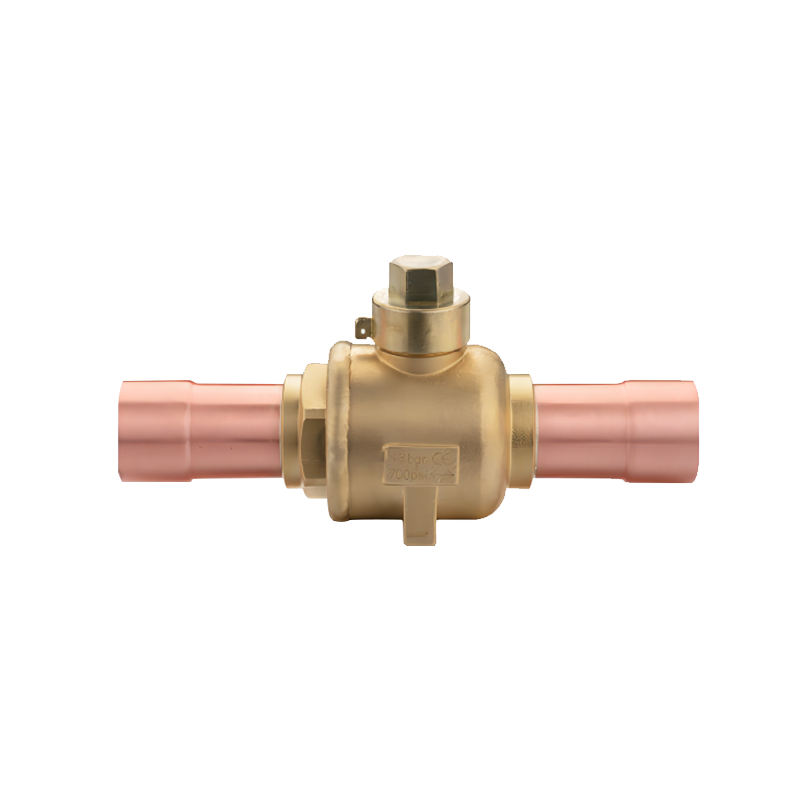

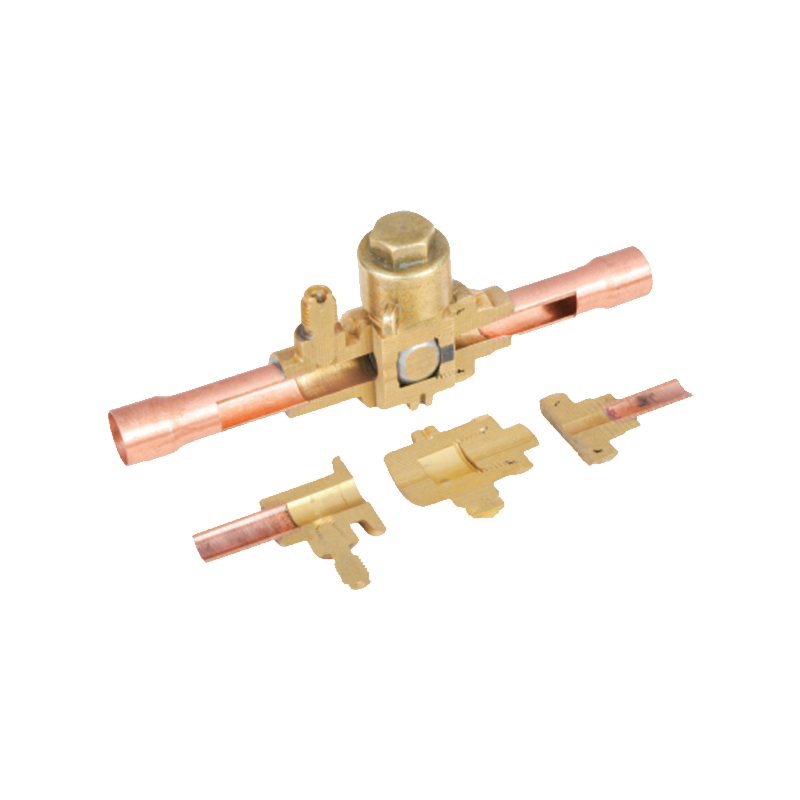

Bi-directional Ball Valves
  • Bi-directional Ball Valves
  • Bi-directional Ball Valves

Bi-directional Ball Valves

Feature

Product Introduction: bi-directional Ball Valve

Ball Valve is designed for superior flow control and durability across a wide range of applications. Whether you're managing industrial processes, water systems, or chemical handling, our ball valve offers reliable performance and long-lasting operation.

Key Features:

Robust Construction: Made from high-grade stainless steel or brass, ensuring resistance to corrosion and wear.

Precise Control: The valve's ball mechanism provides smooth and precise operation, allowing for accurate flow regulation.

Leak-Proof Design: Featuring advanced sealing technology to prevent leaks and ensure tight shutoff.

Wide Temperature Range: Capable of operating in extreme temperatures, both high and low, without compromising performance.

Easy Installation and Maintenance: Designed for quick installation and easy maintenance, minimizing downtime and operational costs.

Applications:

Industrial Processes: Ideal for use in manufacturing, petrochemical, and power generation industries.

Water Systems: Perfect for water treatment plants, distribution systems, and irrigation.

Chemical Handling: Suitable for managing a variety of chemicals, thanks to its robust construction and chemical resistance.

  • Technical specification
  • About us
  • Get an inquiry

Bi-directional Ball Valves (TBG)

Madel ODF Connection [C] Value[m³/h] [Port] MM Copper tube wall
thickness[MM]
MWP
inch mm Psi bar
TBG-6S 1/4 6 1 10 1 700 48
TBG-10S 3/8 10 4 10 1 700 48
TBG-12S 1/2 13 5 11 1 700 48
TBG-16S 5/8 16 10 13 1 700 48
TBG-19S 3/4 19 16 13 1.2 700 48
TBG-22S 7/8 22 24 19 1.2 700 48
TBG-28S 1-1/8 29 47 23 1.3 700 48
TBG-35S 1-3/8 35 7 30 1.5 700 48
TBG-42S 1-5/8 41 99 38 1.8 700 48
TBG-54S 2-1/8 54 211 48 2 700 48
TBG-67S 2-5/8 67 347 56 2.5 700 48



Bi-directional Ball Valves (TBC)

Madel  ODF Connection Value[m³/h] [Port] MM Copper tube wall
thickness[MM]
MWP
inch mm Psi bar
TBC-6S 1/4 6 1 10 1 700 48
TBC-10S 3/8 10 4 10 1 700 48
TBC-12S 1/2 13 5 11 1 700 48
TBC-16S 5/8 16 10 13 1 700 48
TBC-19S 3/4 19 16 13 1.2 700 48
TBC-22S 7/8 22 24 19 1.2 700 48
TBC-28S 1-1/8 29 47 23 1.3 700 48
TBC-35S 1-3/8 35 77 30 1.5 700 48
TBC-42S 1-5/8 41 99 38 1.8 700 48
TBC-54S 2-1/8 54 211 48 2 700 48
TBC-67S 2-5/8 67 347 56 2.5 700 48
TBC-79S 3-1/8 79 478 70 2.5 700 48



Madel Lenth[A] Width[G] Hight(E) F F1  C  D H
mm mm mm inch mm mm mm
TBC/TBG-6S 148  22  60 1/4 10  8 16 M4X0.7
TBC/TBG-10S 150 22 60 3/8 10  8 16 M4X0.7
TBC/TBG-12S 152  22  60 1/2 11  10 16 M4X0.7
TBC/TBG-16S 162  22  60 5/8 13  13 16.5 M4X0.7
TBC/TBG-19S 162  22  60 3/4 13  16 16.5 M4X0.7
TBC/TBG-22S 182  34  78 7/8 19  19 22.5 M4X0.7
TBC/TBG-28S 202  36  82 1-1/8 23  19 25.5 M4X0.7
TBC/TBG-35S 218  36  96 1-3/8 30  25 31 M6X1.0
TBC/TBG-42S 224  62 116 1-5/8 38  28 38.5 M6X1.0
TBC/TBG-54S 274  62 132 2-1/8 48  34 45 M6X1.0
TBC/TBG-67S 294  62 146 2-5/8 56  37 52.5 M6X1.0
TBC-79S 294  62 146 3-1/8 70  37 52.5 M6X1.0
