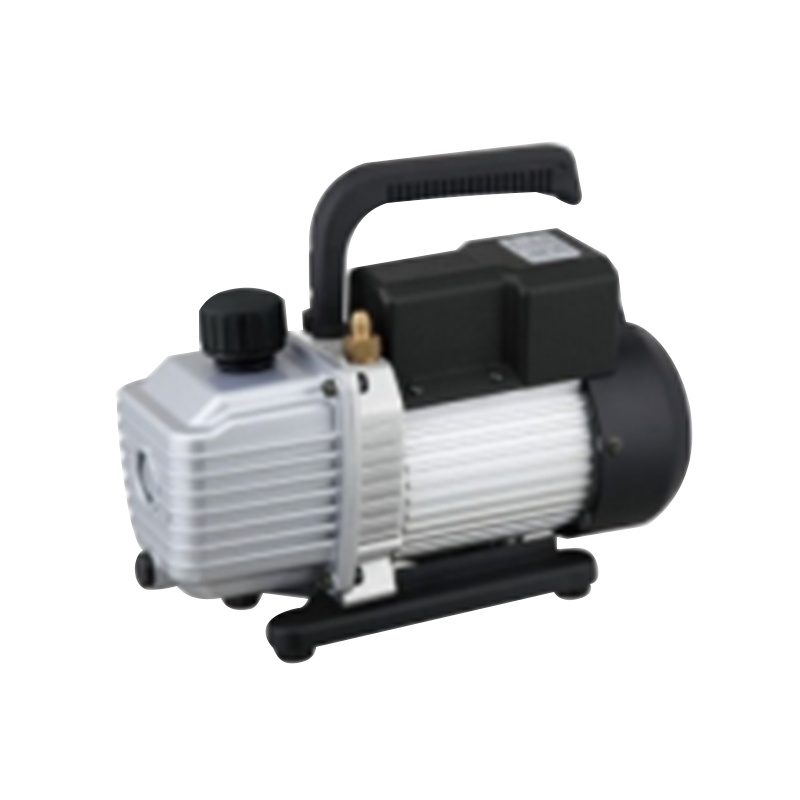

Super Vacuum Pump Supplier

Home / Product / Refrigeration Parts / Other Refrigeration Parts / Super Vacuum Pump
  • Technical specification
  • About us
  • Get an inquiry
Part No. Capacity
at
 220V/50Hz
Capacity at 110V/60Hz UItimate Vacuum Motor
Power
(hp)
Motor
speed
(rpm)
Intake
Fitting
(inch)
Partial
Pressure
Total
Pressure
VP-0.5A 1 CFM,34 L/min 1.2 CFM,34 L/min 2 Pa 150 micron 1/6 1440 1/4”SAE
VP-1A 2 CFM,57 L/min 2.5 CFM,68 L/min 2 Pa 150 micron 1/4 1440 1/4”SAE
VP-1.5A 3 CFM,85 L/min 3.6 CFM,102 L/min 2 Pa 150 micron 1/4 1440 1/4” SAE
VP-2A 4 CFM,113 L/min 4.8 CFM,136 L/min 2 Pa 150 micron 1/3 1440 1/4”SAE
VP-3A 6 CFM,170 L/min 7.2 CFM,204 L/min 2 Pa 150 micron 1/2 1440 1/4”SAE
VP-4A 8 CFM,226 L/min 9.6 CFM,272 L/min 2 Pa 150 micron 3/4 1440 1/4” SAE


Part No. Capacity
at 220V/50Hz
Capacity   at
110V/60Hz
UItimate Vacuum Motor
Power
(hp)
Motor
speed
(rpm)
Intake
Fitting
(inch)
Partial
Pressure
Total
Pressure
2VP-0.5C 1 CFM,34 L/min 1.2 CFM,34 L/min 2×10-¹Pa 15 micron 1/4 1440 1/4”SAE
2VP-1C 2 CFM,57 L/min 2.4 CFM,68 L/min 2×10-¹Pa 15 micron 1/3 1440 1/4”SAE
2VP-2C 4 CFM,113 L/min 4.8 CFM,136 L/min 2×10-¹Pa 15 micron 1/2 1440 1/4”SAE
2VP-3C 6 CFM,170 L/min 4.8 CFM,204 L/min 2×10-¹Pa 15 micron 3/4 1440 1/4”SAE
2VP-4C 8 CFM,226 L/min 7.2 CFM,272 L/min 2×10-1 Pa 15 micron 3/4 1440 1/4”SAE
