R32,1234yf Vacuum Pump Supplier

Home / Product / Refrigeration Parts / Other Refrigeration Parts / R32,1234yf Vacuum Pump

Product Category

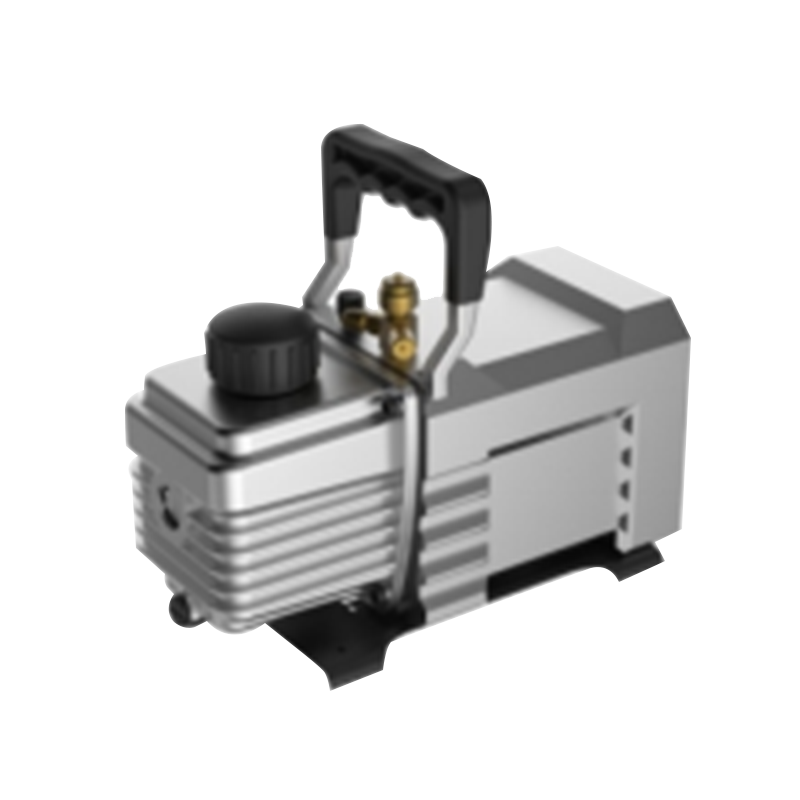

R32,1234yf Vacuum Pump
  • R32,1234yf Vacuum Pump

R32,1234yf Vacuum Pump

Feature
CONTACT CATALOG PDF
  • Technical specification
  • About us
  • Get an inquiry
 Part No. Capacity
at 220V/50Hz		 capacity
at 110V/60Hz		 UItimate Vacuum Motor
Power
(hp)		 Motor
speec
(rpm)		 Intake
Fitting
(inch)
Partial
Pressure		 Total
Pressure
VPG165(SG) 6.5 CFM,184 L/min 7.8 CFM,221 L/min 2 Pa 150 micron 3/4 1440 1/4” SAE
VPG180(SG) 8.0 CFM,226 L/min 9.6 CFM,272 L/min 2 Pa 150 micron 4/5 2880 1/4” SAE
VPG1100(SG) 10.0 CFM,127 L/min 5.4 CFM,153 L/min 2 Pa 150 micron 1 2880 1/4” SAE
VPG265(SG) 6.5 CFM,184 L/min 7.8 CFM,221 L/min 2×10-1Pa 15 micron 4/5 2880  1/4” SAE
VP280(SG) 8.0 CFM,226 L/min 9.6 CFM,272 L/min 2×10-1 Pa 15 micron 1 2880 1/4” SAE
VP2100(SG) 10.0 CFM,283 L/min 12 CFM,340 L/min 2×10-1 Pa 15 micron 1 2880 1/4” SAE
