Rubber Anti Vibration Mountings Supplier

Home / Product / Accessories And Tools / Rubber Anti Vibration Mountings

Product Category

Rubber Anti Vibration Mountings
  • Rubber Anti Vibration Mountings
  • Rubber Anti Vibration Mountings
  • Rubber Anti Vibration Mountings
  • Rubber Anti Vibration Mountings
  • Rubber Anti Vibration Mountings

Rubber Anti Vibration Mountings

Feature
CONTACT Download Catalog
  • Technical specification
  • About us
  • Get an inquiry

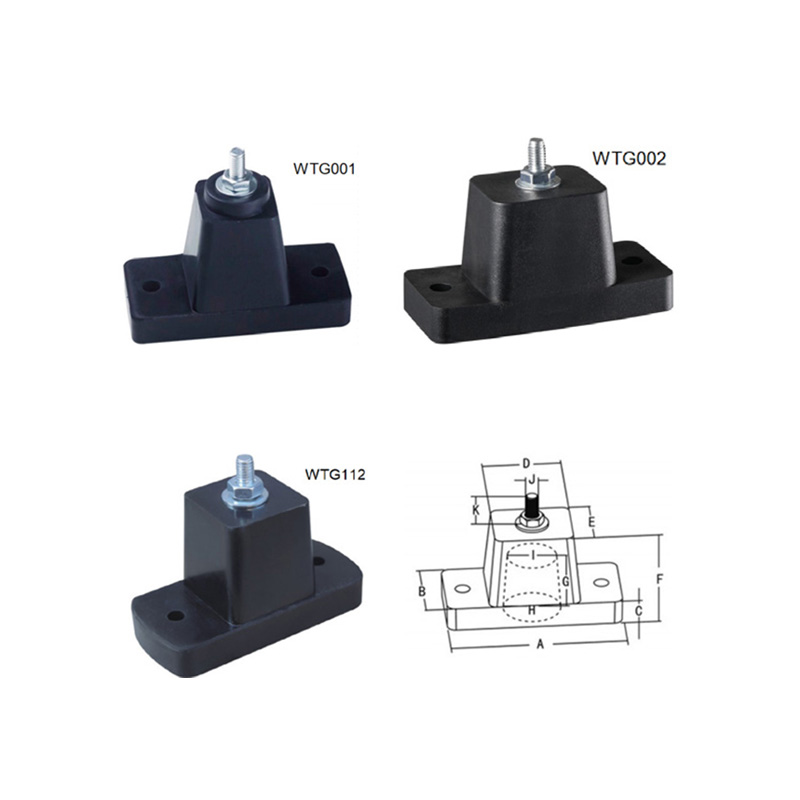

Model     A B C D E F G H I J K Applicable Scope
WTG002-A 107 48 15 48 38 58 36 35 30 8 20 7500Btu-24000Btu A/C
WTG002-B 112 50 17 53 43 60 40 36 30 8 20 7500Btu-24000Btu A/C
WTG002-C 110 48 17 50 38 121 90 35 26 8 20 7500Btu-24000Btu A/C
WTG002-D 100 45 13 48 38 53 40 36 30 8 20 7500Btu-24000Btu A/C
WTG002-E 92 42 14 41 37 52 36 35 30 8 20 7500Btu-24000Btu A/C
WTG001-A 110 50 17 37 37 66 35 30 22 8 20 7500Btu-24000Btu A/C
WTG112-A 104 47 15 39 41 61 41 32 26 8 20 7500Btu-24000BtuA/C

Model A B C D E F G Applicable Scope
WTG005-AD 87 42 8 20 24 48 59 7500Btu-24000Btu A/C
WTG005-AX 87 42 8 20 25 36 38 7500Btu-24000Btu A/C
WTG005-B 97 60 10 30 33 50 60 7500Btu-24000Btu A/C

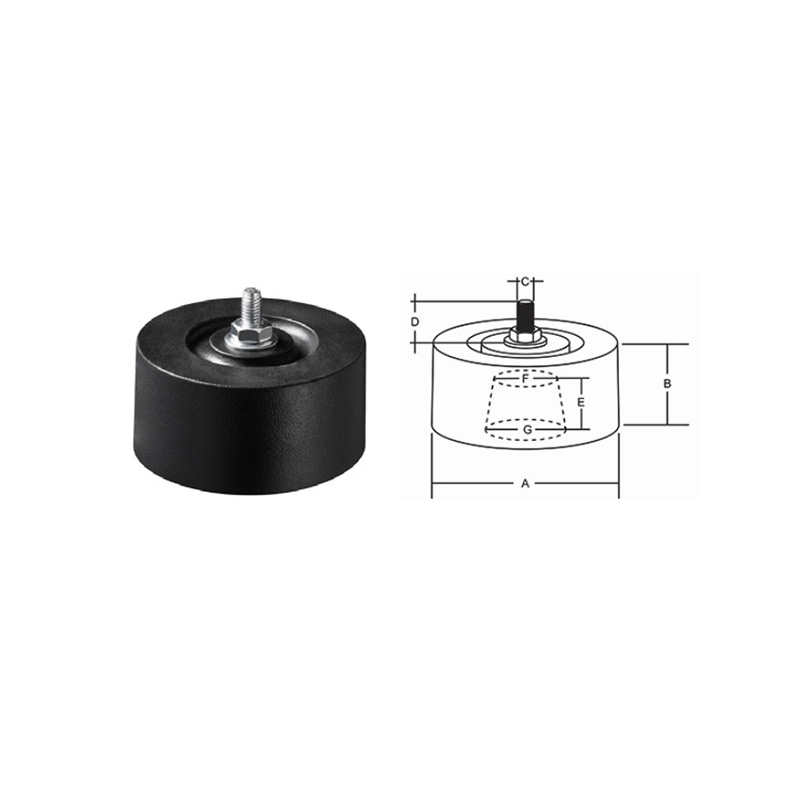

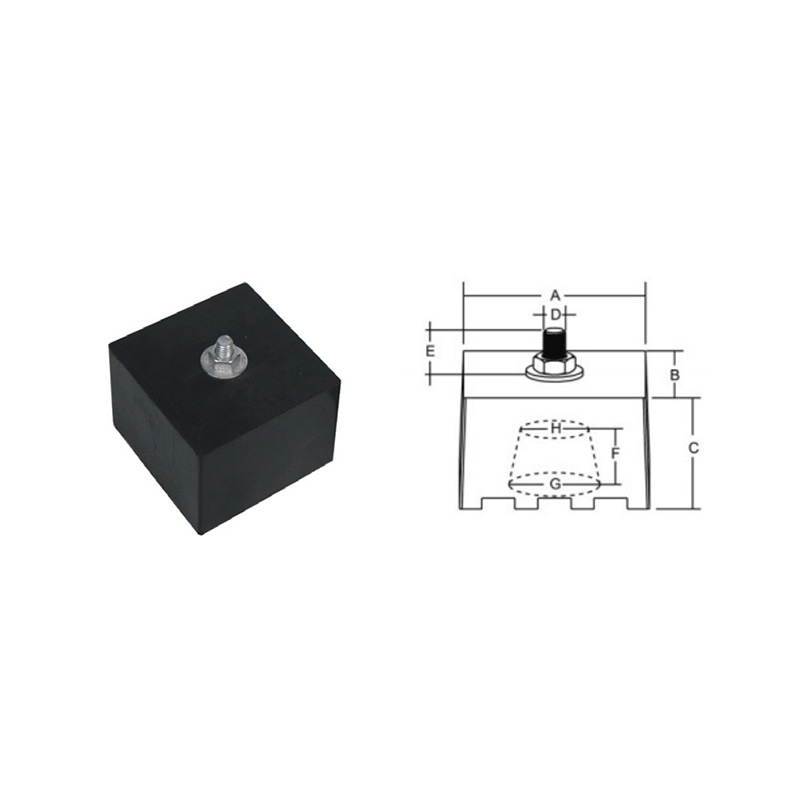

Model A B C D E F G H Applicable Scope
WTG006-A 80 80 25 8 20 7500Btu-24000Btu A/C
WTG006-B 80 80 50 8 20 25 40 30 7500Btu-24000Btu A/C
WTG006-C 100 100 80 10 30 40 50 40 7500Btu-24000Btu A/C

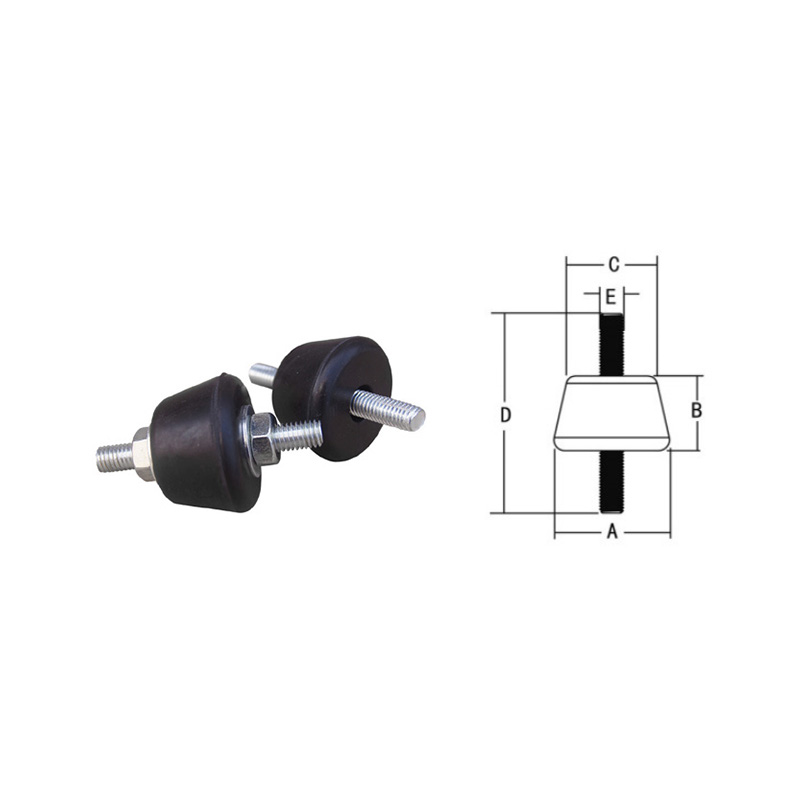

Model A B C D E F G Applicable Scope
WTG-AG35 37 24 28 62 8 7500Btu-24000Btu A/C
WTG-AG45 43 31 33 71 8 7500Btu-24000Btu A/C

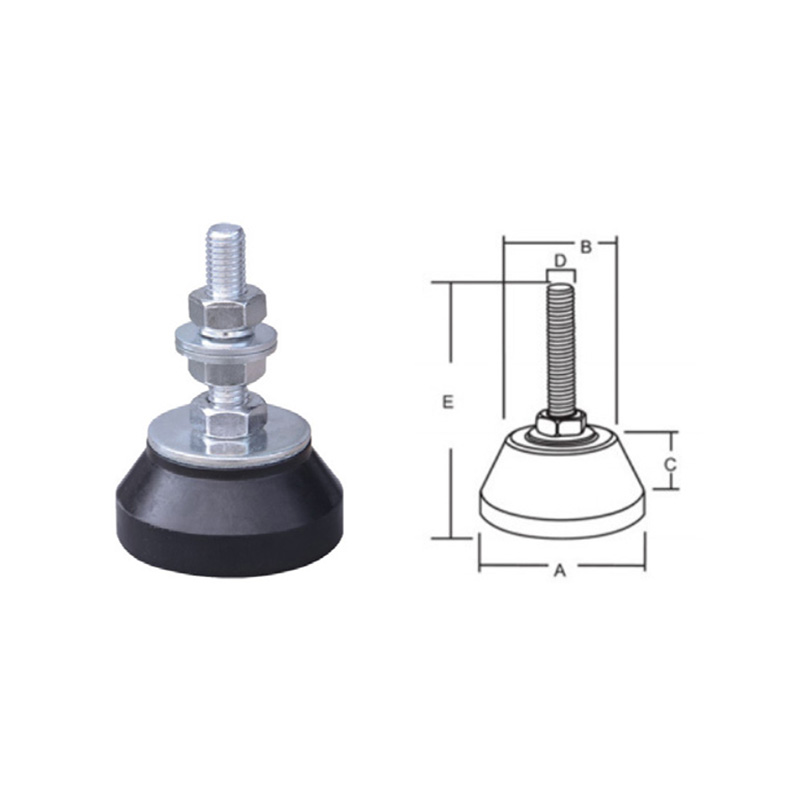

Model A B C D E F G Applicable Scope
WTG-SG40 40 33 22 8 60 7500Btu-24000Btu A/C
WTG-SG60 64 44 25 12 90 7500Btu-24000Btu A/C

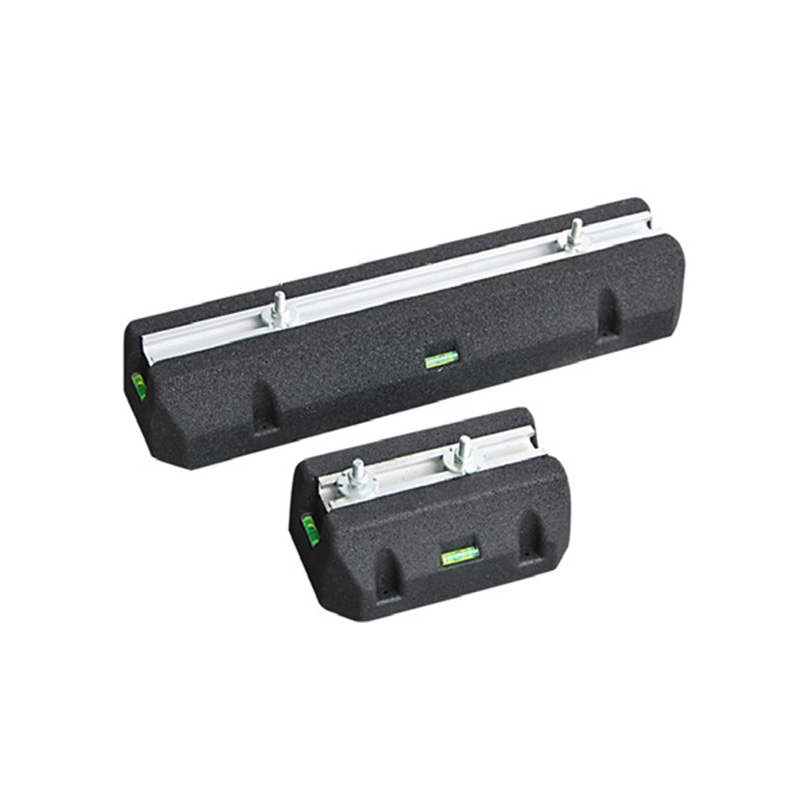

Part No.  Size(mm)      Material N.W. (kg) . (kg)
AVB-250 250x160x95 Rubber, Alum Alloy 2.3 2.6
AVB-450 450x160x95 Rubber, Alum Alloy 4.5 4.8
AVB-600 600x160x95 Rubber, Alum Alloy 6.2 6.5
AVB-1000 1000x160x95 Rubber, Alum Alloy 10 10.3
