Feature

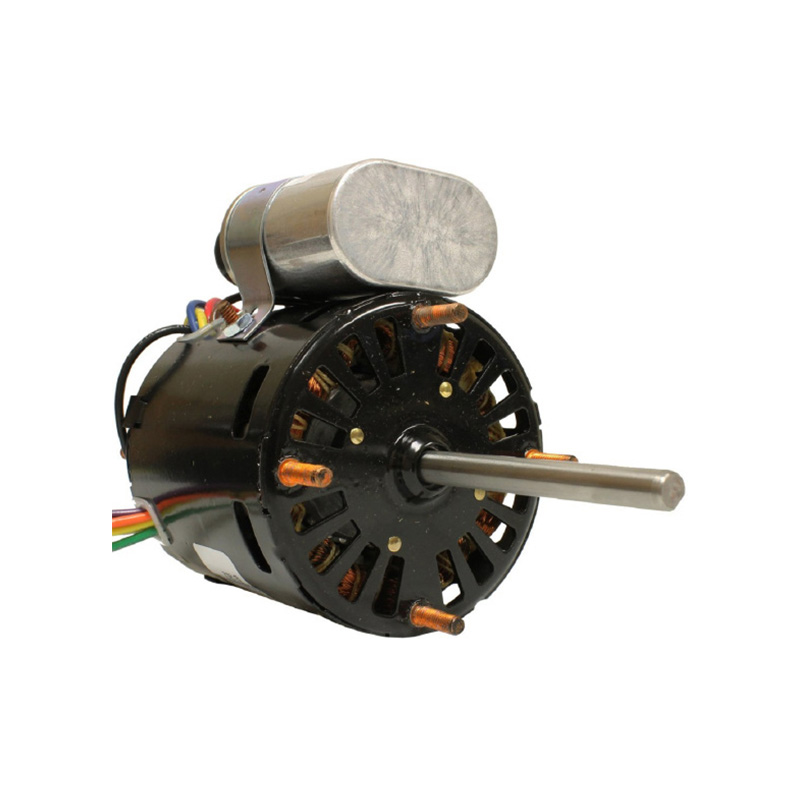

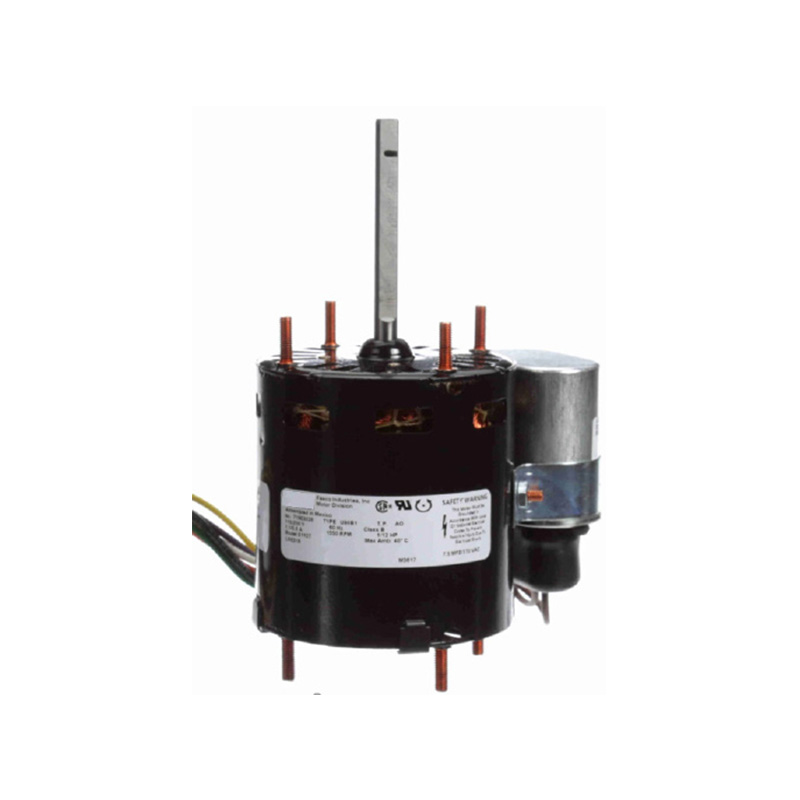

1/12 HP, HVAC Motor, Permanent Split Capacitor, 1550 Nameplate RPM, 115/230 Voltage Single-phase BK motor is designed for use in air-moving or mechanical applications,including.
- Technical specification
- About us
- Get an inquiry
| ltem: BK-D1127 | Frame: 3.3 |
| Motor Design: Permanent Split Capacitor | Motor Bearings: Sleeve |
| HP:1/12 | Full Load Amps:1.1/0.60 |
| RPM Range:1501-1600 | Duty: Continuous |
| No. of Speeds: 1 | Motor Service Factor:1.00 |
| Voltage: 115/230 | Hz:60 |
| Motor Shaft Rotation: CW/CCW | Body Dia.: 3.3" |
| Motor Enclosure Design: Open Dripproof | Ins. Class: B |
| Motor Mounting Type: Stud | Max.Ambient Temp.:40 Degrees C |
| Shaft Dia.:5/16" | Length Less Shaft: 3-1/2" |
| Shaft Length: 3" | Mounting Stud Location:4/Both Ends |
| Number of Shafts:1 | Stud/Base Mtg.Pattern:2-7/8" x 2-7/8" |
| Motor Thermal Protection: Auto | Motor Shaft Design: Flat |
| Nameplate RPM:1550 | Application: HVAC/R |
| Phase: 1 | Includes: 7.5 MFD/370 VAC Capacitor |
| Motor Application: HVAC/R | Mounting Pattern:2-7/8x 2-7/8 |
| Motor Sub Application: Direct Drive Fan/Blower | Capacitor Required:Yes |
| VoltageCompatibility:115,115/230,120,120/240,230,240 | |
About Ningbo Ouyu Import & Export Co., Ltd.
Ningbo Ouyu Import & Export Co., Ltd. is the exporting branch of Briliant Refrigeration Equipment Co., Ltd. It is a manufacturer and factory specializing in the research, development, and design of large-scale refrigeration equipment, with more than 100 talented employees, including masters, researchers, engineering, and technical engineers.
As a professional OEM/ODM/OBM Inch Diameter Motors suppliers and Inch Diameter Motors company with more than 30 years, Ouyu has multiple modern industrial factories equipped with advanced production and processing equipment and complete manufacturing processes. We sell various brands of compressors, condensers, evaporators, condensing units, large and medium-sized parallel units as well as refrigeration accessories with good quality and competitive prices.
We have a complete production line and our products have been awarded ISO9001:2008 quality system certification, CE certification, National Industrial Product Manufacture Licence and Combined Refrigerated Agricultural Machinery Certificate.
-
