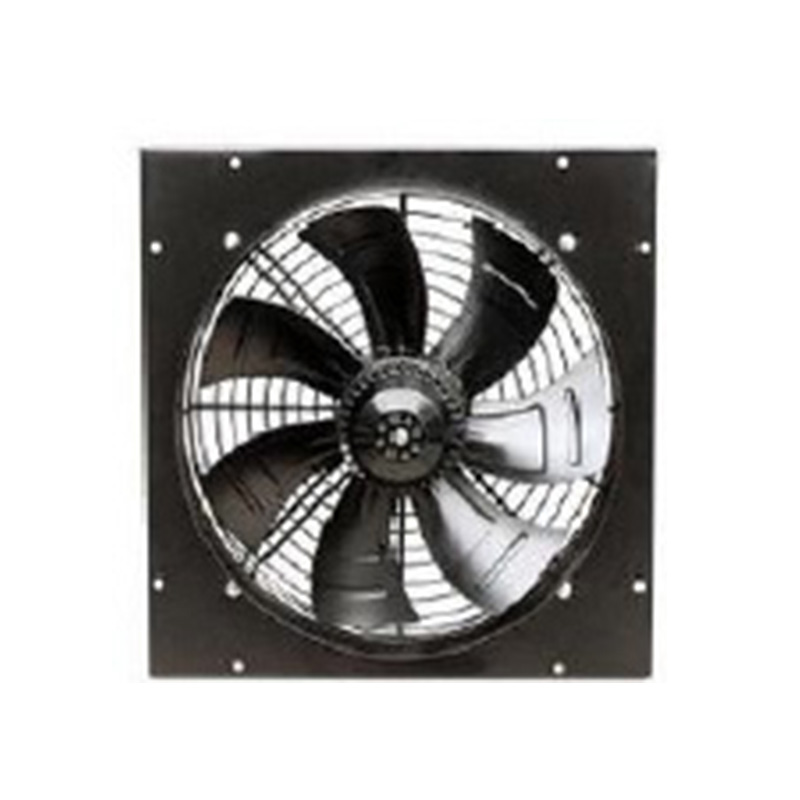

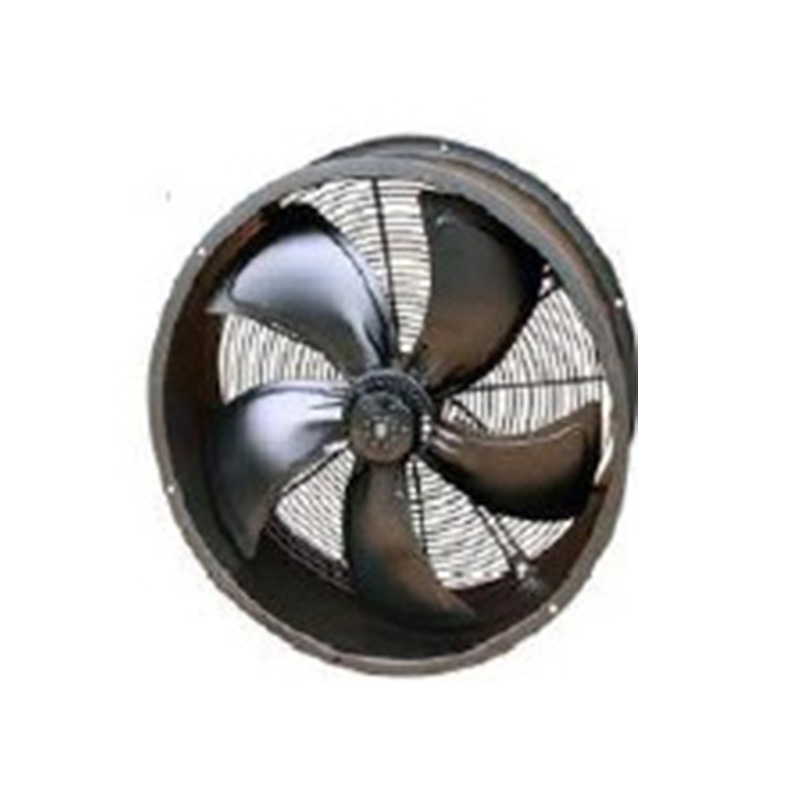

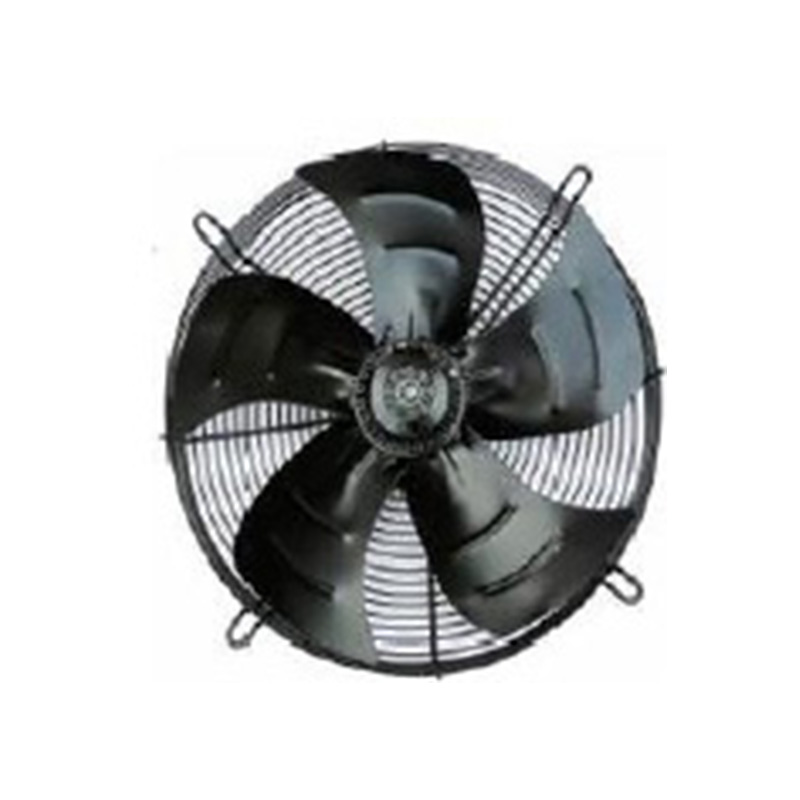

Axial Fan

Feature

Reliable operation, low noise energy saving and high efficiency attained CCC CE VDE RoHS approvals.

CONTACT Download Catalog
  • Technical specification
  • About us
  • Get an inquiry
TYPE VOLTAGE
V		 FRECUENCY
Hz		 RATED
CURRENT A		 NPUT W SPEED
r/min		 CAPACITOR
uF		 NET WEGHT
kg		 NOISE
dBA		 ARVOUME
m³/h
YWF2E-200 220 50 0.25 55 2500 2 1.8 52 790
YWF4E-200 220 50 0.2 40 1400 1.5 1.8 45 500
220 60 0.2 42 1700 1.5 1.8 45 600
YWF2E-250 220 50 0.5 110 2400 4 3 60 1300
YWF2D-250 380 50 0.21 100 2400 / 3 60 1300
YWF2D-250 380 50 0.21 100 2400 / 3 60 1300
YWF4E-250 220 50 0.22 45 1400 2 3 55 860
220 60 0.25 55 1700 2 3 56 1015
YWF4D-250 380 50 0.17 45 1400 / 3 56 860
380 60 0.15 45 1700 / 3 56 1015
YWF4E-300 220 50 0.38 80 1350 3 3.3 53 1845
220 60 0.45 95 1550 3 3.3 55 1460
YWF4D-300 380 50 0.24 75 1380 / 3.3 53 1835
380 60 0.22 90 1550 / 3.3 55 1600
YWF4E-350 220 50 0.65 135 1380 4 4.8 62 2450
220 60 0.78 170 1600 4 4.8 62 2830
YWF4D-350 380 50 0.38 140 1380 / 4.8 62 2480
380 60 0.35 180 4600 / 4.8 62 2810
YWF4E-400 220 50 0.82 180 1380 6 5.7 66 3980
220 60 1.2 250 1550 6 5.7 66 4670
YWF4D-400 380 50 0.47 180 1380 / 5.7 66 3960
380 60 0.47 250 1550 / 5.7 66 4590
YWF6E-400 220 50 0.48 100 920 4 5.7 58 3275
YWF6D-400 380 50 0.38 105 920 / 5.7 58 3250
YWF4E-450 220 50 1.2 250 1350 8 7.5 68 5380
220 60 1.52 330 1500 8 7.5 68 5600
YWF40-450 380 50 0.6 250 1360 / 7.5 68 5390
380 60 0.6 330 1500 / 7.5 68 5620
YWF6E-450 220 50 0.7 150 920 6 7.5 60 4400
YWF6D-450 380 50 0.42 150 900 / 7.5 60 4410
YWF4E-500 220 50 1.9 420 1300 10 9 72 7155
220 60 2.55 560 1550 14 9 72 7950
YWF4D-500 380 50 0.9 450 1300 / 9 72 7190
380 60 0.95 520 1500 / 9 72 7805
YWF6E-500 220 50 1.1 220 900 10 9 68 5800
YWF6D-500 380 50 0.55 220 900 / 9 68 5820
YWF4E-550 220 50 2.55 550 1300 12 10.5 75 8550
220 60 2.85 650 1600 14 10.5 75 10160
YWF4D-550 380 50 1.2 600 1300 / 10.5 75 8600
380 60 1.45 750 1550 / 10.5 75 10100
YWF6E-550 220 50 1.65 320 900 10 10.5 70 7290
YWF6D-550 380 50 0.85 320 900 / 10.5 70 7280
YWF4E-600 220 50 3.2 700 1360 16 14 74 10250
220 60 3.85 800 1650 16 14 75 11580
YWF4D-600 380 50 1.6 780 1350 / 14 75 10230
380 60 1.8 820 1650 / 14 75 11660
YWF6E-600 220 50 2.3 480 900 10 14 70 9250
YWF6D-600 380 50 1.5 480 900 / 14 69 9380
YWF4E-630 220 50 3.5 750 1360 16 15.5 75 12560
YWF4D-630 380 50 1.6 800 1360 / 15.5 75 12610
YWF6E-630 220 50 2.4 520 900 10 15.5 71 11380
YWF6D-630 380 50 1.5 550 900 / 15.5 71 11460
YWF6D-710 380 50 2 1100 910 / 25 76 15380
380 60 1.4 750 750 / 25 73 13560
YWF6D-800 380 50 3.25 1300 920 / 35 75 21550
380 60 1.68 930 770 / 35 74 17780
YWF6D-900 380 50 2 1400 920 / 33 80 26000
380 60 1.4 940 750 / 33 79 21800
