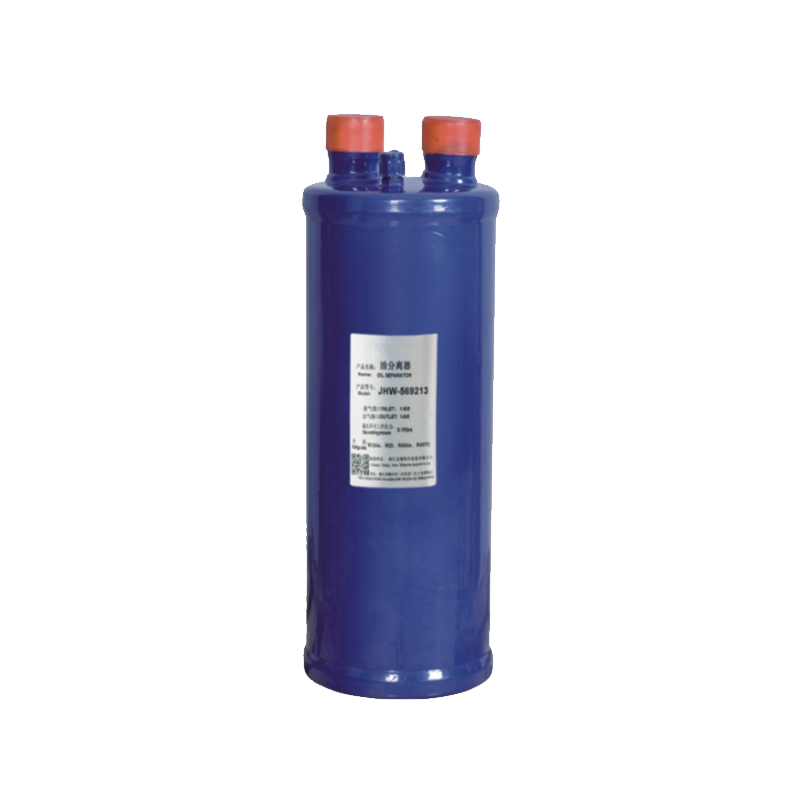

Oil Separator
  • Oil Separator

Oil Separator

Feature
From compressor side, when gaseous refrigerant with oil particle enter oil separator, oil particle will collide with stainless filters at inlet and outlet, eventually oil particle becomes heavy oil drop on cylinder and oil drop will fail to the bottom because of gravity. At the bottom of oil separator, there is a buoy ball to control the level of oil, once oil reaches certain level, needle valve will open and oil can go back to compressor.

■ Maximum working pressure: 31 bar
■ Maximum working temperature: 120°C
■ Suitable refrigerant: R134A,R404A,R407A,R407C,R507,R22
  • Technical specification
  • About us
  • Get an inquiry

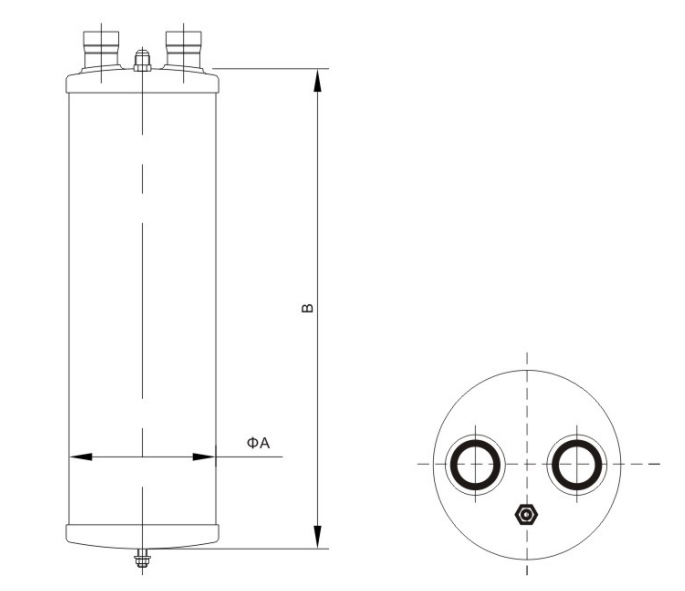

Model Connection size   (inch) Oil return pipe ØA(mm) B(mm) Retaining screw
JHW55824 1/2" 1/4" 102 255 M10
JHW55855 5/8H 1/4" 102 305 M10
JHW55876 3/4n 3/8" 102 345 M10
JHW55877 7/8" 3/8" 102 345 M10
JHW55888 1H 3/8" 102 365 M10
JHW55889 1-1/8" 3/8" 102 365 M10
JHW559011 1-3/8" 3/8" 102 450 M10
JHW569011 1-3/8" 3/8" 159 430 M12
JHW569213 1-5/8h 3/8" 159 430 M12
JHW569417 2-1/8" 3/8" 159 430 M12
