Product Category

Hermetic Direr Filter

Feature

A drier filter uses the combination design of a drier and filter and regards gas as a medium. The product is a high accuracy filter and ability to water absorption, because of the feature of the product, foreign matters can not enter the cooling system, so the cooling system can run smoothly.

Feature

■Effective use of surface area of desiccant to filter

■Desiccant can filter water and acid

■Controlled by the technology of fiberglass network structure to provide better filter ability

■ODF, SAE connection is optional

Technical data

■Refrigerant: CFC, HCFC,HFC

■ Maximum working pressure:3.5Mpa

CONTACT Download Catalog

Prev: Gas-liquid separator

Next: Flange-type Filter

Technical specification
About us
Get an inquiry

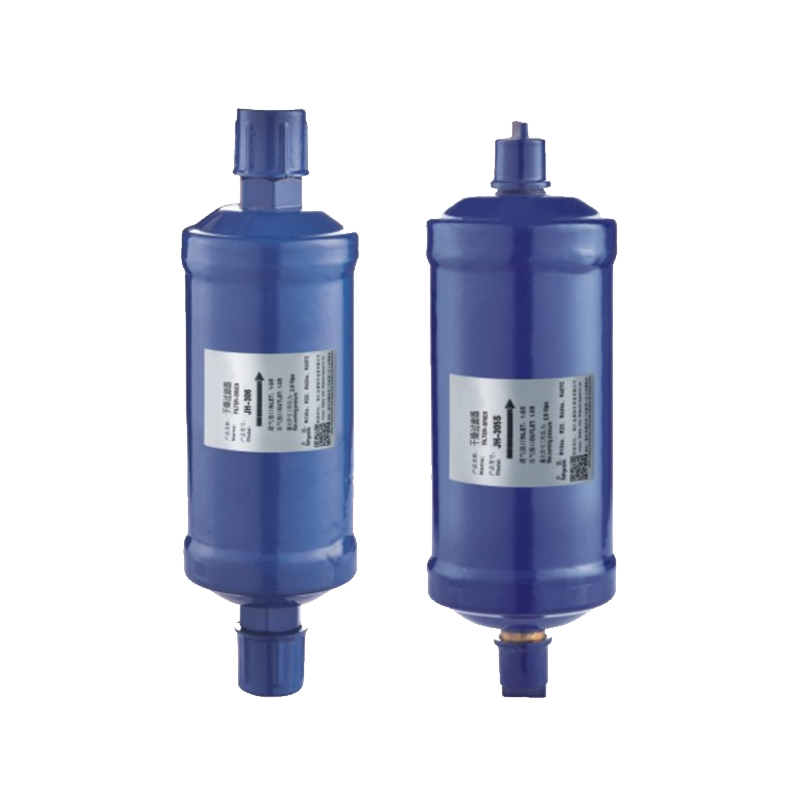

Hermetic Direr Filter

Model	Connection size(inch)		Cooling capacity				A(mm)	B(mm)	C(mm)
Model	ODF	SAE	R134a	R22	R404a	R502	A(mm)	B(mm)	C(mm)
JH-052		1/4"	9	9.8	6.5	6.3	128	82	φ63
JH-052S	1/4"		13.3	14.4	9.6	9.4	118
JH-053		3/8"	21.4	23.3	15.4	15.1	138
JH-053S	3/8"		26.5	28.9	19.1	18.7	118
JH-083		3/8"	21.8	23.7	15.7	15.4	156	100
JH-083S	3/8"		27.4	29.8	19.8	19.3	136
JH-084		1/2"	36.4	39.6	26.2	25.7	160
JH-084S	1/2"		28.9	42.4	28.1	27.5	136
JH-163		3/8"	22.2	24.2	16.1	15.7	178	122
JH-163S	3/8"		31.7	34.3	22.9	22.4	158
JH-164		1/2"	38.5	41.9	27.8	27.2	182
JH-164S	1/2"		49.6	54	35.8	35.1	158
JH-165		5/8"	50.5	54.9	36.4	35.7	190
JH-165S	5/8"		67.2	73.1	48.5	47.5	168
JH-304		1/2"	43.6	47.5	31.5	30.8	240	179	φ76
JH-304S	1/2"		54.1	59.1	39.2	38.4	215
JH-305		5/8"	55.6	60.5	40.1	39.3	247
JH-305S	5/8"		74	80.5	53.4	52.3	225
JH-306		3/4"	58.6	65.2	43.5	43	260
JH-306S	3/4"		78.2	84.3	56.5	54.2	225
JH-307		7/8"	64.1	86.7	62.4	60.1	275
JH-307S	7/8"		83.4	90.8	60.2	59	230
JH-309S	1-1/8"		109.1	118.7	78.7	77.1	240

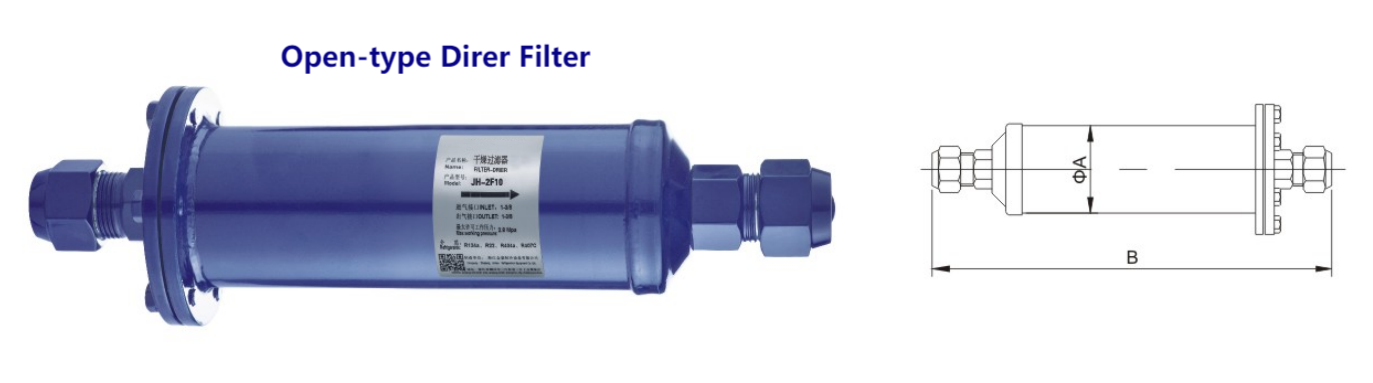

Open-type direr filter

Model	Specifications	Connection size (inch)	A(mm)	B(mm)
JH-2F6.3	Dg8	3/8"	51	200
JH-2F6.3	Dg10	1/2"	51	200
JH-2F7.0	Dg13	5/8"	51	200
JH-2F10	Dg13	5/8"	70	305
JH-2F10	Dg16	3/4"	70	315
JH-2F10	Dg19	7/8"	70	320

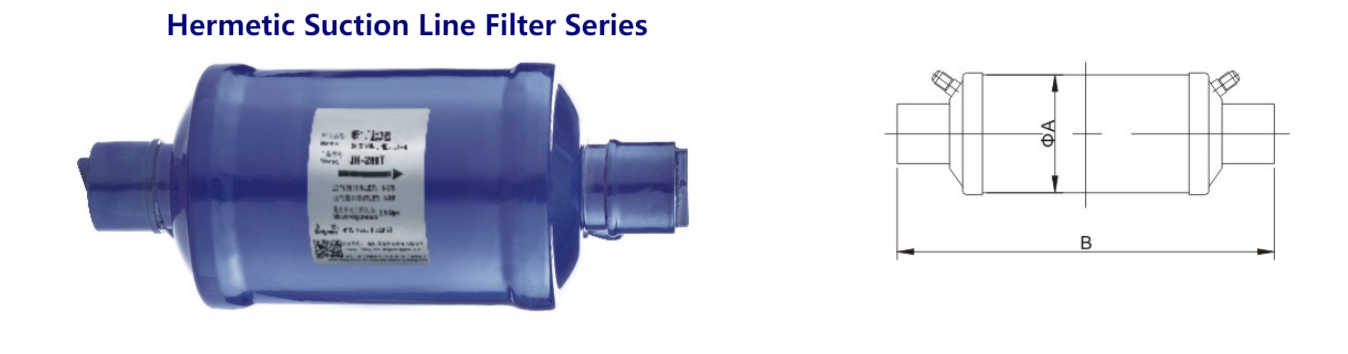

Hermetic suction line filter series

Model	Connection size(inch)	A(mm)	B(mm)
JH-285T	5/8"	89	204
JH-286T	3/4"	89	204
JH-287T	7/8"	89	204
JH-289T	1-1/8"	89	252
JH-2811T	1-3/8"	89	252
JH-2813T	1-5/8"	89	252
JH-2817T	2-1/8"	89	300
