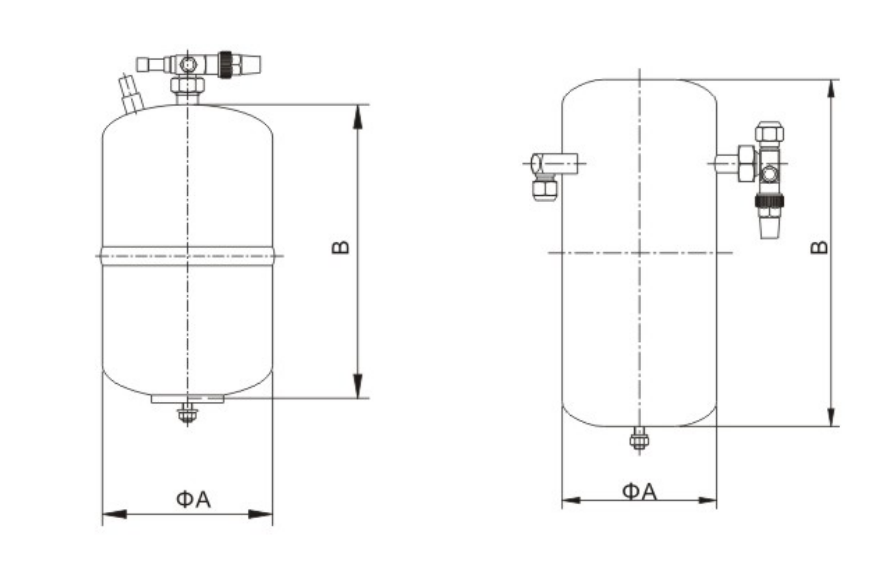

Model | A(mm) | B(mm) | Connection size(inch) | Volume (L) | Retaining screw |
JHC-1/2HP | 98 | 179 | 3/8" | 1 | M10 |
JHC-1HP | 120 | 215 | 3/8" | 2.2 | |
JHC-2HP | 131 | 250 | 3/8" | 3 | |
JHC-3HP | 147 | 265 | 1/2" | 4 | |
JHC-5HP | 155 | 280 | 1/2" | 6 | |
JHC-8HP | 180 | 310 | 1/2" | 8 | |
JHC-10HP | 219 | 313 | 5/8" | 10 | M12 |
JHC-12HP | 219 | 355 | 5/8" | 12 | |
JHC-14HP | 219 | 390 | 5/8" | 14 | |
JHC-16L | 219 | 450 | 7/8" | 16 | Triangle |
JHC-18L | 219 | 530 | 7/8" | 18 | |
JHC-20L | 219 | 600 | 7/8" | 20 | |
JHC-25L | 219 | 750 | 7/8" | 25 |
Model | A(mm) | B(mm) | Inlet size | Outlet size | Retaining screw |
JHC-101 | 88 | 220 | 3/8" | 1/4" | M10 |
JHC-102 | 131 | 245 | 3/8" | 3/8" | M10 |
JHC-103 | 131 | 295 | 3/8" | 3/8" | M10 |
JHC-104 | 156 | 345 | 1/2" | 1/2" | M12 |
JHC-105 | 180 | 405 | 5/8" | 5/8" | M12 |

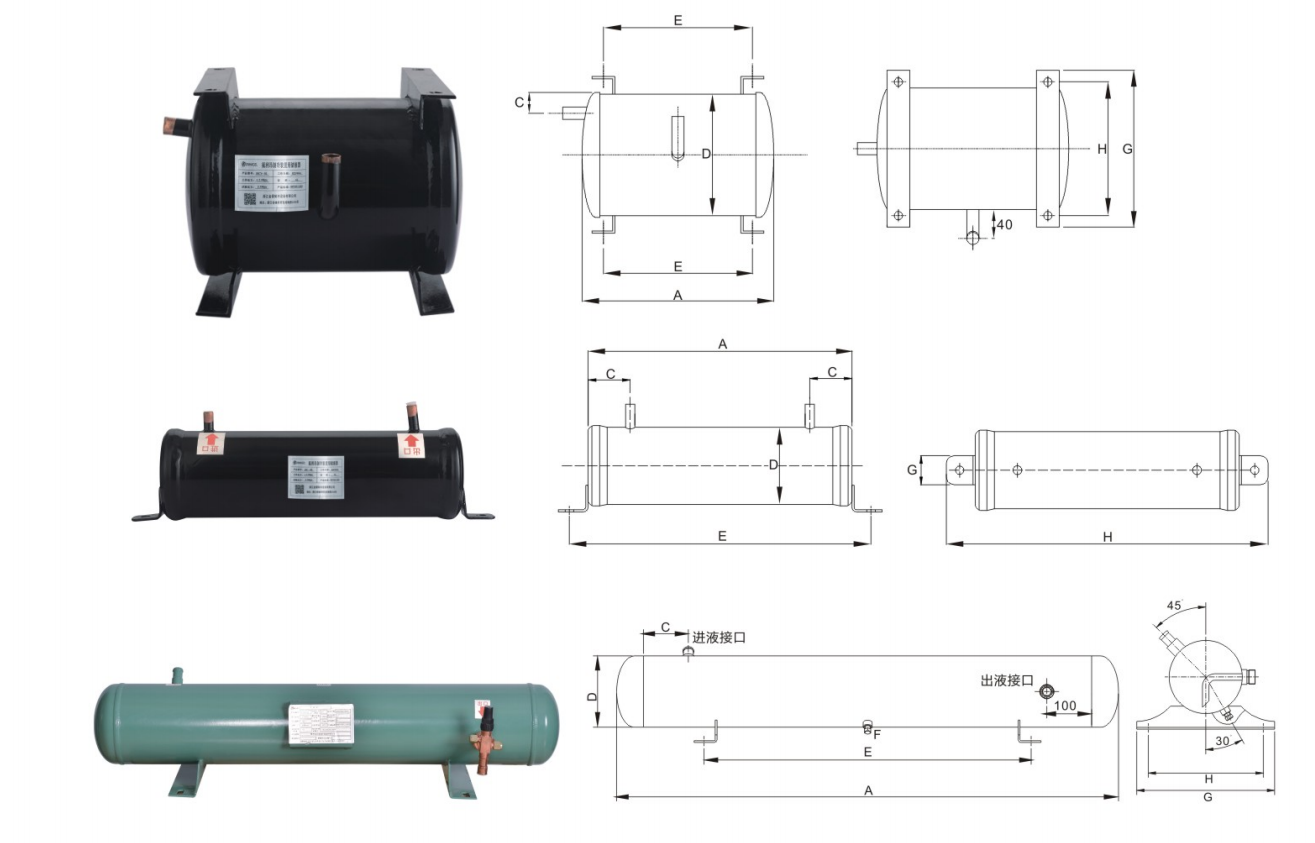

Model | Dimension | ram | Inlet | outle | VolumeL | ||||||
A(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | |||||
JHC-4L | 345 | 55 | φ102 | 395 | / | 40 | 425 | / | 12 | 12 | 4 |
JHC-6L | 250 | 30 | φ159 | 190 | 1 | 220 | 190 | 220 | 16 | 16 | 6 |
JHC-3HP | 700 | 60 | φ159 | 350 | 1/4" | 300 | 250 | 300 | 16 | 12 | 12 |
JHC-5HP | 800 | 60 | φ159 | 480 | 1/4" | 300 | 250 | 300 | 16 | 12 | 14 |
JHC-8HP | 900 | 100 | φ159 | 540 | 1/4" | 300 | 250 | 340 | 19 | 16 | 15 |
JHC-10HP | 1000 | 100 | φ159 | 630 | 1/4" | 300 | 250 | 340 | 19 | 16 | 16 |
JHC-15HP | 1100 | 100 | φ159 | 730 | 1/4" | 300 | 250 | 380 | 22 | 19 | 20 |
JHC-20HP | 1200 | 100 | φ159 | 830 | 1/4" | 300 | 250 | 380 | 25 | 19 | 24 |
JHC-25HP | 920 | 100 | φ219 | 540 | 1/4" | 350 | 305 | 380 | 25 | 19 | 30 |
JHC-30HP | 1120 | 100 | φ219 | 730 | 1/4" | 350 | 305 | 380 | 28 | 22 | 40 |
JHC-35HP | 1320 | 100 | φ219 | 950 | 1/4" | 350 | 305 | 380 | 28 | 22 | 45 |
JHC-40HP | 1470 | 100 | φ219 | 1000 | 1/4" | 350 | 305 | 380 | 35 | 22 | 50 |
JHC-50HP | 1140 | 100 | φ273 | 800 | 3/8" | 380 | 320 | 400 | 35 | 28 | 60 |
JHC-60HP | 1360 | 100 | φ273 | 1000 | 3/8" | 380 | 320 | 400 | 35 | 28 | 70 |
JHC-70HP | 1500 | 100 | φ273 | 1150 | 3/8" | 380 | 320 | 400 | 42 | 35 | 80 |
JHC-80HP | 1200 | 100 | φ325 | 830 | 3/8" | 380 | 320 | 400 | 54 | 42 | 90 |
JHC-90HP | 1350 | 100 | φ325 | 950 | 3/8" | 380 | 320 | 400 | 54 | 42 | 100 |
Ningbo Ouyu Import & Export Co., Ltd. is the exporting branch of Briliant Refrigeration Equipment Co., Ltd. It is a manufacturer and factory specializing in the research, development, and design of large-scale refrigeration equipment, with more than 100 talented employees, including masters, researchers, engineering, and technical engineers.
As a professional OEM/ODM/OBM Liquid Receiver suppliers and Liquid Receiver company with more than 30 years, Ouyu has multiple modern industrial factories equipped with advanced production and processing equipment and complete manufacturing processes. We sell various brands of compressors, condensers, evaporators, condensing units, large and medium-sized parallel units as well as refrigeration accessories with good quality and competitive prices.
We have a complete production line and our products have been awarded ISO9001:2008 quality system certification, CE certification, National Industrial Product Manufacture Licence and Combined Refrigerated Agricultural Machinery Certificate.
