Product Category

Cold storage customization

Feature

Cold Storage Board With Good Heat Insulation Performance Of Lght Polyurethane As Theinner Core Materjal, Ouut.Side By Color Steel Plate, Stainless Steel Plate Splnted Storage Board, Can Reduce The Heattransfer Due To The Tempera.Ture Difference Between Inside And Outside,In Order To Acheve The Maximum Efficiency Of The Freezing, Refrigerationsystem.
Cold Storage Plate Thickness Specifications 50,75, 100,120,150, 200, 250mm
The size specification of cold storage board : the standard width of the hook refrigerator board is 1000mm, the standard width of the machine board is 1140mm, and the standard width of the roof board is 1140mm.

( in addition: according to your special requirements can be customized)

CONTACT Download Catalog

Prev: No previous article

Next: Cold Room

Technical specification
About us
Get an inquiry

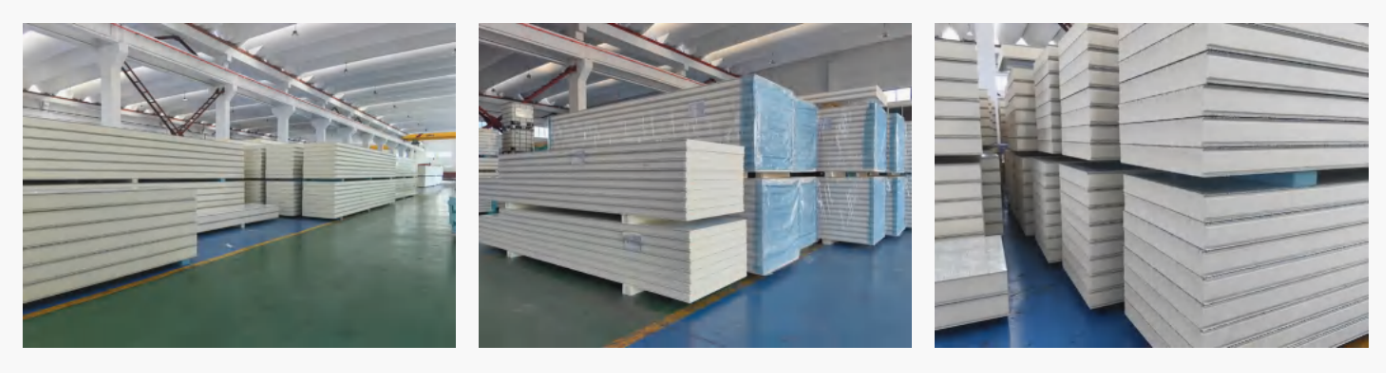

Polyurethane sandwiched panels are of 100% polyurethane insulation, which is constructed by being foamed in place with retarded polyurethane using high pressure. Average density is 45kg/m³.
The standard panel width is 960mm, the maximum lengths of panels are provided 6m till now. Also the thickness can reach 100mm/150mm.
Besides the standard ones, customized panels are also available. As for the surface material, you can choose either one among stainless steel plate, painted galvanized mild steel and embossing aluminum plate.

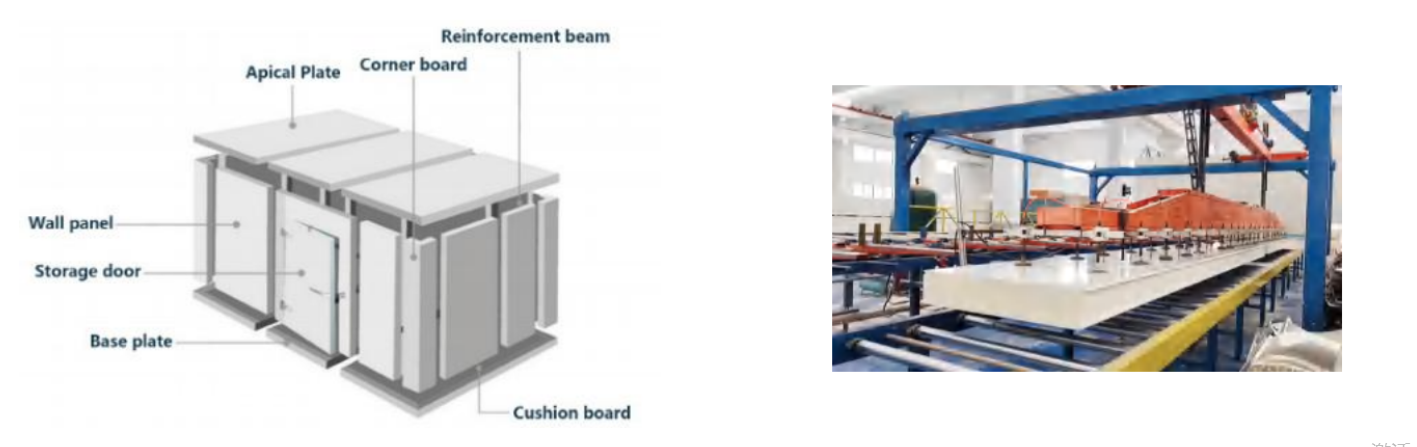

Every panel consists of tongue and groove construction and can be tightened by a number of eccentric fasteners, which may be screwed easily with a hexagonal key.

Thickness

Temperature

difference

Wall panel

height(Max)

Top plate
height(Max)

Applicable cold storage temperature(℃)

℃

-5

-10

-15

-20

-25

-30

-35

-40

-45

-50

-55

4.5

3.8

✔

100

4.5

✔

150

6.5

✔

180

6.5

7.1

✔

200

7.6

✔

250

100

7.5

8.1

✔
