Sight Glass

Feature
CONTACT Download Catalog
  • Technical specification
  • About us
  • Get an inquiry

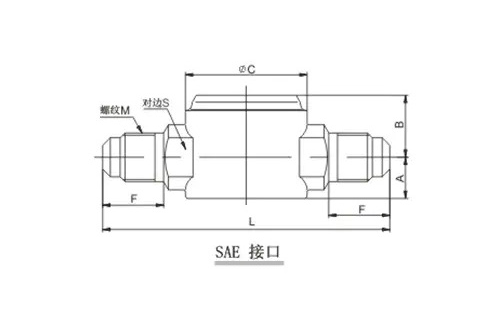

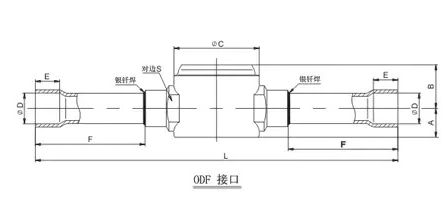

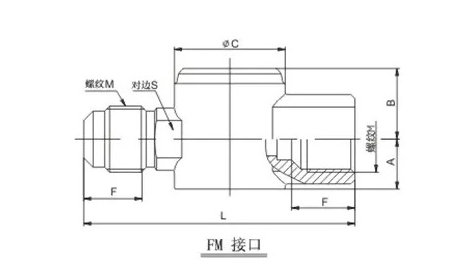

Model             Size  Connection  A B C D E F L S Thread

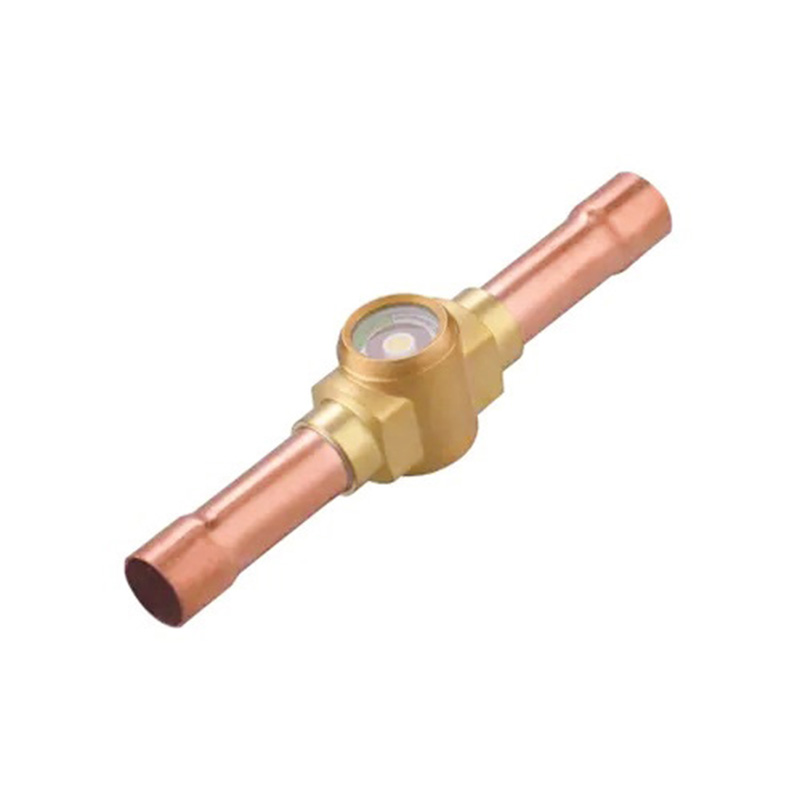

8200-04 1/4" ODF 8.5 14.5 26.5 6.5 7 27 100 14 N/A

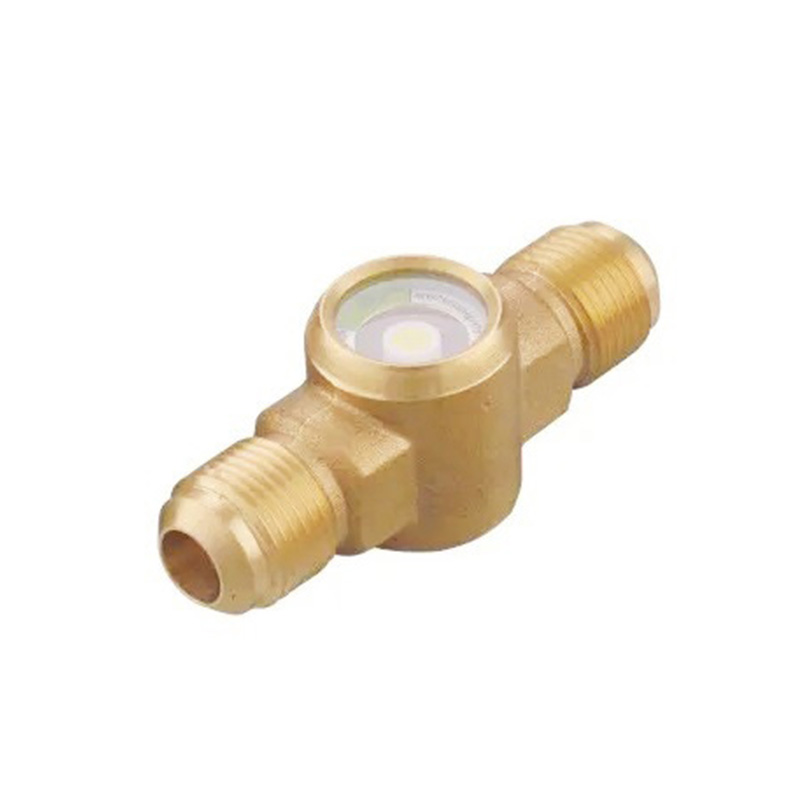

8201-04 SAE N/A N/A 14 64 7/16-20UNF

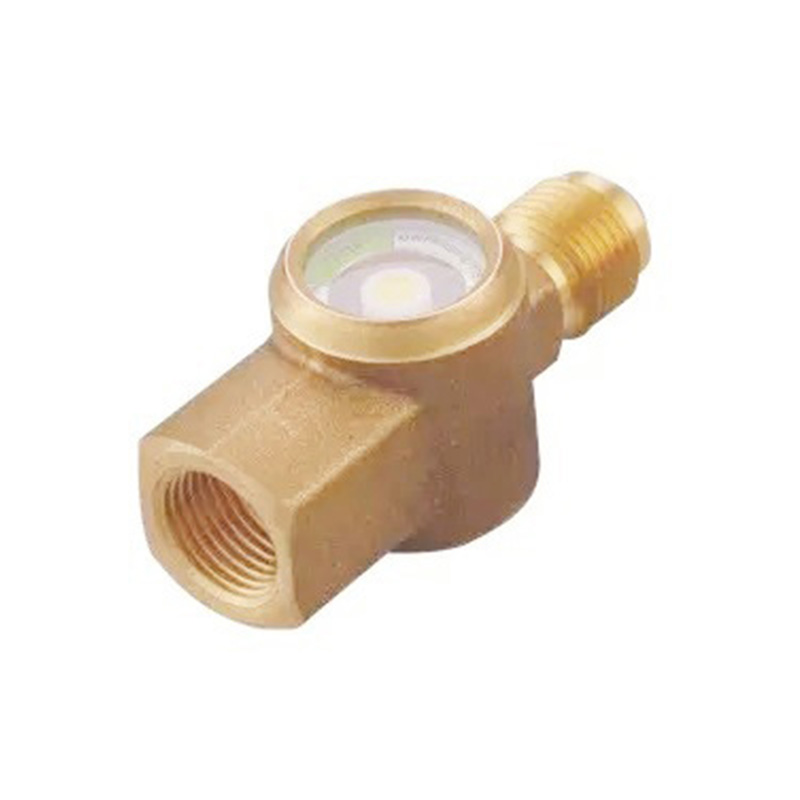

8202-04 FM 9.5 15 12 59
8200-06 3/8" ODF 8.5 14.5 10.1 8 36 118 N/A
8201-06 SAE N/A N/A 17 70 5/8-18UNF
8202-06 FM 12 17 15 65
8200-08 1/2" ODF 11.5 16.5 12.8 10 46 144 19 N/A
8201-08 SAE N/A N/A 19 78 3/4-16UNF
8202-08 FM 13.5 18 18 70
8200-10 5/8" ODF 13 18 16.1 14 49 150 22 N/A
8201-10 SAE N/A N/A 20 78 7/8-14UNF
8200-12 3/4" ODF 14 20 31.5 19.1 16 51 166 24 N/A
8201-12 SAE N/A N/A 23 94 1-1/16-14UNF
8200-14 7/8" ODF 15.5 21.5 22.3 17 54 172 27 N/A
8200-18 1-1/8" ODF 18.5 23.5 28.7 18 69 212 34 N/A
