High performance zero maintenance fan motor
- Multi-voltage
- High efficiency
- Quiet operation
- Low vibration
- Can replace 5W Shaded Pole motor
- Low Cost

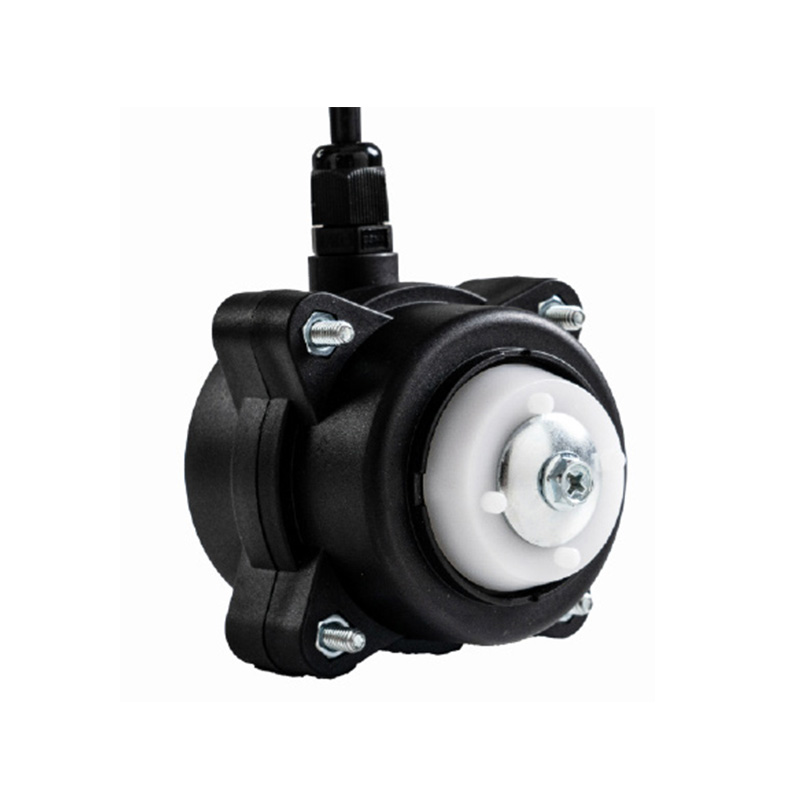

EC4806 Motors
Prev: EC4810 Motors
Next: Shaded Pole Motors
- Technical specification
- About us
- Get an inquiry
| Model | EC4806 |
| Input voltage range | AC 100-240V 50V/60Hz |
| Output power range | 1-6W |
| Speed Range | 300-1800RpmSingle/Dual Speed |
| Input Power Range (Max) | 10W |
| Input Current (Max) | 0.2A@230V |
| Air Flow Direction | Pull |
| Efficiency | Up to 70% depending on load and voltage |
| Voltage protection | 1500VAC/min or 1800VAC/sec 1mA |
| Thermal protection | Electronic protection |
| Insulation Class | H |
| IP rating | IP65 |
| Noise | <45 dBA |
| Winding Resistance(Ω) | 4.1±10Ω |
| Bearing Type | 696 stainless steel ball bearings |
| Operating Temperature | -40℃ -+60℃ |
| Storage temperature range | -40℃ to +80℃ (-40 ℉ lo +176 ℉ ) |
| Refrigerant compatibility | HFC, HC, Co2 (per IEC60335) |
| Weight | 200±30g |
| Approvals | CCC, CE, VDE, UL, ATEX |
