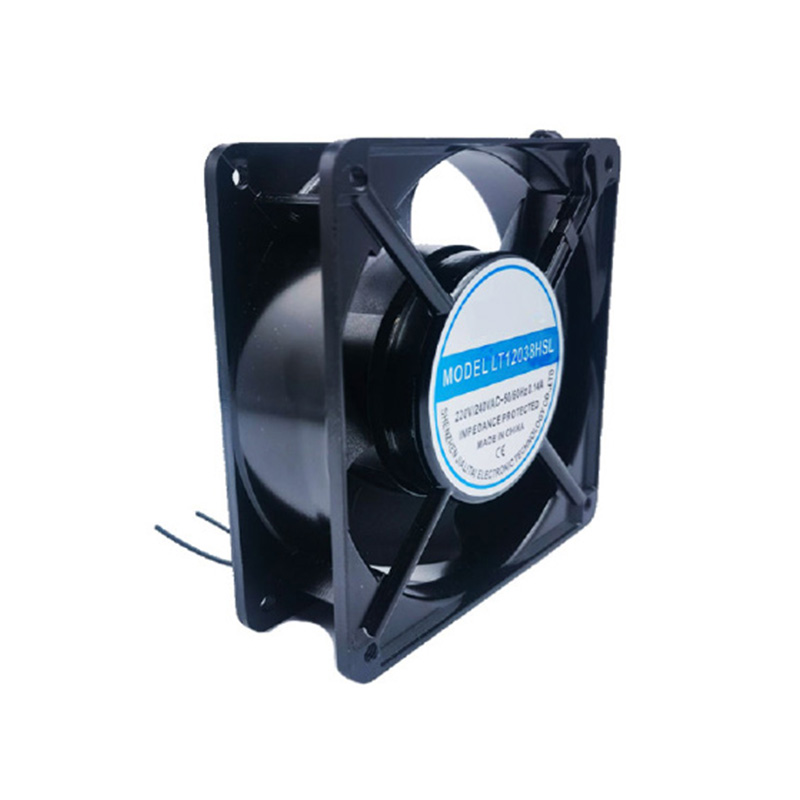

Axial Flow Draft Fan Supplier

Home / Product / Accessories And Tools / Axial Flow Draft Fan
  • Technical specification
  • About us
  • Get an inquiry
Part No. Bearing Voltage (V)  Current (A) Noise dB(A)    Power (W) RPM Airflow(CFM)
BK8025A2HSL Sleeve 220 0.08/0.07 29/33 17.6/15.4 2100/2250 17/21
BK8025A2HBL Ball 220 0.08/0.07 30/34 17.6/15.4 2200/2300 18/22
BK8038A2HSL Sleeve 220 0.07/0.06 31/35 15.4/13.2 2200/2400 30/35
BK8038A2HBL Ball 220 0.07/0.06 32/36 15.4/13.2 2200/2400 30/35
BK9225A2HSL Sleeve 220 0.08/0.07 32/36 17.6/15.4 2000/2150 25/31
BK9225A2HBL Ball 220 0.08/0.07 34/38 17.6/15.4 2050/2200 27/32
BK1025A2HSL Sleeve 220 0.08/0.07 32/36 17.6/15.4 2000/2150 45/55
BK1025A2HBL Ball 220 0.08/0.07 34/38 17.6/15.4 2050/2200 46/56
BK1225A2HSL Sleeve 220 0.08/0.07 33/37 17.6/15.4 2000/2150 58/73
BK1225A2HBL Ball 220 0.08/0.07 34/38 17.6/15.4 2050/2200 60/76
BK1238A2HSL Sleeve 220 0.14/0.12 44/46 30.8/22.0 2600/3000 75/90
BK1238A2HBL Ball 220 0.14/0.12 45/47 30.8/22.0 2600/3000 77/92
