High performance zero maintenance fan motor
- Multi-voltage
- High efficiency
- Quiet operation
- Low vibration
- Can replace 25W Shaded Pole motor
- Low Cost

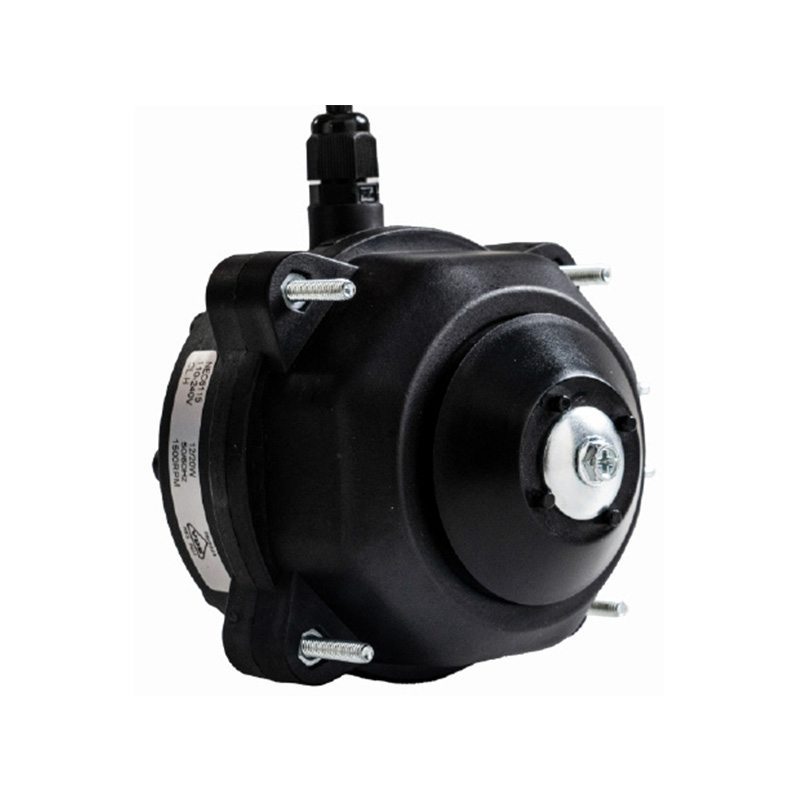

EC6115 Motors
Prev: AC Cross Flow Fan
Next: EC4810 Motors
- Technical specification
- About us
- Get an inquiry
| Modeel | EC6115 |
| Input voltage range | AC 100-240V 50/6OHZ |
| Output power range | 1-21W |
| Speed Range | 300-1800Rpm Single/Dual Speed |
| Input Power Range (Max) | 3OW |
| Input Current (Max) | 0.4A @ 230V |
| Air Flow Direction | Pull |
| Efficiency | Up to 70% depending on load and value |
| Voltage protection | 1500VAC/min or 1800VAc/sec 1mA |
| Thermal protection | Electronic prolection |
| Insulation Class | H |
| IP rating | IP65 |
| Noise | >45 dBA |
| Winding Resistance(Ω) | 3.8±1Ω |
| Bearing Type | 608 stainless steel ball bearings |
| Operating Temperature | -40℃ -+60℃ |
| Storage temperature range | -40℃ to +80℃ (-40 ℉ lo +176 ℉ ) |
| Refrigerant compatibility | HFC, HC, Co2 (per IEC60335) |
| Weight | 500±30 g |
| Approvals | CCC. CE. VDE. UL, ATEX |
